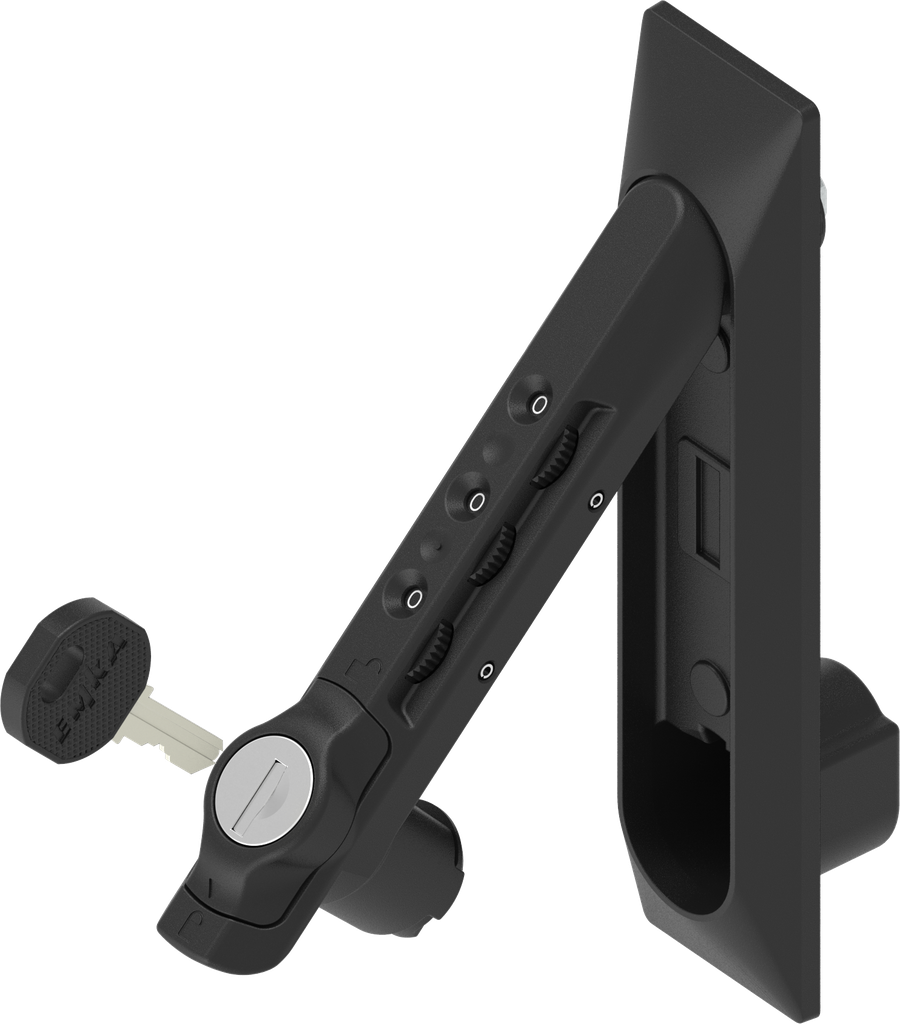

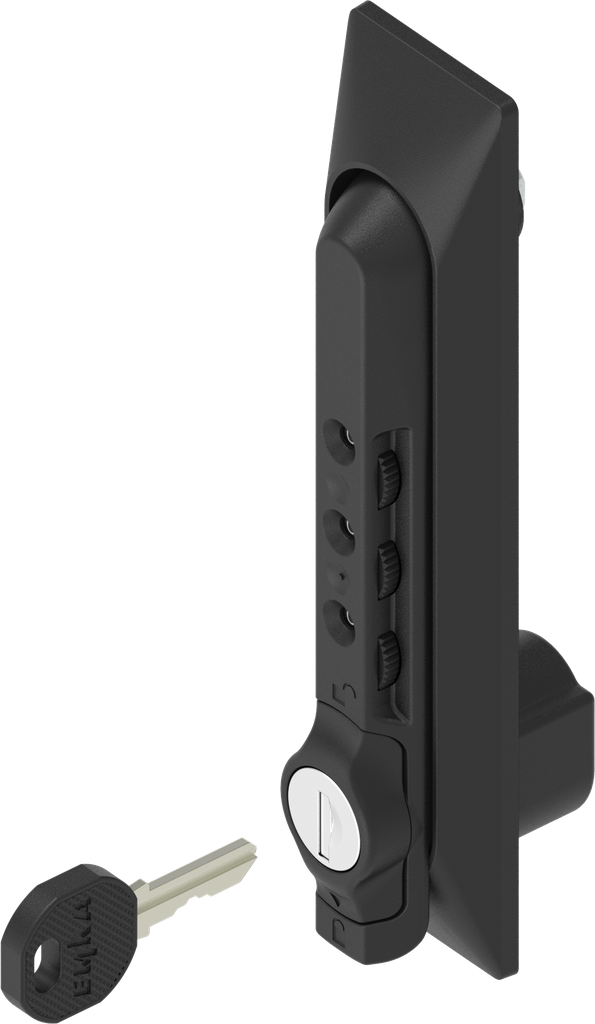

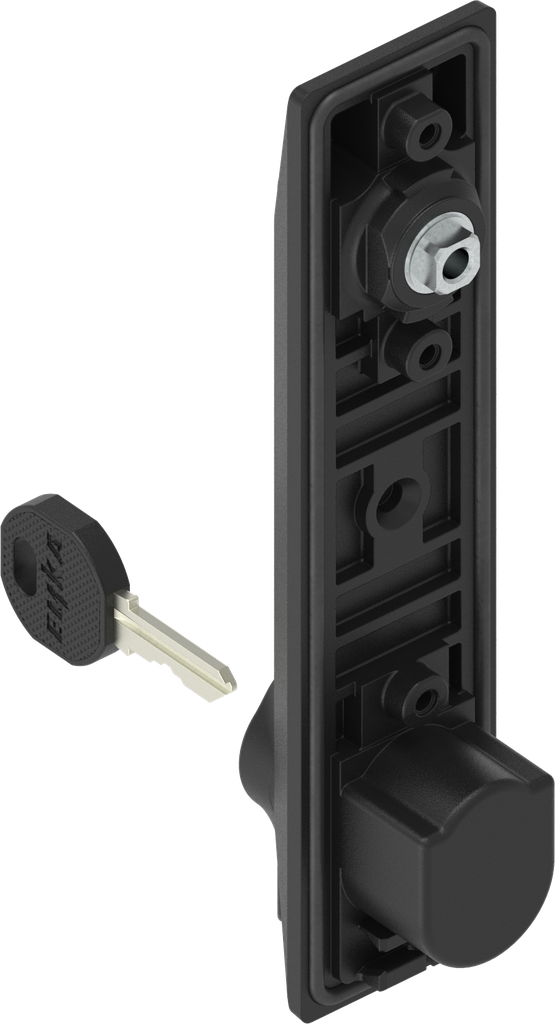

Swinghandle 1155 with combination lock and keyed EK 333, Polyamide GF black
Swinghandle 1155 with universal dish with combination lock and keyed different, Polyamide GF black
Swinghandle 1155 with universal dish with combination lock and keyed EK 333, Polyamide GF black; 1155-U1-11
Product information:
Swinghandle with two locking sets

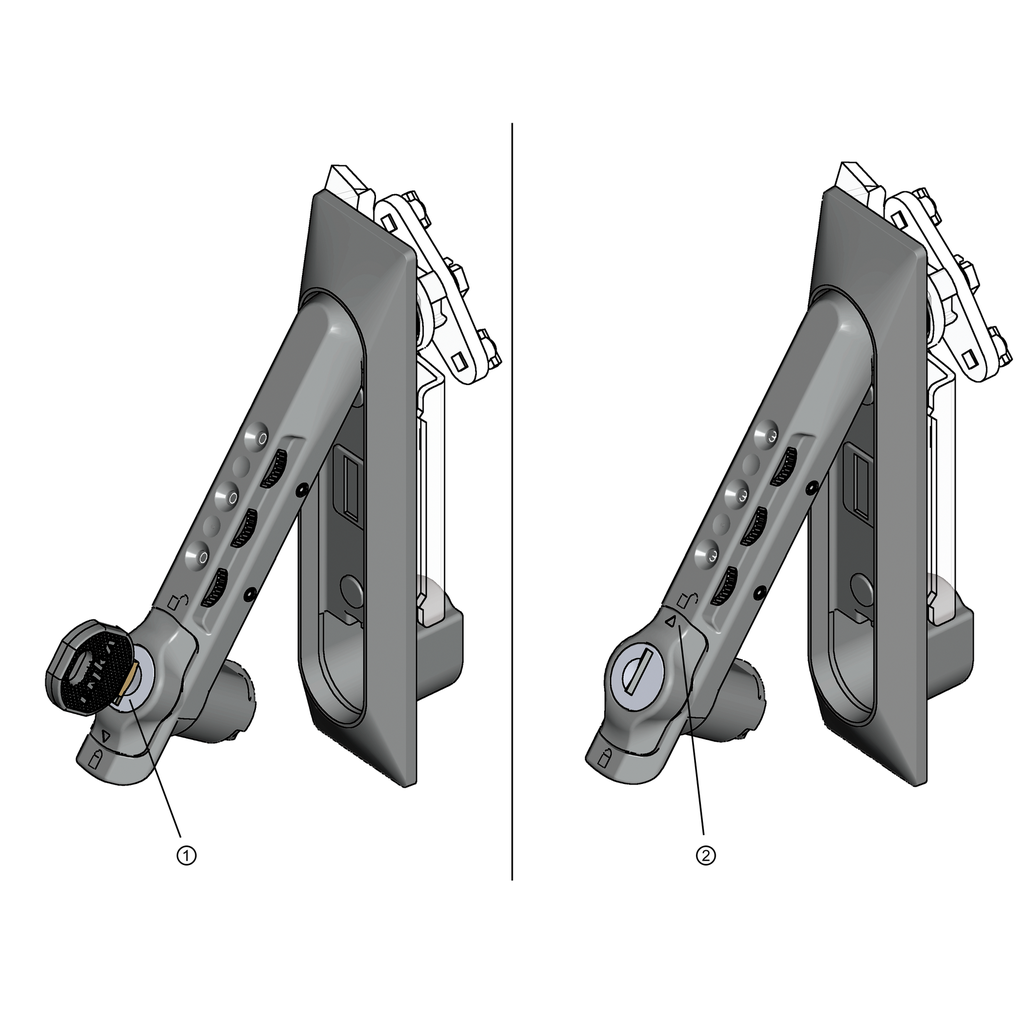

① = Option 1:
Release using round cylinder. Operation as with usual swinghandles of Program 1150. The combination lock remains untouched.
② = Option 2:
Release using combination lock and wing knob.
The round cylinder remains locked. The arrow on the wing knob indicates the open or closed position.
Please order fixing material separately!

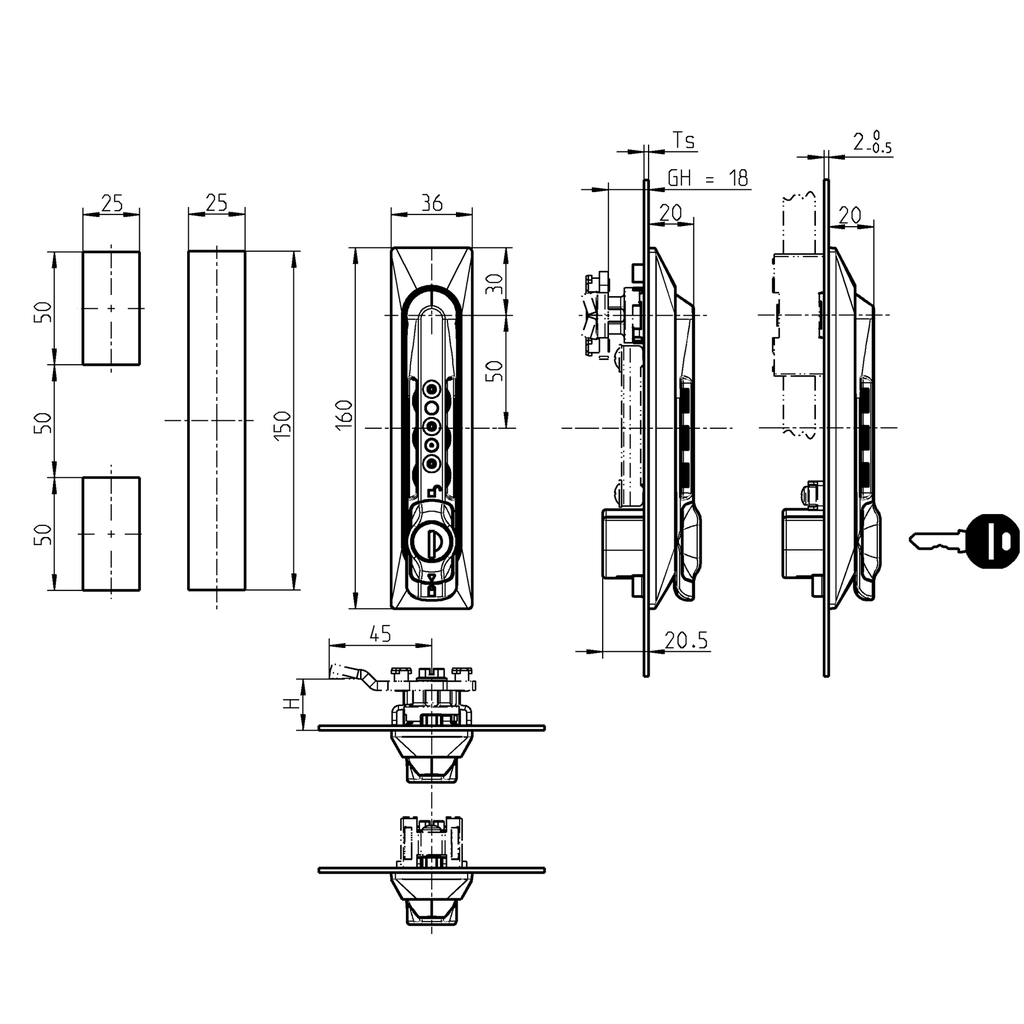

Ts = 1 to 3 mm depending on the fixing material
On request:
- Key of round cylinder not removable in open position
- Other insert
Internal Reference:
1155-U1-11
Product Type:
Swinghandle, Lifthandle
Program:
1155
Catalog sheet:
3C-750
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
Two locking sets, 1-key-operation
Article with property rights:
Yes
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder,Combination lock
Swivel Handle:
20 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
