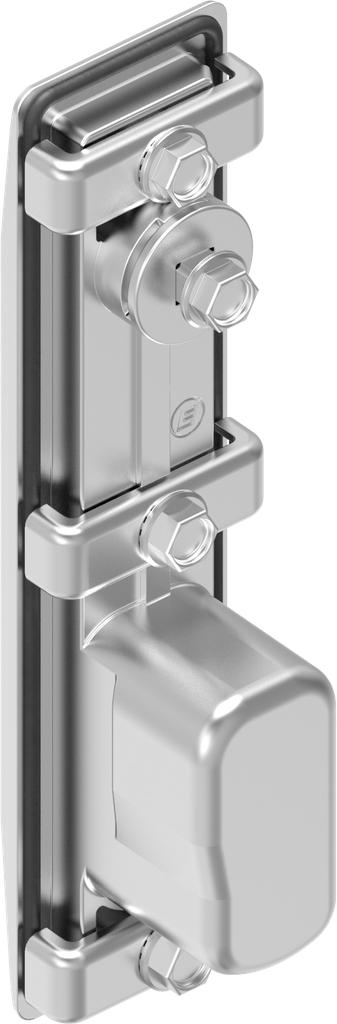

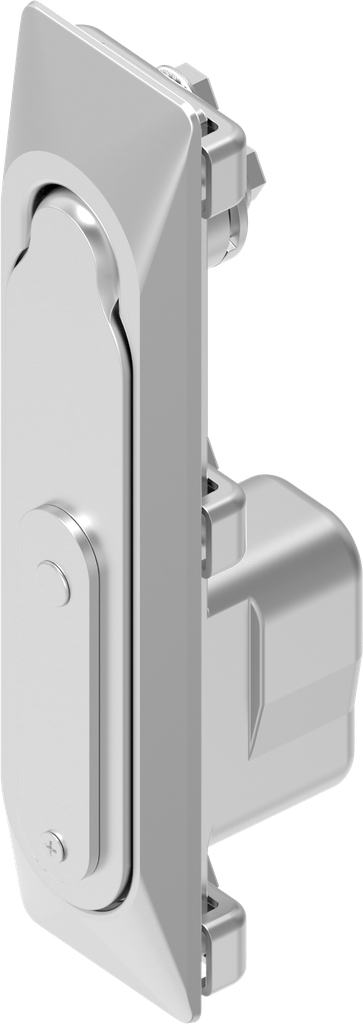

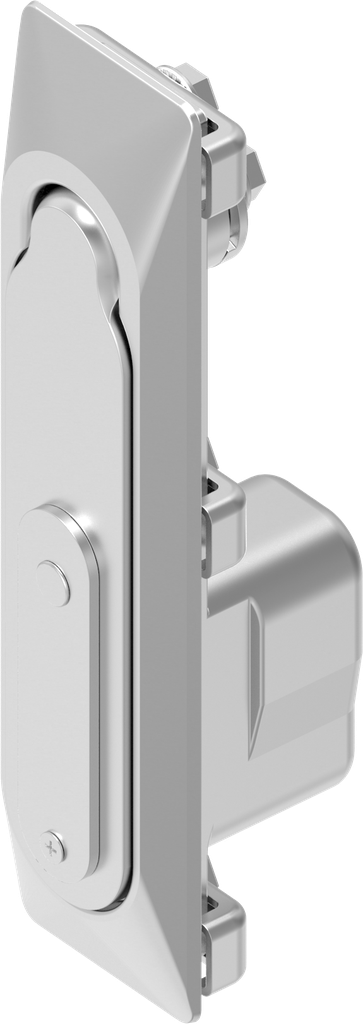

Swinghandle 1154 with RC2 for profile half cylinder 40 mm (A = 30 mm), Stainless steel AISI 316; 1154-U4
Function:
Turn 90° with cam
Assembly instruction:
Resistance class: RC2 DIN EN 1630, achieved by profile half cylinder according to DIN EN 18252-BZ or DIN EN 1303 with resistance class 2 with protection against drilling and pulling. The profile half cylinder should be certified and monitored by PIV CERT or alternatively by a certifying body according to DIN EN ISO/IEC 17065.
Internal Reference:
1154-U4
Product Type:
Swinghandle, Lifthandle
Program:
1154
Catalog sheet:
3C-260
Material of the module :
Stainless steel AISI 316
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
2 mm
Suitable for door thicknesses up to:
3 mm
Test according to RC2 DIN EN 1630 (WK2 DIN V ENV 1630):
Yes
Locking set:
Profile half cylinder A = 30
locking set cover:
Yes
Swivel Handle:
12.5 mm
Pan Handle Length:
180 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam
