Product information:

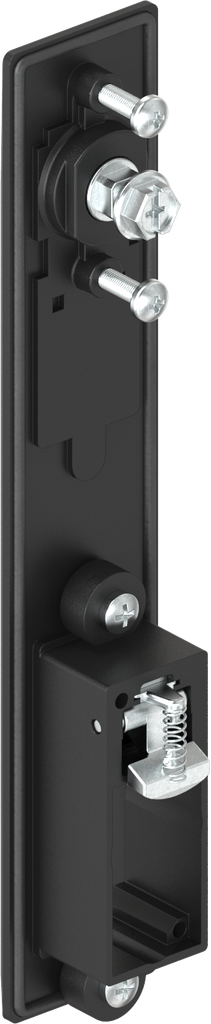

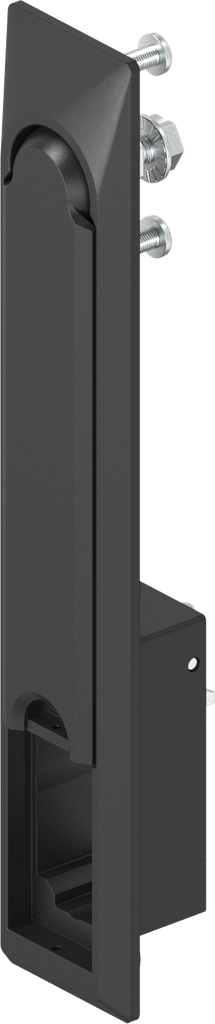

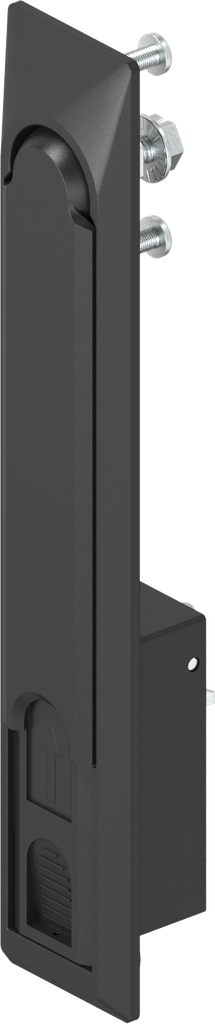

Swinghandle without locking set
Internal Reference:
1151-U3
Product Type:
Swinghandle, Lifthandle
Program:
1151
Catalog sheet:
3C-440
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Door return variable:
Yes
Number of Possible Locking Points:
2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Sealable:
Yes
Locking set modular technology:
Profile half cylinder with cap, A = 30, mounted at the dish,ASSA cylinder with cap, mounted at the dish,KABA cylinder with cap, mounted at the dish,Round cylinder with cap, mounted at the dish,Insert with cap, mounted at the dish,Push button with cap, mounted at the dish
locking set cover:
Yes
Swivel Handle:
9 mm
Pan Handle Length:
200 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Door thickness:
2 mm
Locking components:
Rod control
No Specifications
