Rod control for swinghandle 1150, Zinc die zinc-plated
Swinghandle Eco 1150, keyed different, Polyamide and zinc die black powder-coated

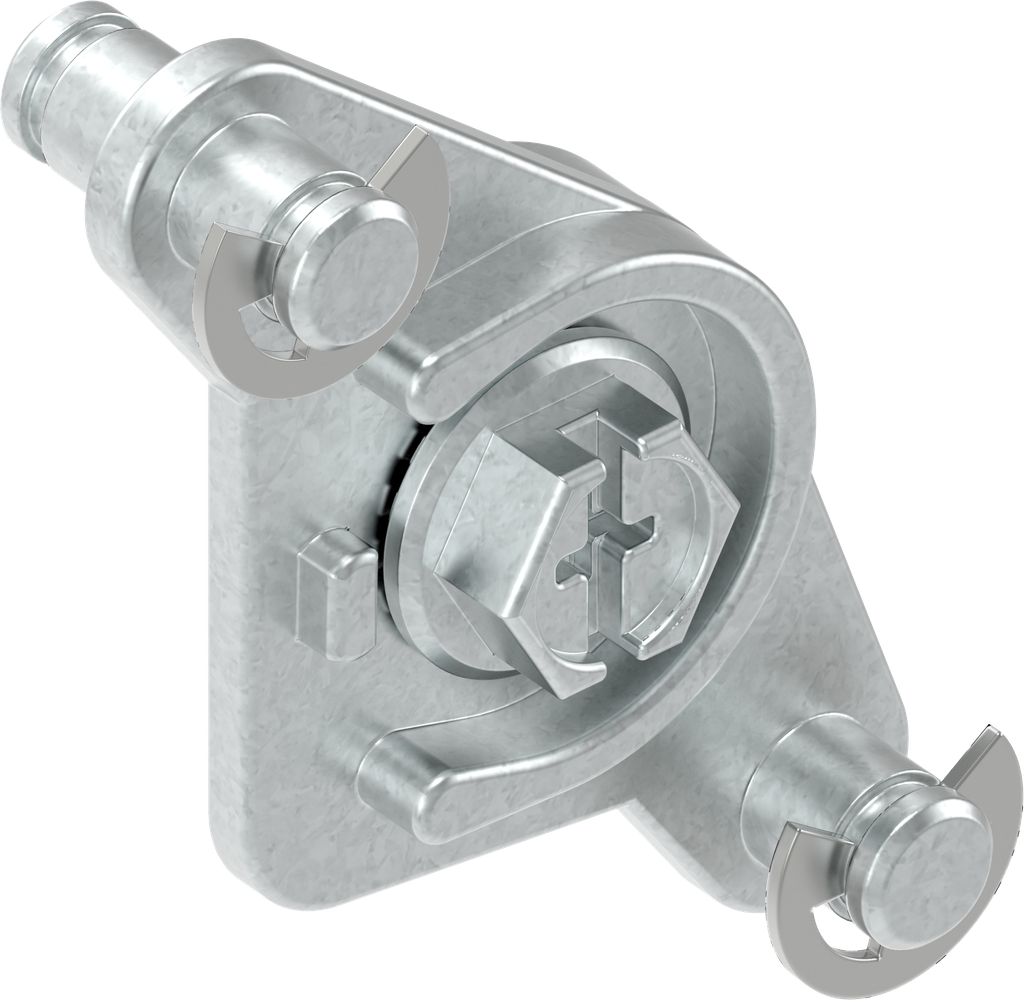

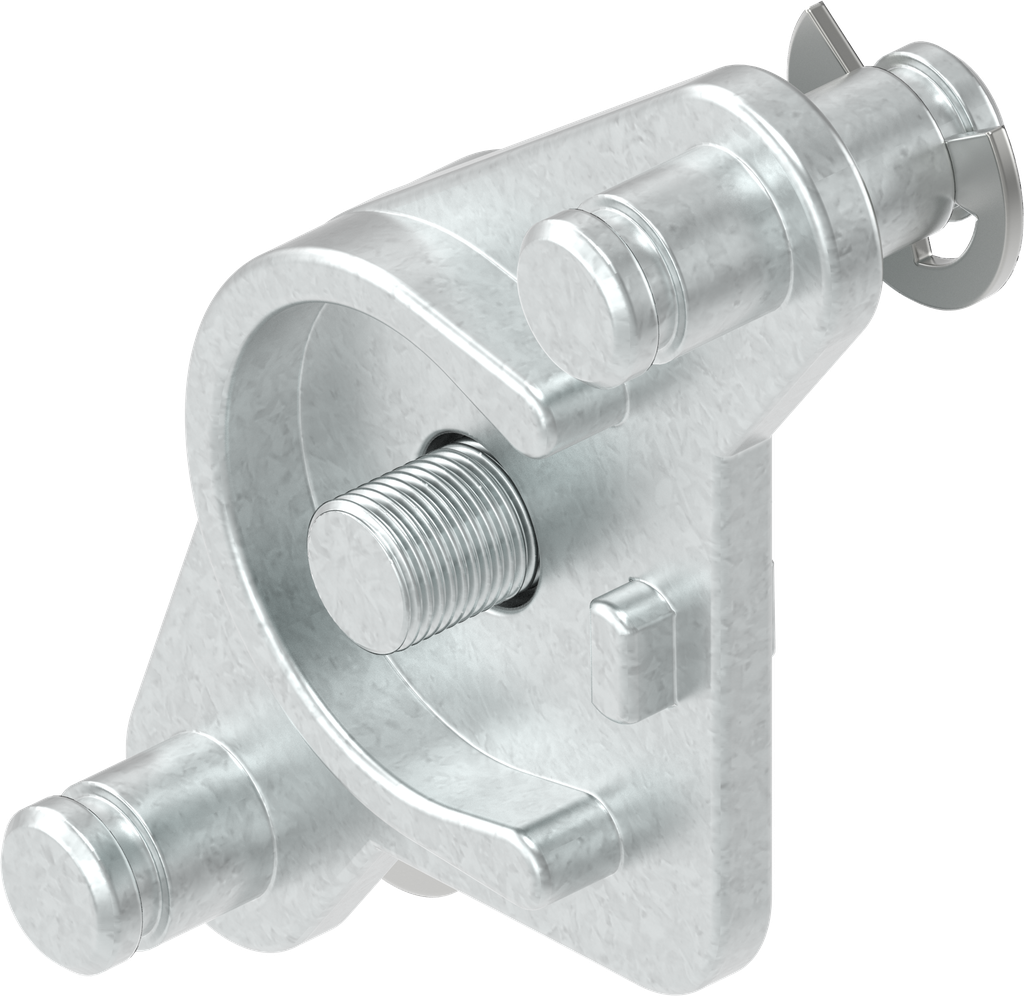

Rod control for swinghandle 1325, Zinc die zinc-plated; 1150-U63-02

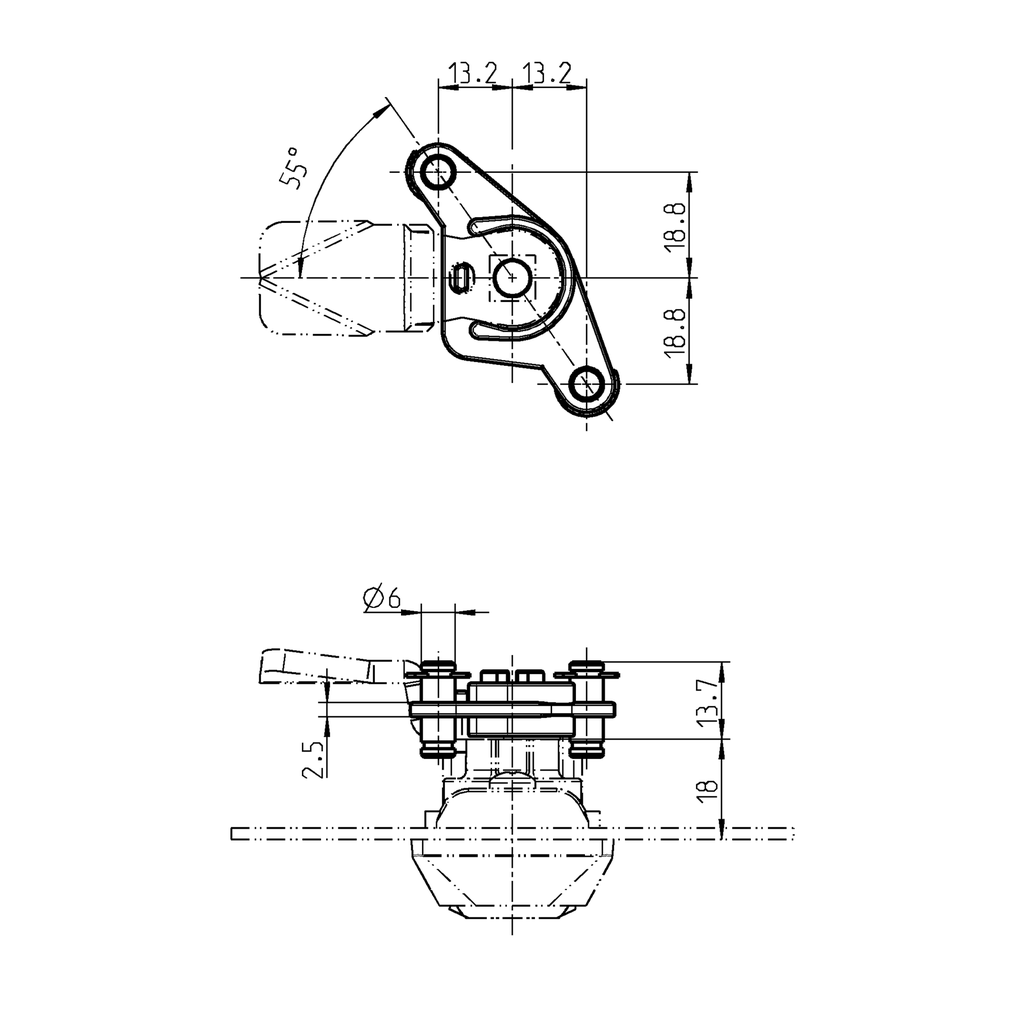

Stroke = 32 mm
No stock item, please ask for availability
Product information:
Attention:
Only cams with catch of steel or stainless steel can be used.
Note:
When using the rod control for the cam, the screw-in depth of the screw is reduced by 2.5 mm.
Internal Reference:
1150-U63-02
Barcode:
1150-u00063-0000002
Product Type:
Rod control
Program:
1150
Catalog sheet:
3YC-190
Material of the module :
Zinc die
Surface of the module:
zinc-plated
Number of Possible Locking Points:
3 point
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 32 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
