Product information:
Attention:
Only cams with catch made of steel or stainless steel can be used.
Note:
When using the rod control for the cam, the screw-in depth of the screw is reduced by 2.5 mm.
Internal Reference:
1150-U63
Barcode:
1150-U00063-0000000

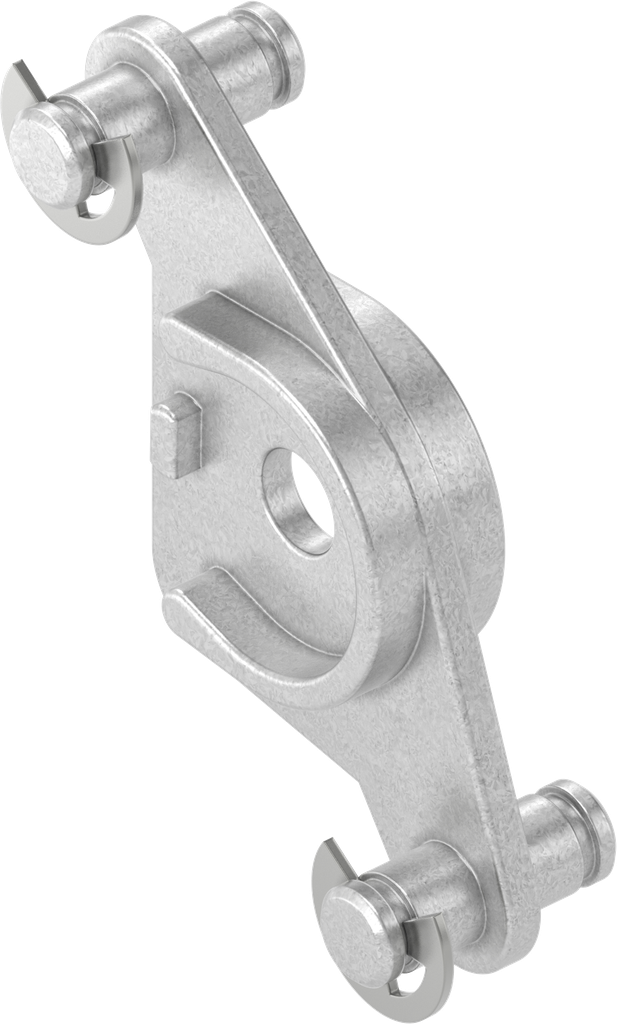

Product Type:

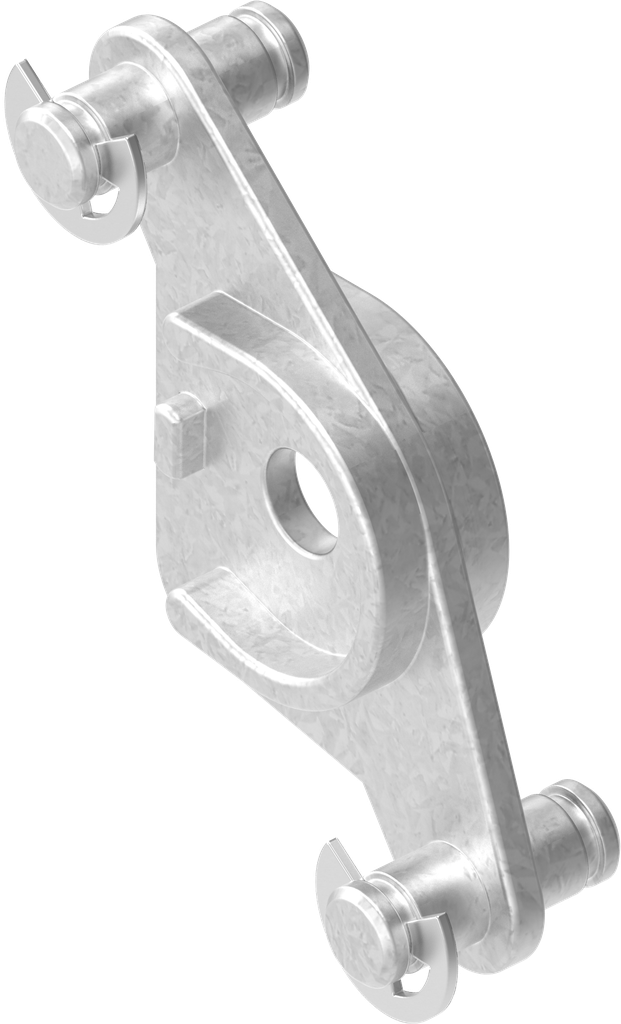

Rod control
Program:
1150
Catalog sheet:
1C-130
Material of the module :
Zinc die
Surface of the module:
zinc-plated
Number of Possible Locking Points:
3 point
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 32 mm
No Specifications
