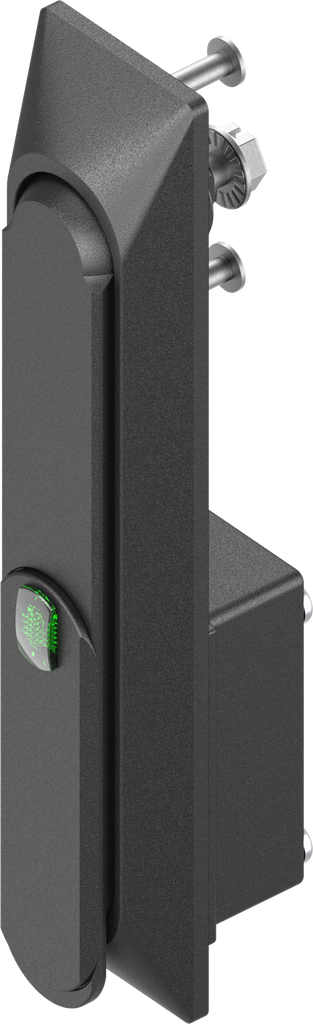

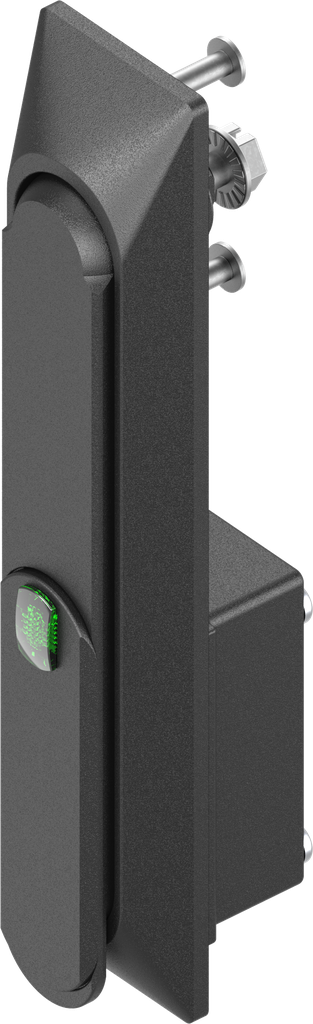

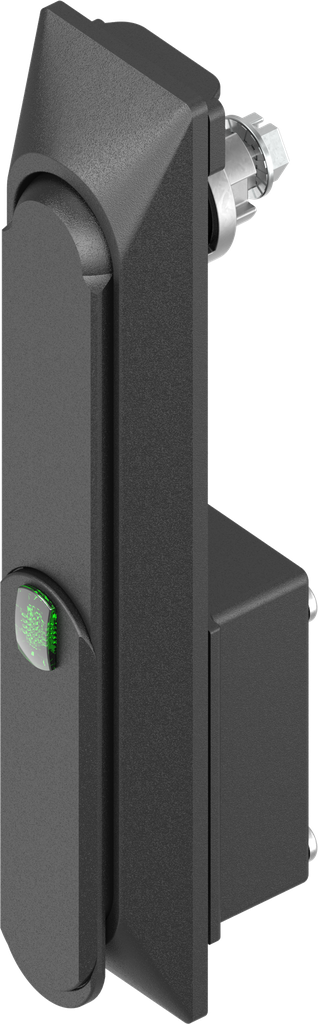

Swinghandle 1150 with electromagnetic release and emergency opening, keyed different, Polyamide and zinc die black powder-coated; 1150-U56-V
with solenoid 12V; for rod control or cam
Product information:

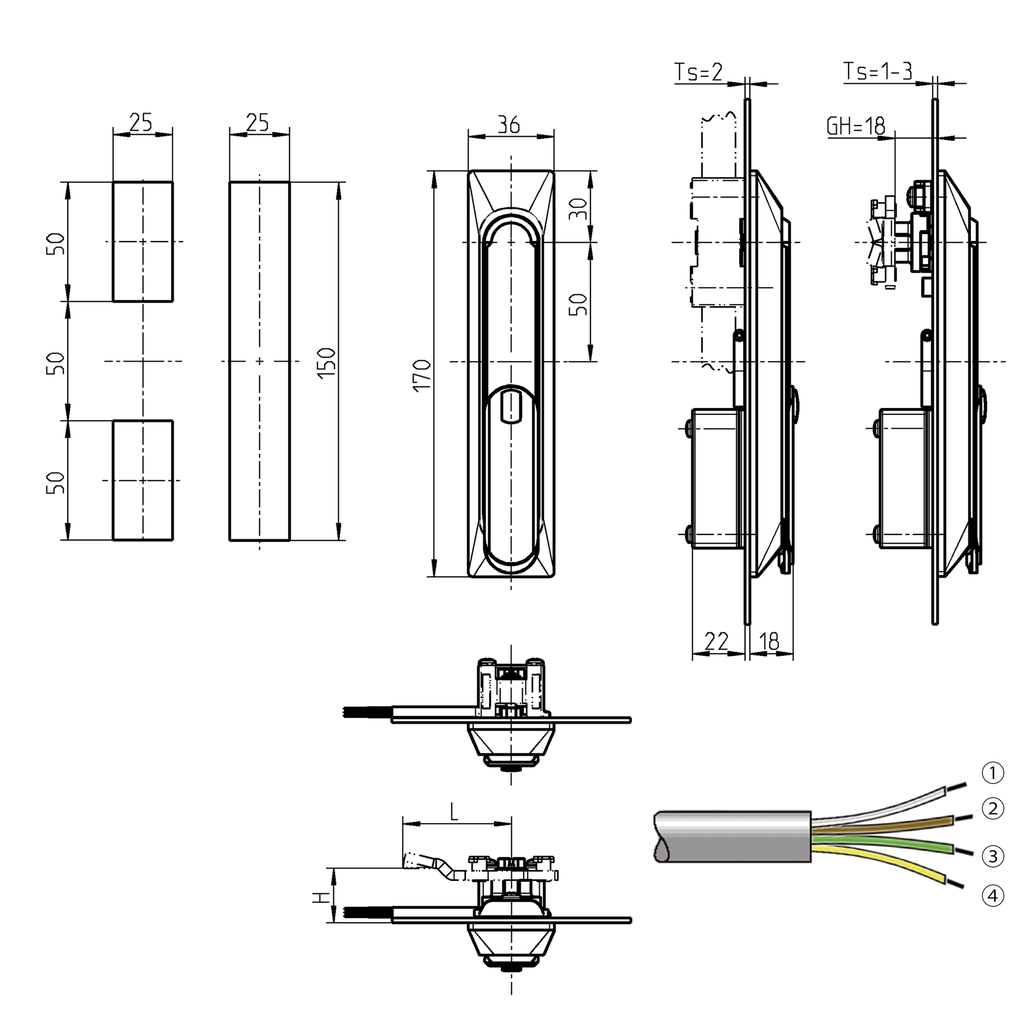

1 = white (+)
2 = brown (-)
3 = green contact
4 = yellow contact
After pushing the handle briefly into the dish, it can be opened.

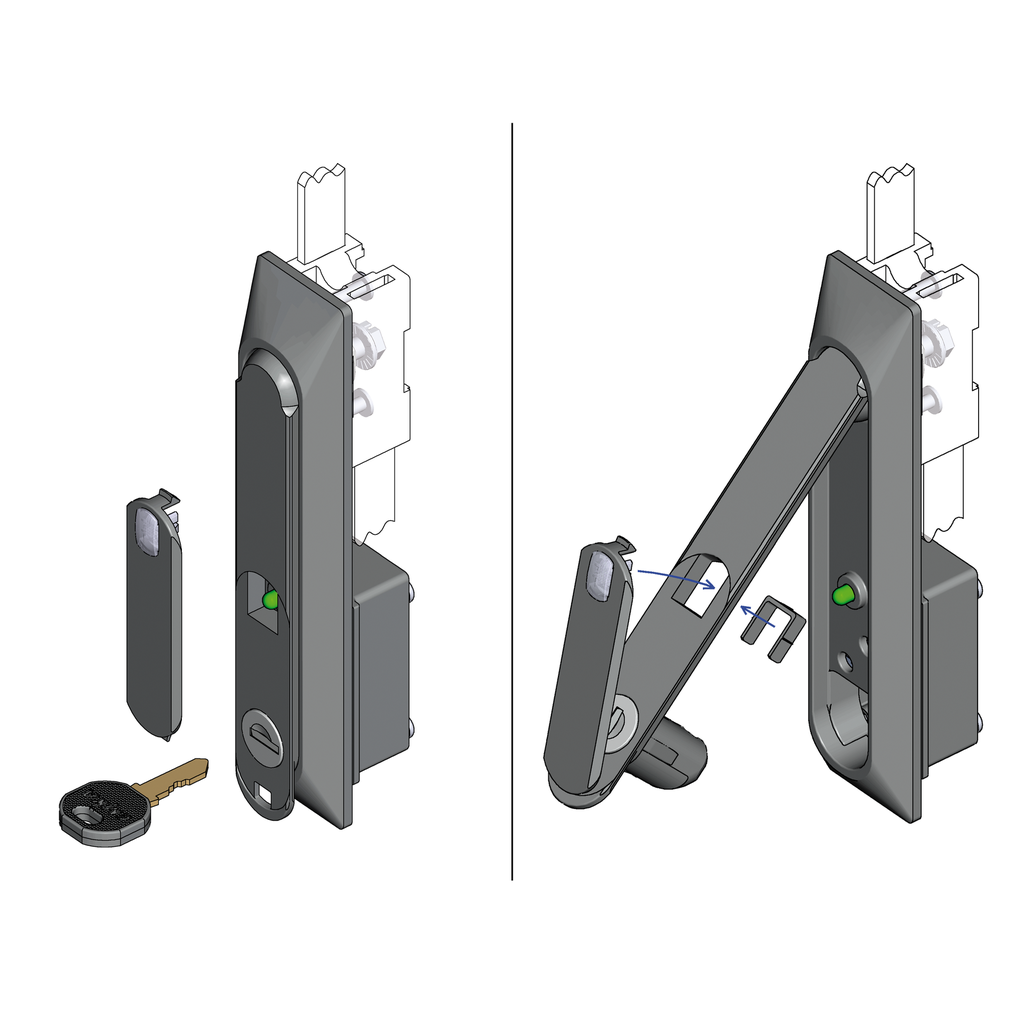

The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The provided key is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.
This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.

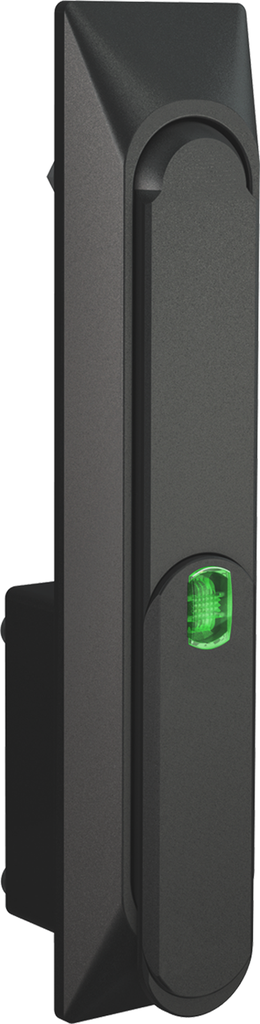

on release of the handle, the LED is illuminated
Function:
This handle is suitable for locking indoor cabinets.
It is released by applying a voltage signal of 12 V DC.
After pushing the handle briefly into the dish, it can be opened.
The integrated reed contact is used for remote monitoring of the handle status. To lock the handle it must be pressed into the dish until the locking mechanism engages. The key provided is used to open the handle in case of power failure. For this purpose the cover on the locking cylinder has to be removed. The cover will be destroyed thereby and must be replaced.
This handle can be connected to modules 3000-U32-02 and 3000-U47-02 or 3000-U47-07.
On release of the handle, the LED is illuminated
