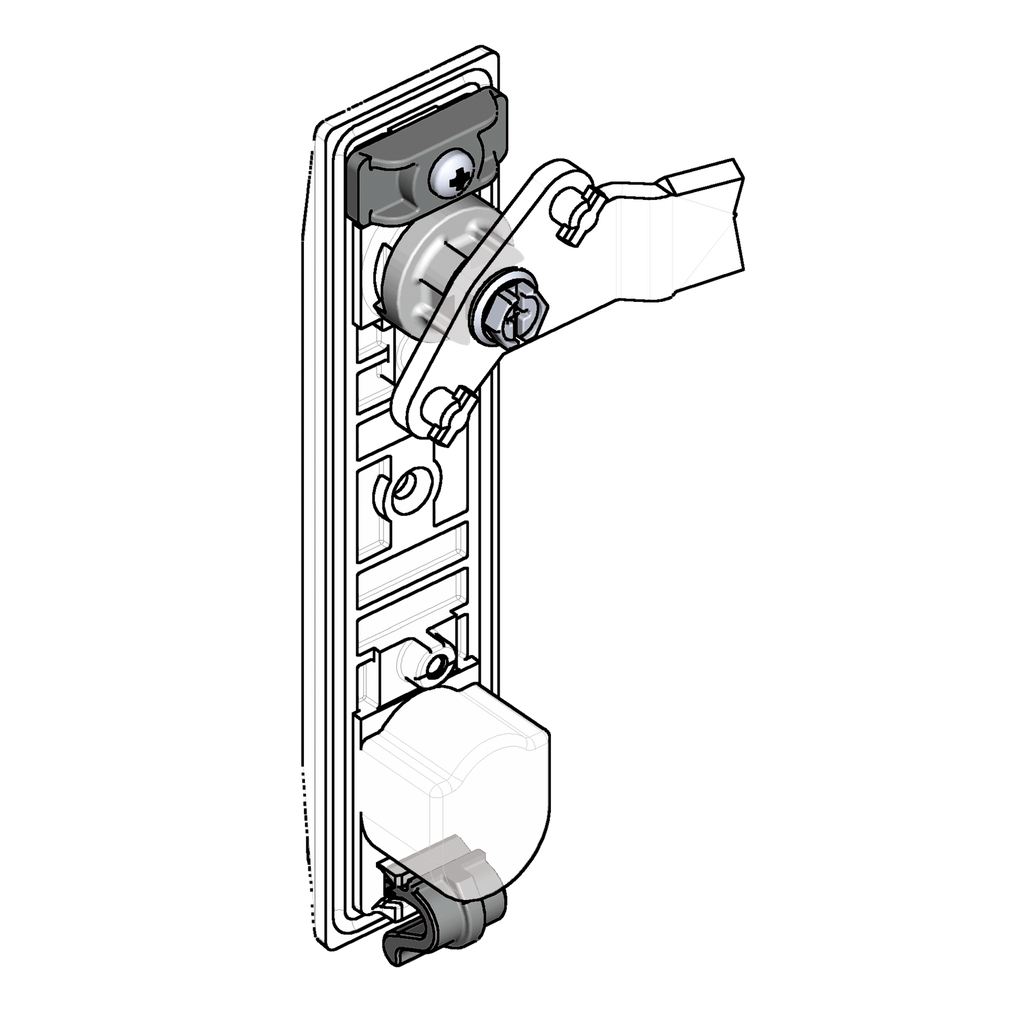

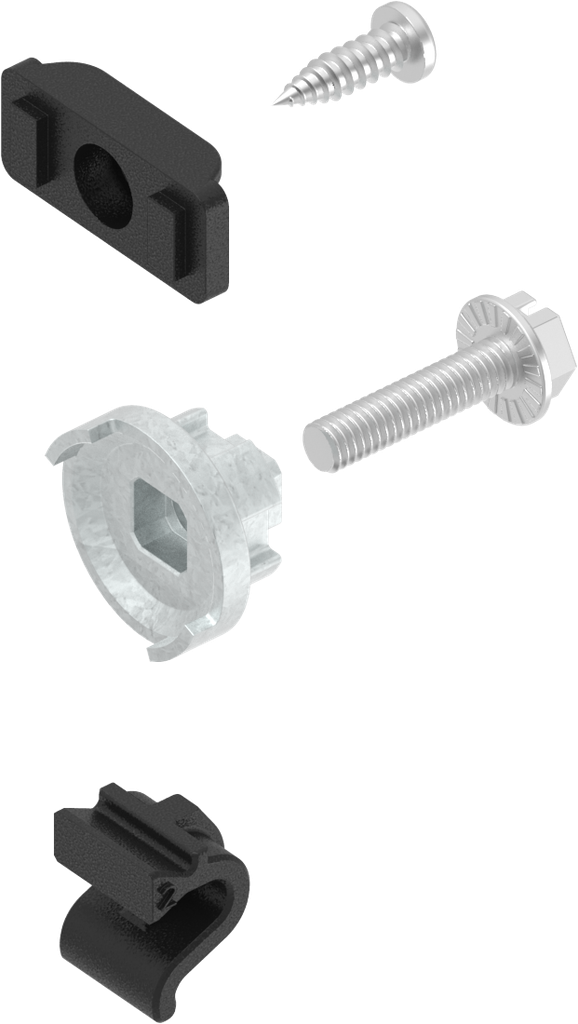

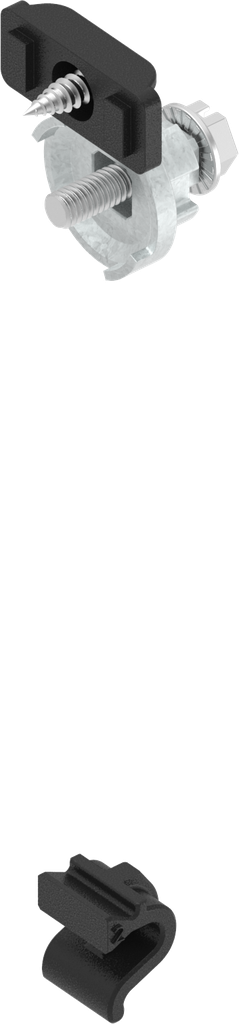

Fixing material hook, bridge, adapter and screws for swinghandle with cam, Polyamide and zinc die; 1150-U50-02

https://www.emka.com/products/1150-u50-02 https://www.emka.com/web/image/product.template/64909/image_1920?unique=5cf92bb

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1150-U50-02
    Product Type: Fixing material for swinghandle
    Program: 1150
    Catalog sheet: 3C-780
    Material of the module : Polyamide and zinc die
    Mounting Positions : Inside the sealing
    Door thickness fixed for cam with inside handle: 2 mm
    Locking components: Cam
    No Specifications
    View All Products
    Cam
    Rod control
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3C-780
    CAD file | 1150-U50-02_igs
    CAD file | 1150-U50-02_stp
