Swinghandle 1150, keyed different, Polyamide and zinc die black powder-coated
Fixing material hook, bridge, adapter and screws for swinghandle with cam, Polyamide and zinc die

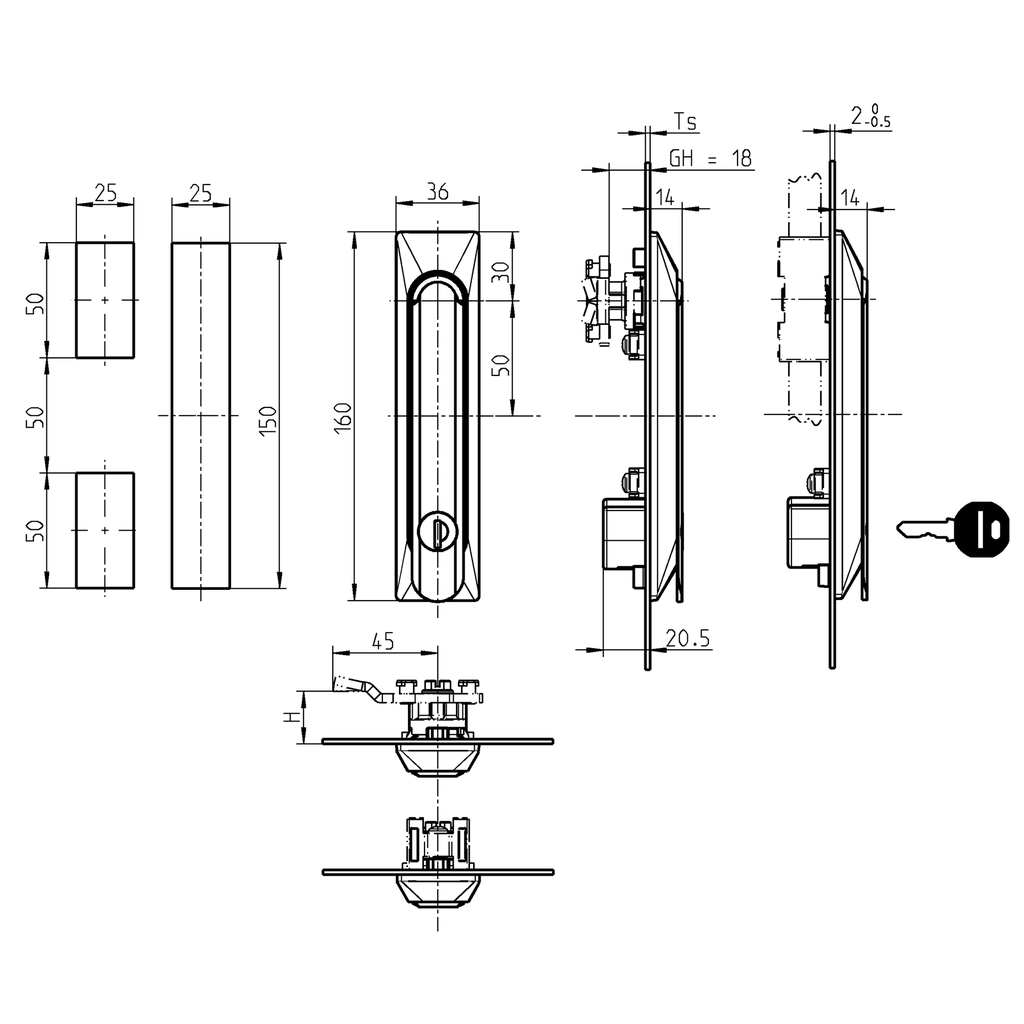

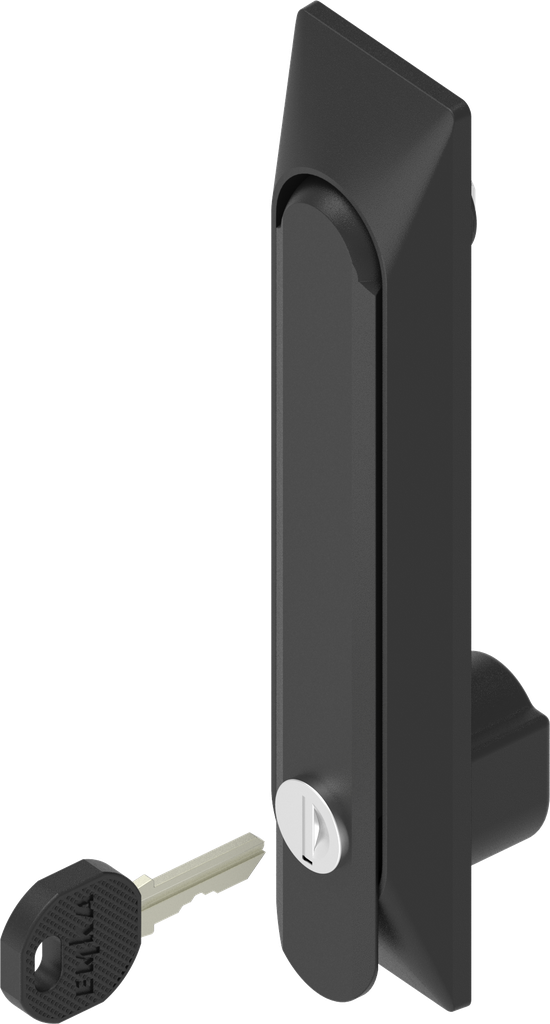

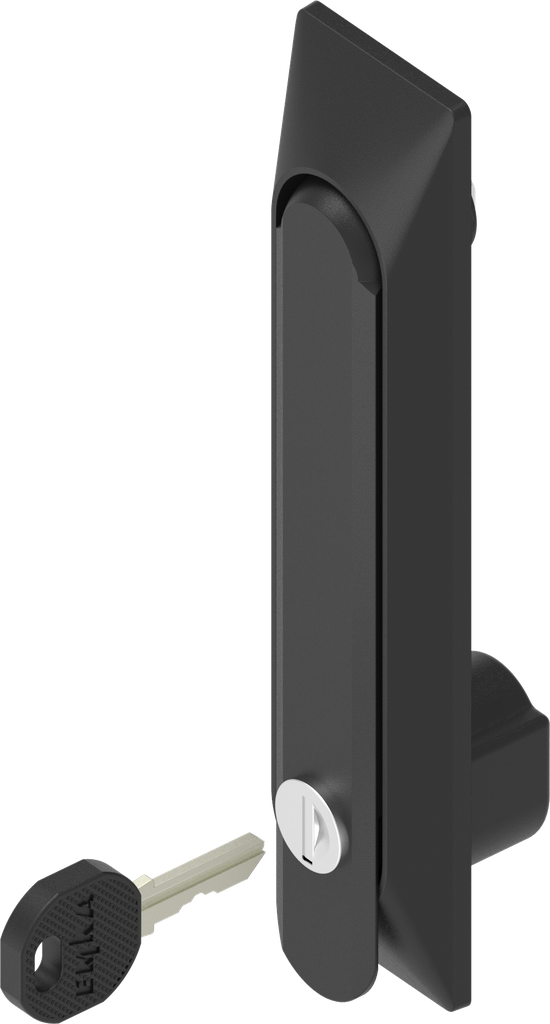

Swinghandle 1150 with universal dish, keyed different, Polyamide and zinc die black powder-coated; 1150-U34-22
Product information:
Attention:
Please order fixing material separately!
Ts = 1 to 3 mm depending on the fixing material
On request:
- Key of round cylinder not removable in open position
Internal Reference:
1150-U34-22
Product Type:
Swinghandle, Lifthandle
Program:
1150
Catalog sheet:
3C-740
Material of the module :
Polyamide and zinc die
Surface of the module:
black powder-coated
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
GH Mass:
18 mm
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Swivel Handle:
14 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
No Specifications
