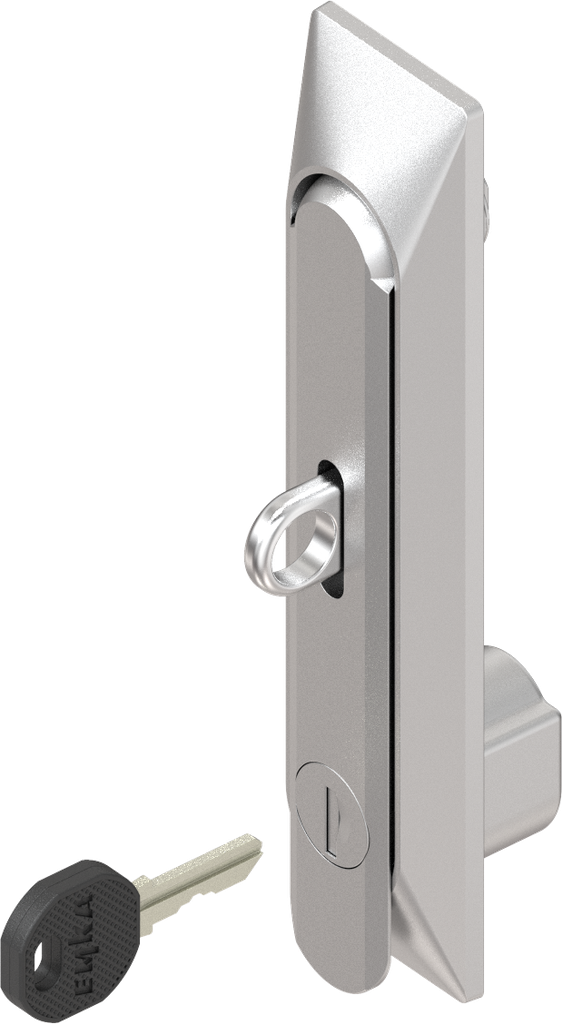

Swinghandle 1150 with universal dish, keyed EK 333, and for padlock, Stainless steel AISI 316; 1150-U33-13PH
Internal Reference:
1150-U33-13PH
Product Type:
Swinghandle, Lifthandle
Material:
Stainless steel AISI 316
Program:
1150
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set and for padlock
Mounting Positions :
Inside the sealing,Outside the sealing
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
3 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Padlock
Swivel Handle:
30 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Cam,Rod control
Padlock Art:
Padlock with shackle dimension Ø 12
