Chest handle keyed EK 333, Polyamide GF black

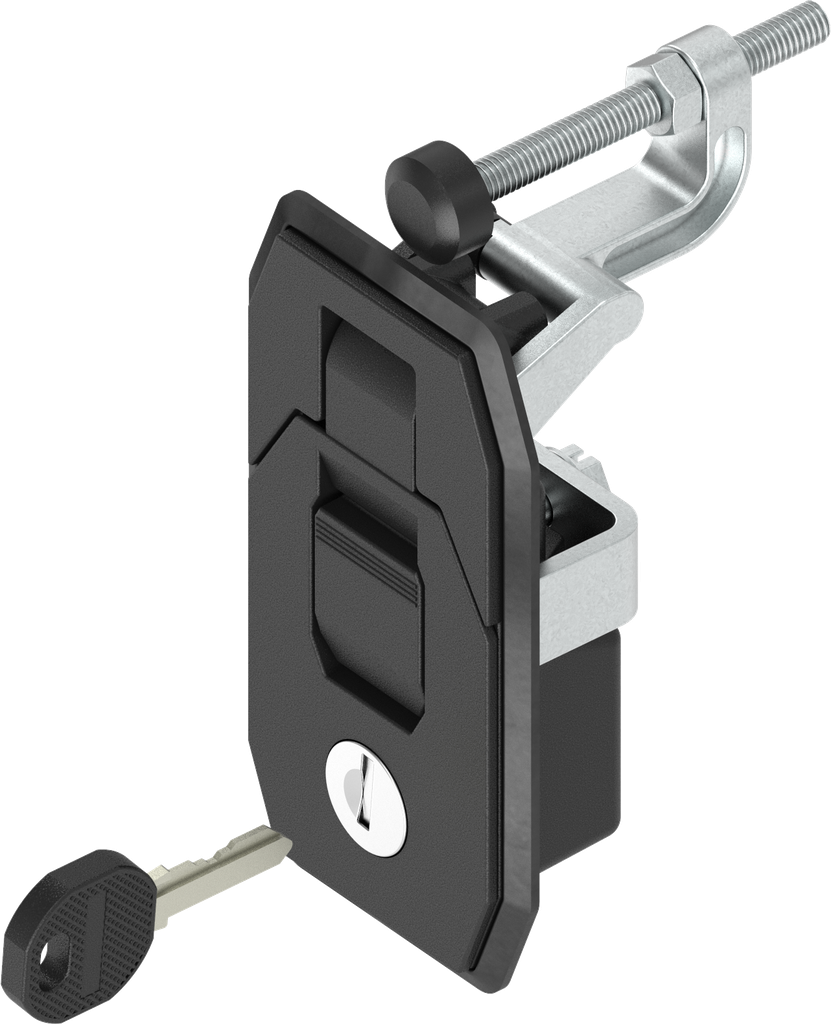

Chest handle keyed EK 333, Zinc die black powder-coated
Product information:

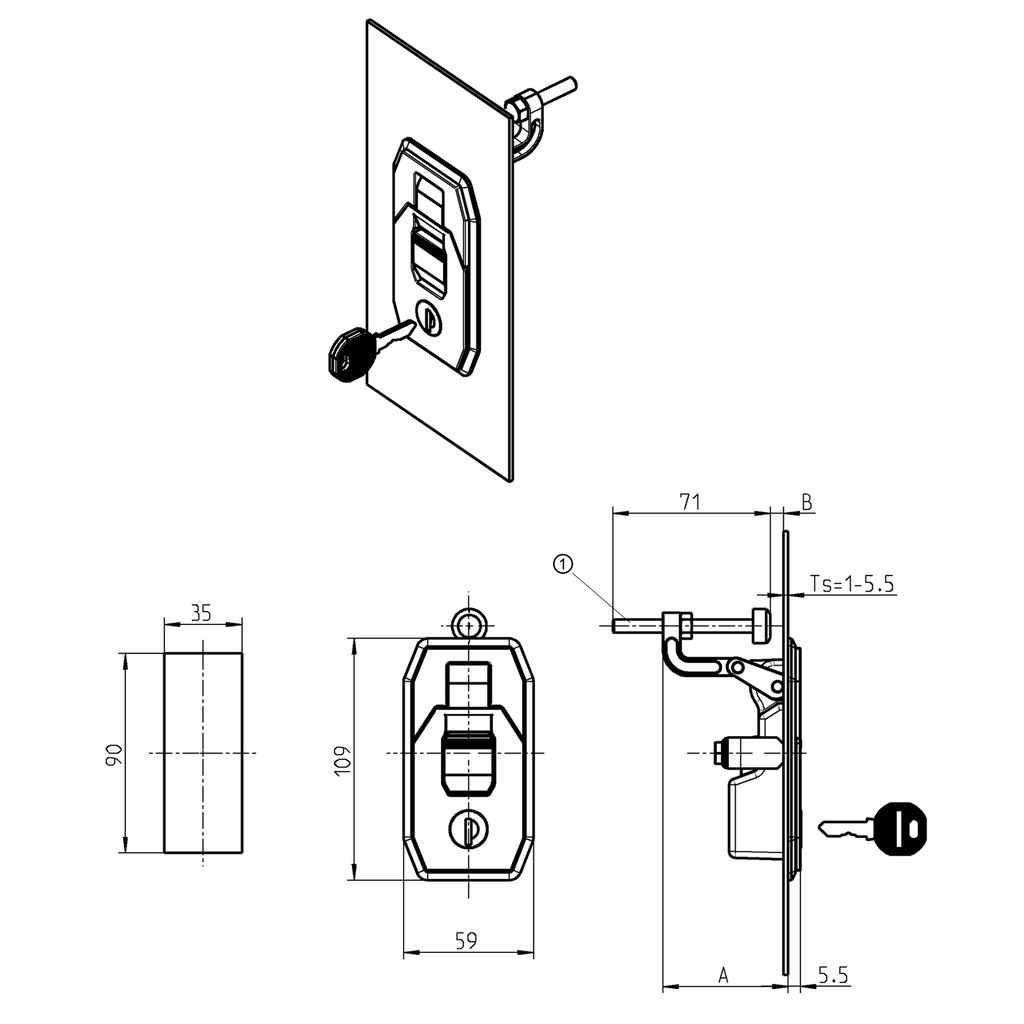

1 = Adjustable locking pin
Chest handles with different lever arm on request
Internal Reference:
1130-U7
Product Type:
Other latch
Program:
1130
Catalog sheet:
8A-170
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Adjustable 2D:
Yes
Dimension A:
57 mm
Fixing type of housing :
clamp-on / clip fix
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
5.50 mm
Round Cylinder Type:
EMKA EK, keyed EK 333
Locking set:
Round cylinder
Door Version :
Left,Right
Lock Type:
Chest handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
