Profile half cylinder with round cylinder keyed EK 333, Zinc die
Round rod L = 400 mm, Steel zinc-plated

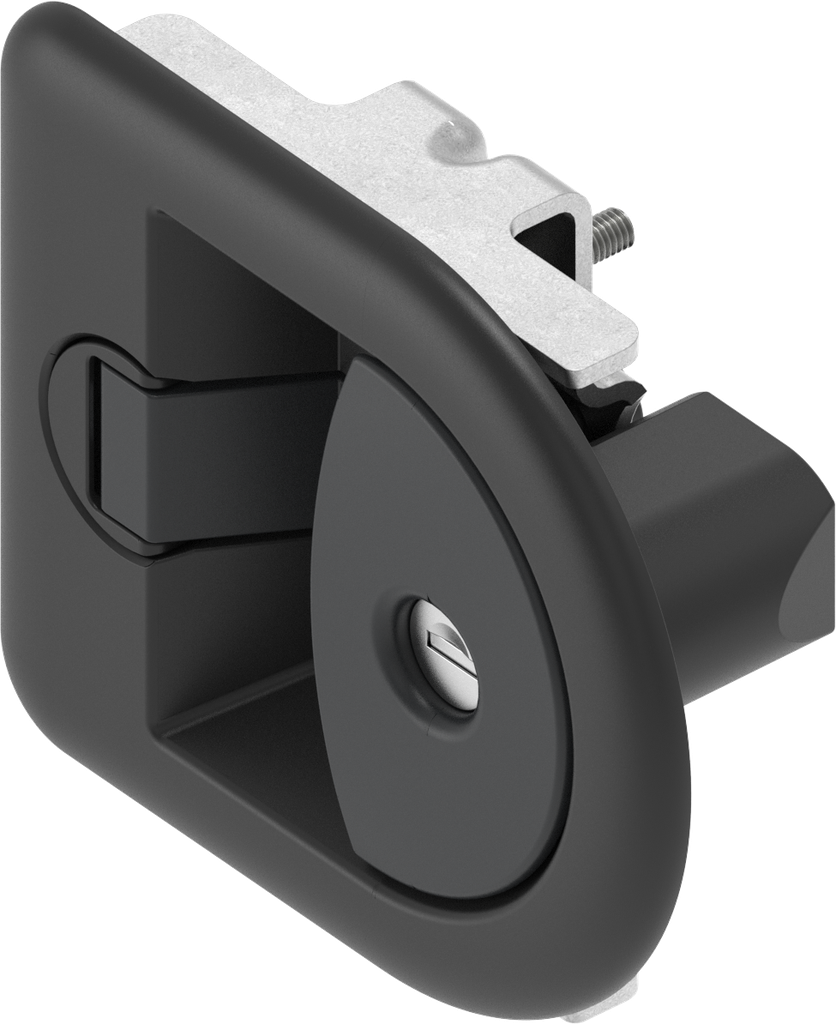

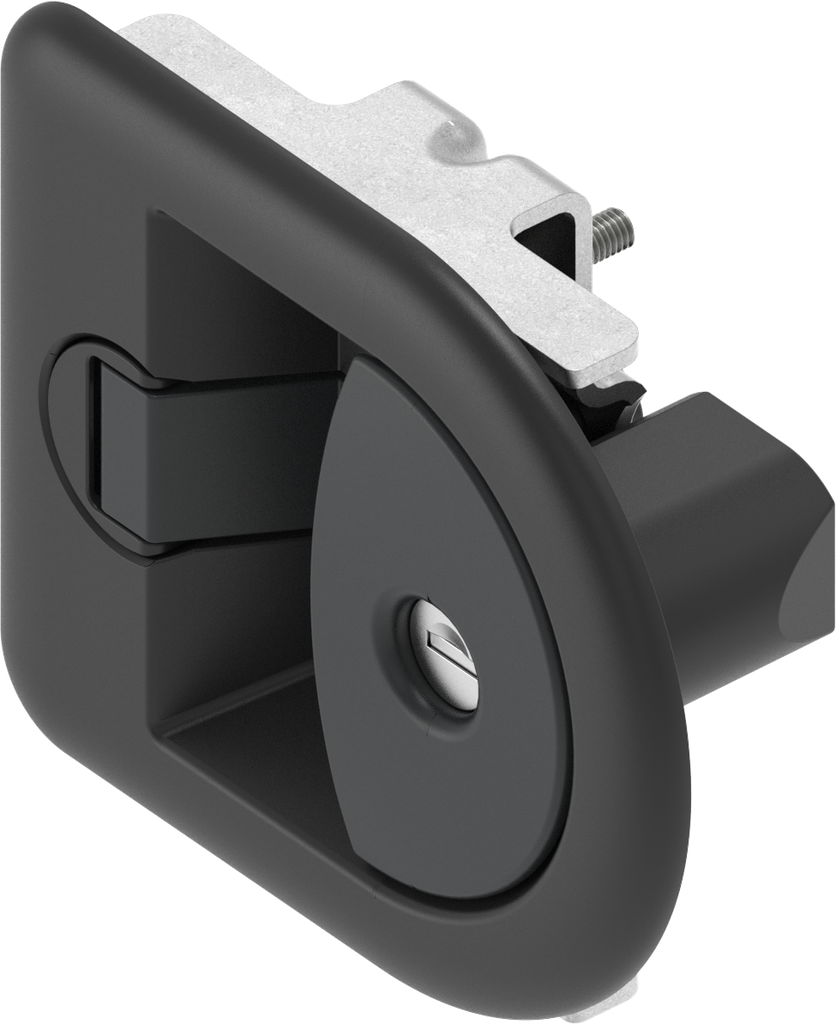

Chest handle keyed different, Polyamide black and zinc die signal black powder-coated; 1130-U17-01
with compression
Product information:

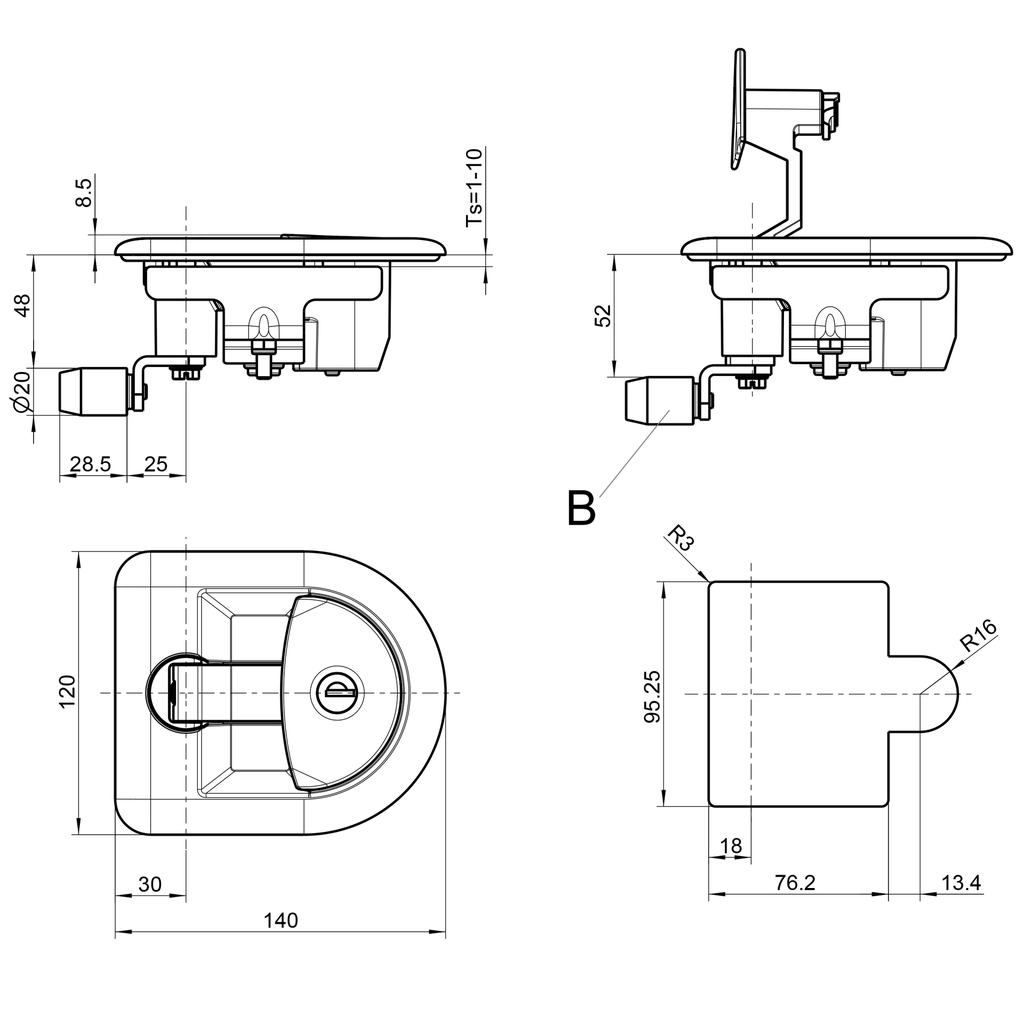

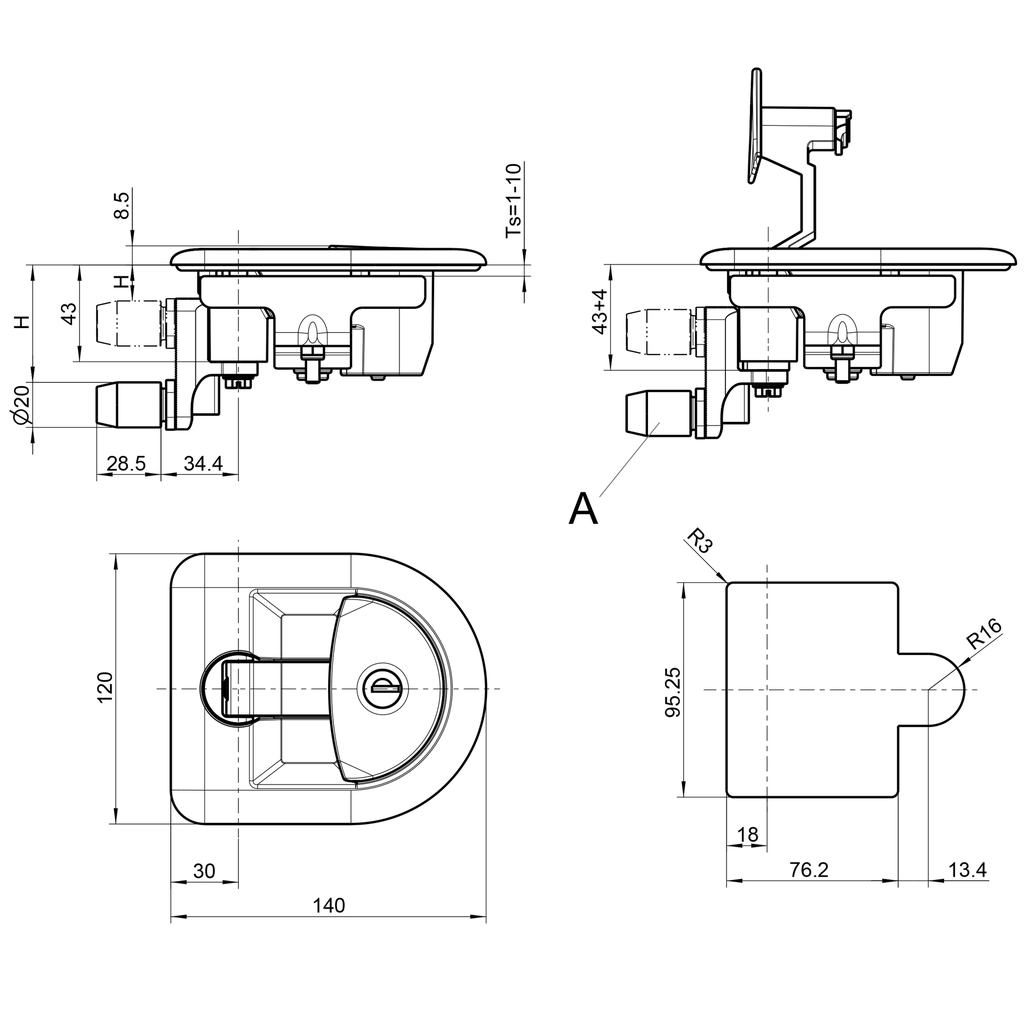

H = 16 - 52 mm (roller cam height-adjustable) A = Roller cam height adjustable B = Roller cam small C = Roller cam large
Internal Reference:
1130-U17-01
Standards:
Protection class IP 65
Product Type:
Other latch
Program:
1130
Material of the module :
Polyamide black and zinc die
Surface of the module:
signal black powder-coated
Number of Possible Locking Points:
1 point
Type of attachment to the frame:
screw-on from inside
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Foamed gasket:
Yes
Compression Value :
4 mm
Suitable for door thickness from:
1 mm
Suitable for door thicknesses up to:
10 mm
Round Cylinder Type:
EMKA EK, differently keyed
Locking set:
Round cylinder
Cabinet type :
Single cabinets,In-line cabinets with single door,In-line cabinets with double door
Door position:
concealed
Door Version :
Left,Right
Lock Type:
Chest habdle with snap-in function
