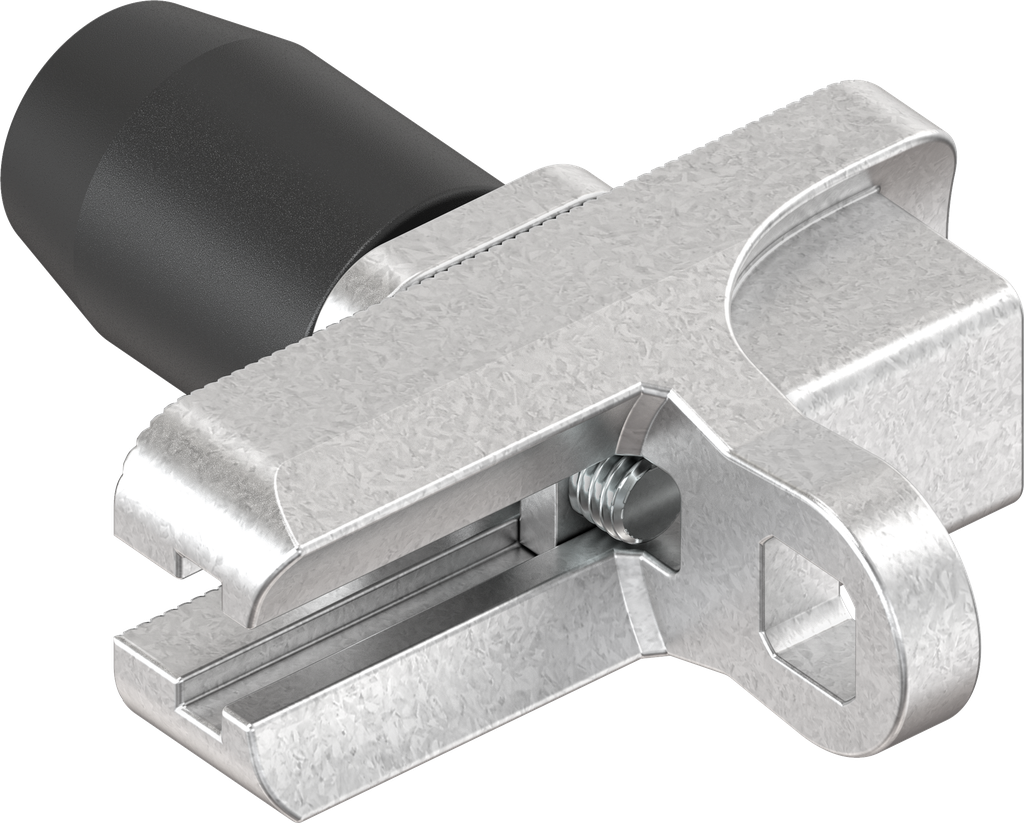

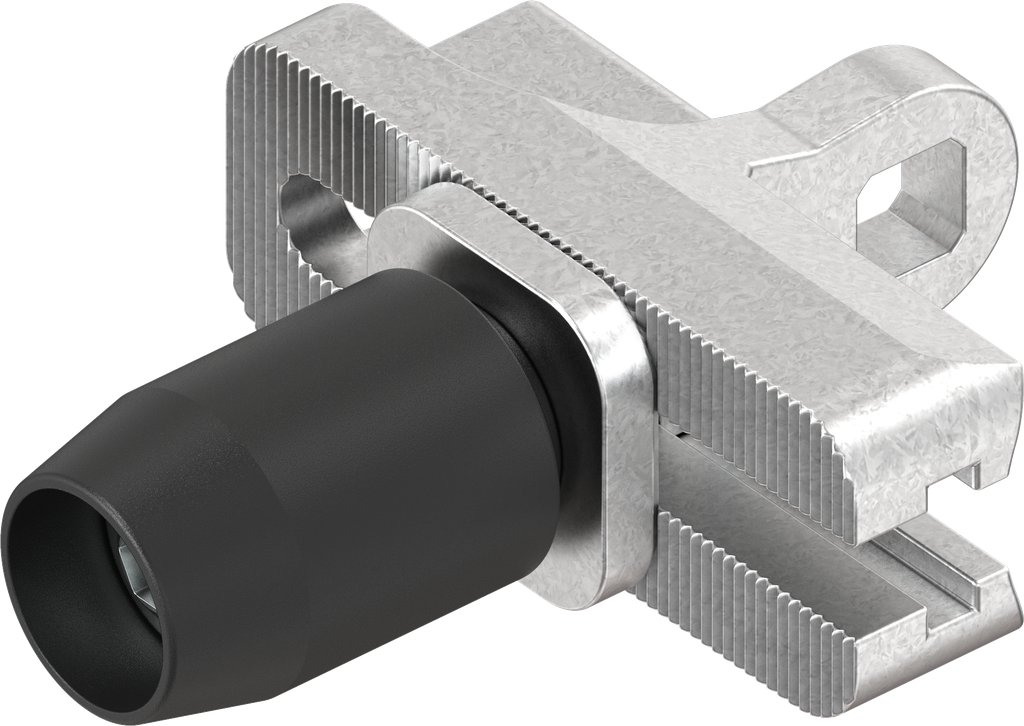

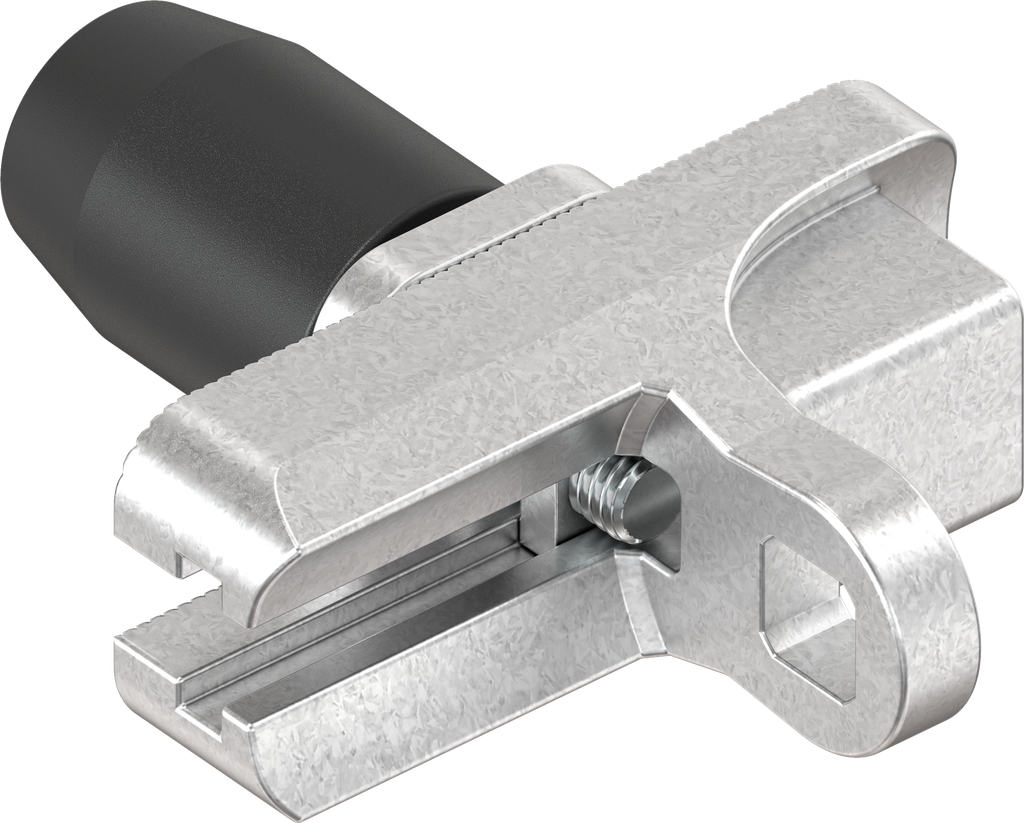

Roller cam height-adjustable, Polyamide black and zinc die zinc-plated; 1130-U16

https://www.emka.com/products/1130-u16 https://www.emka.com/web/image/product.template/64732/image_1920?unique=083e0cb

    This combination does not exist.

    Inside the sealing
    Contact Us

    Product information:

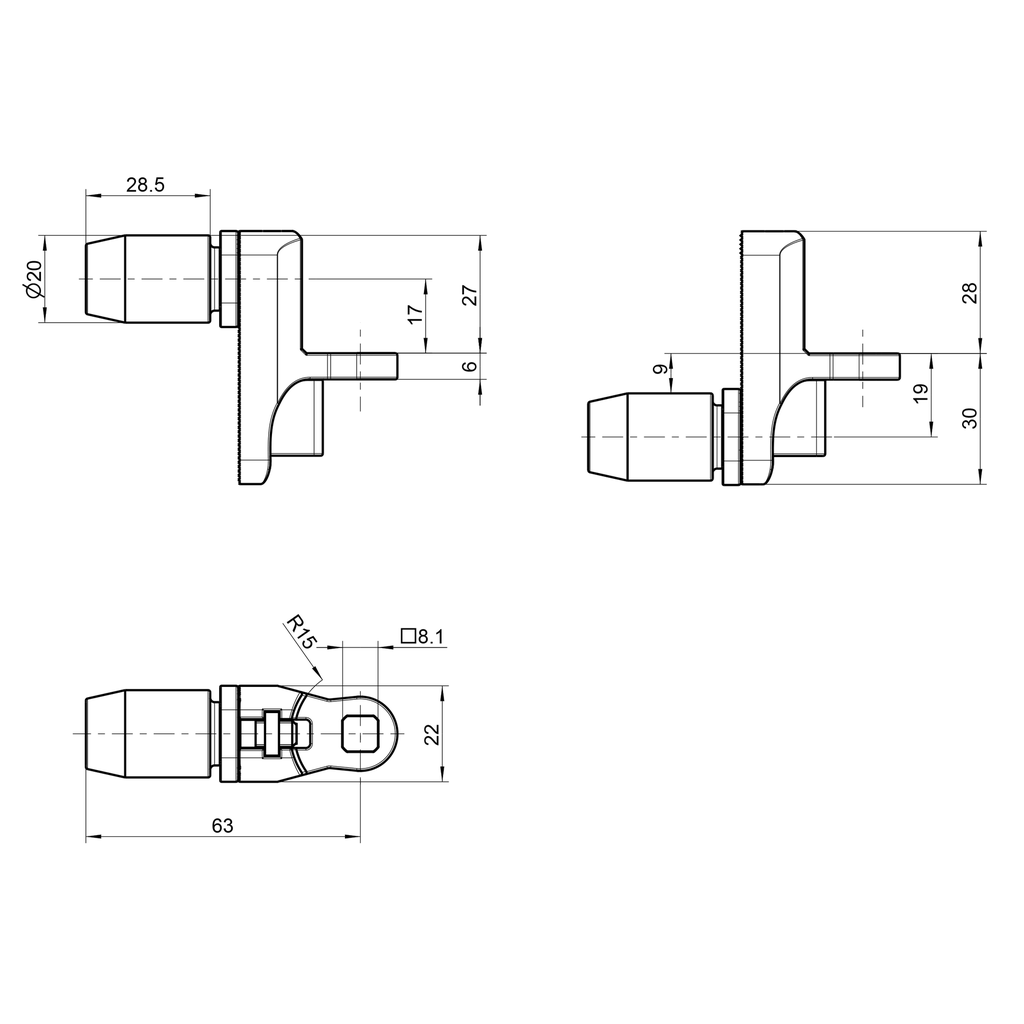

    H = 16 - 52 mm A = Roller cam height-adjustable Height adjustable in 1 mm steps
    Internal Reference: 1130-U16
    Product Type: Cam
    Program: 1130
    Catalog sheet: 8A-110
    Material of the module : Polyamide black and zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point
    Mounting Positions : Inside the sealing
    Offset: Height adjustable
    Dimension L: 63 mm
    No Specifications
    View All Products
    Other latch
    Here you can find the product data sheets and CAD files of this product
