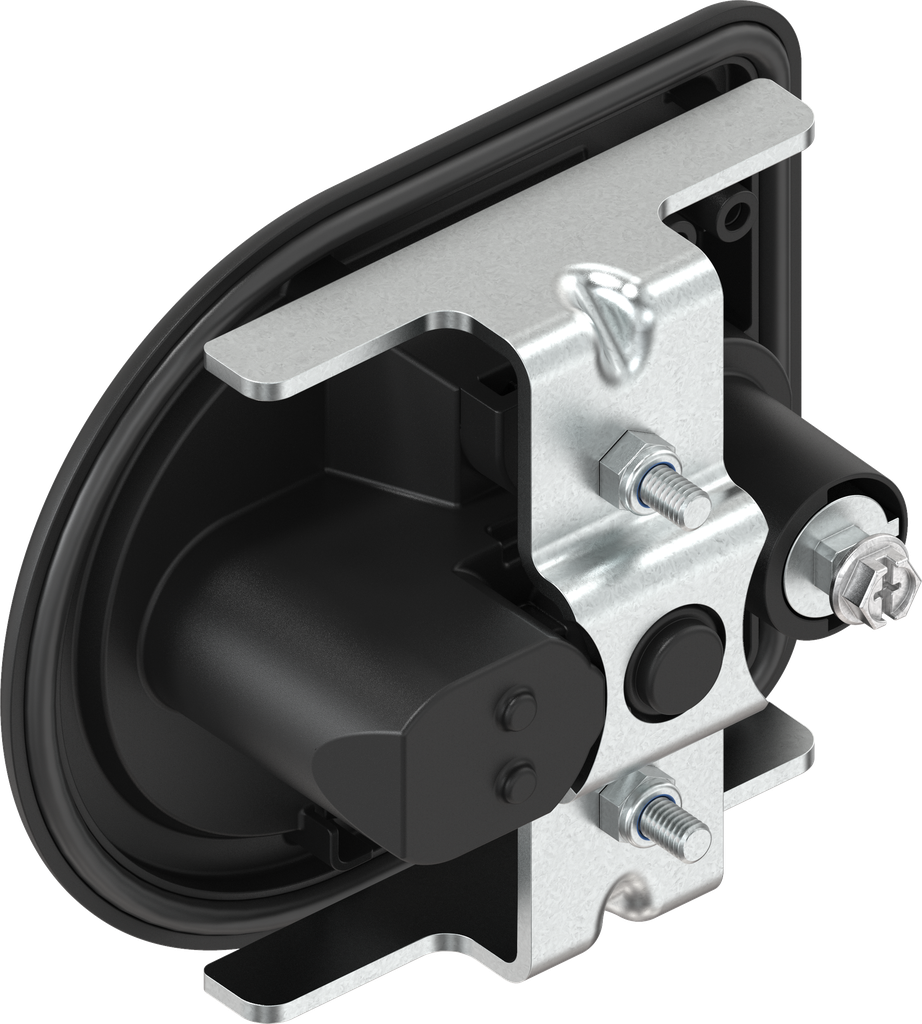

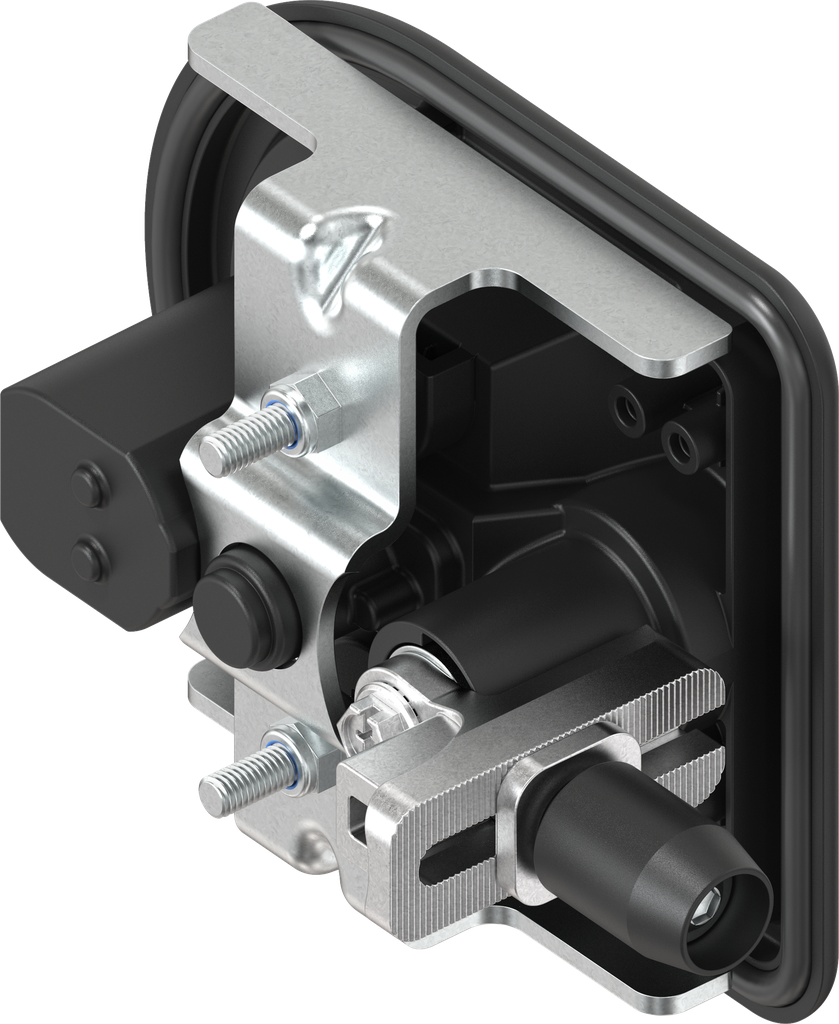

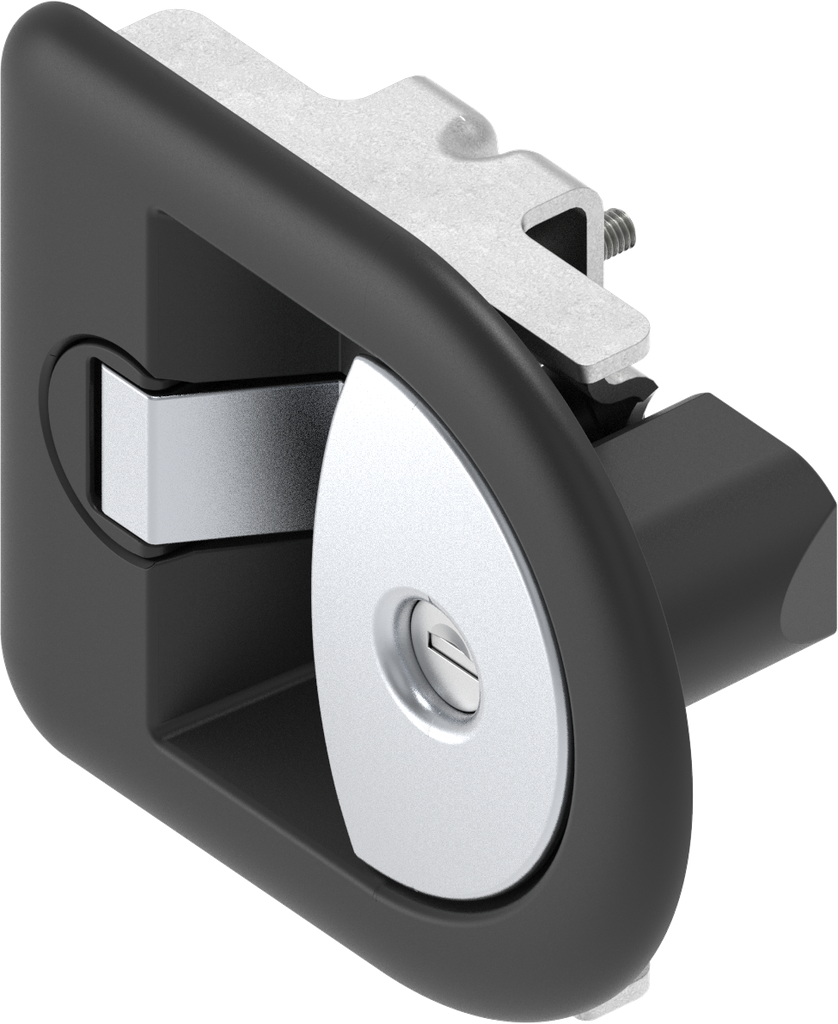

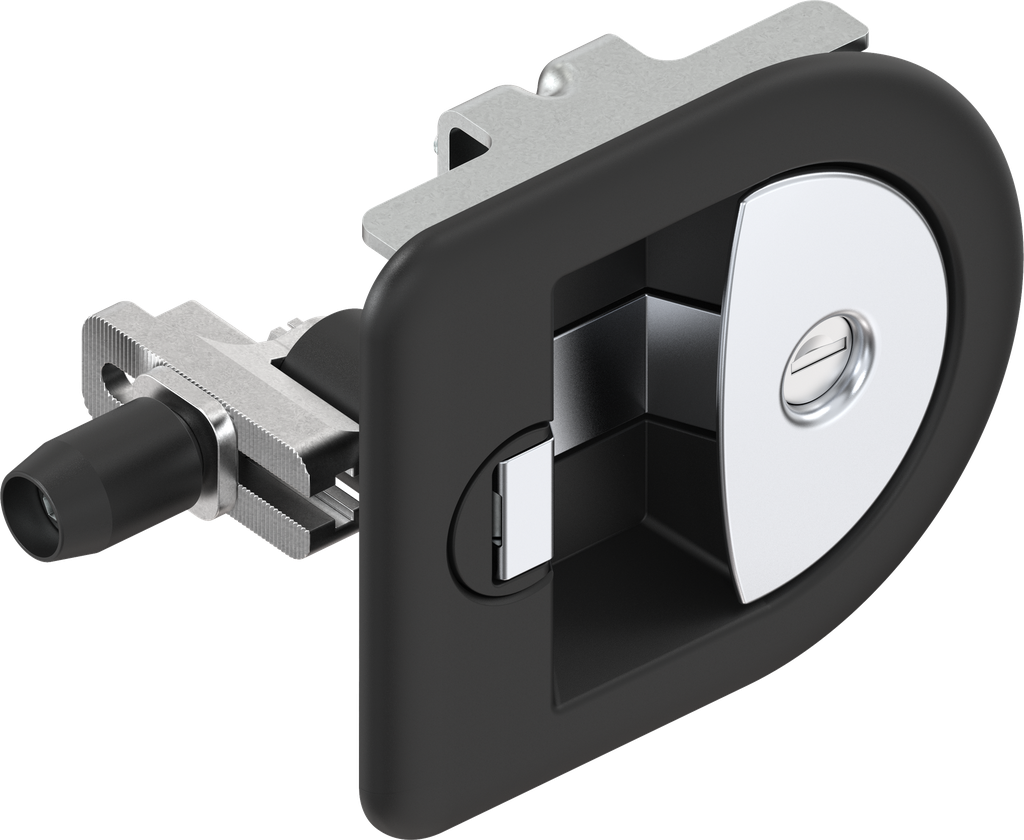

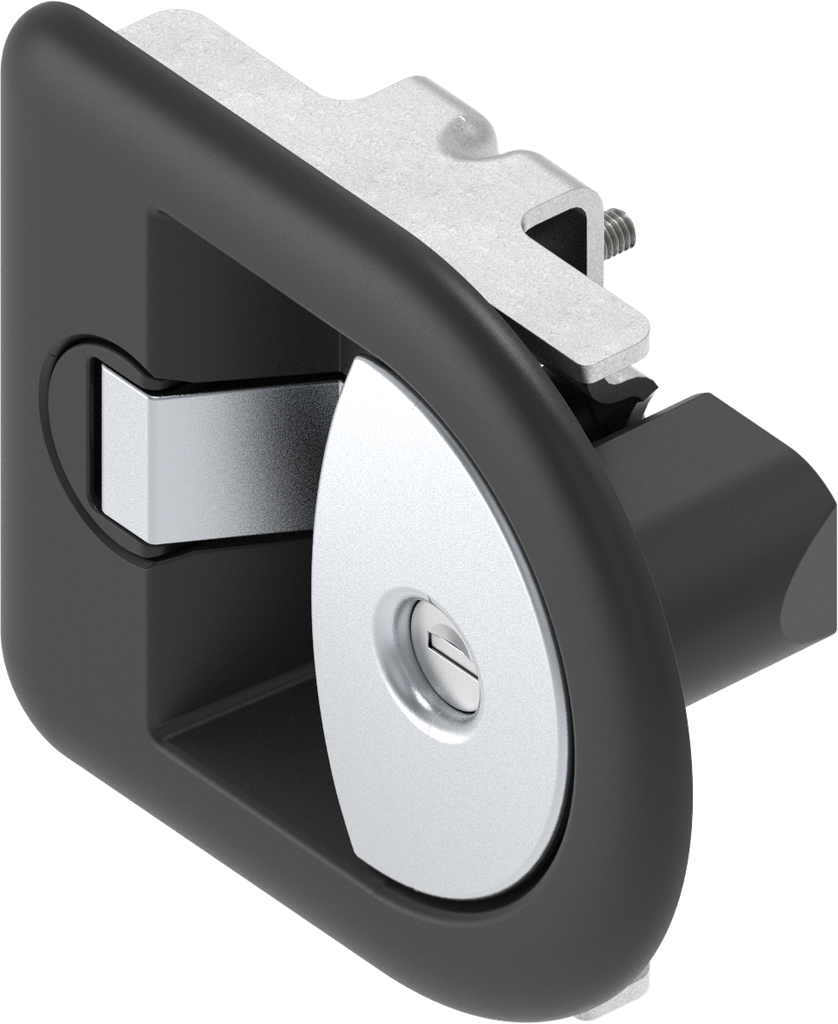

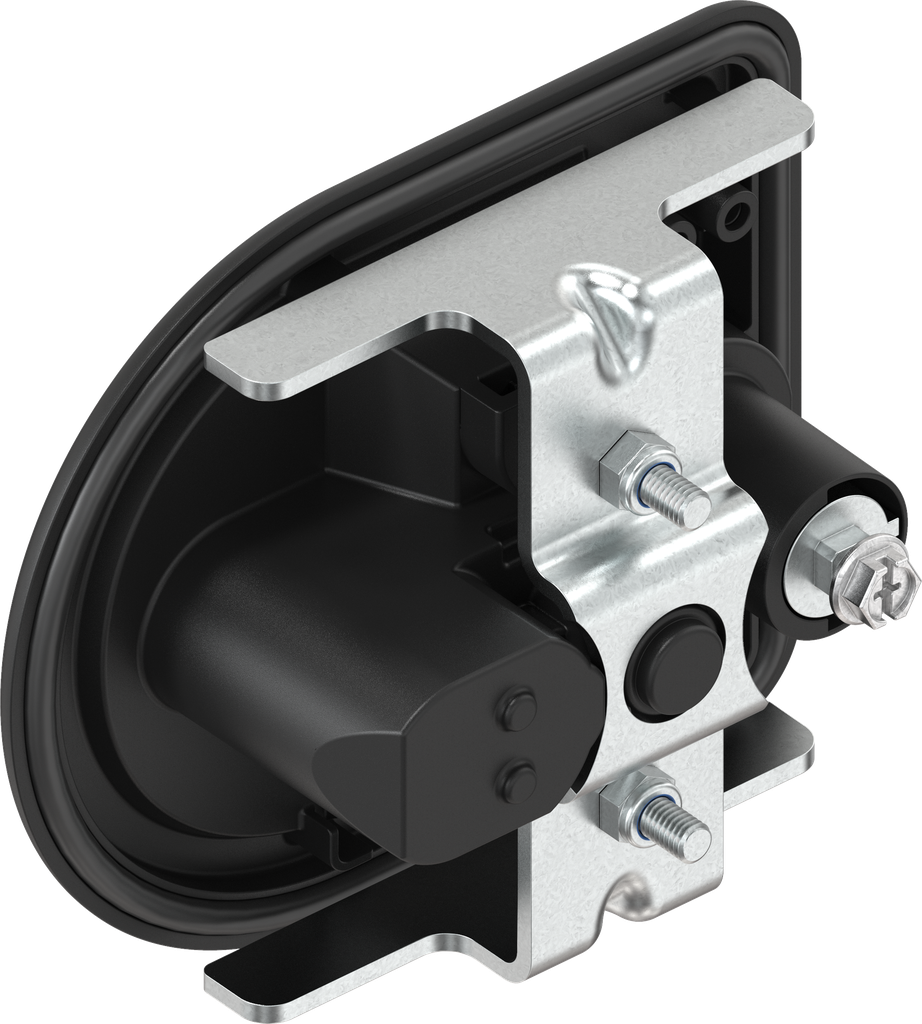

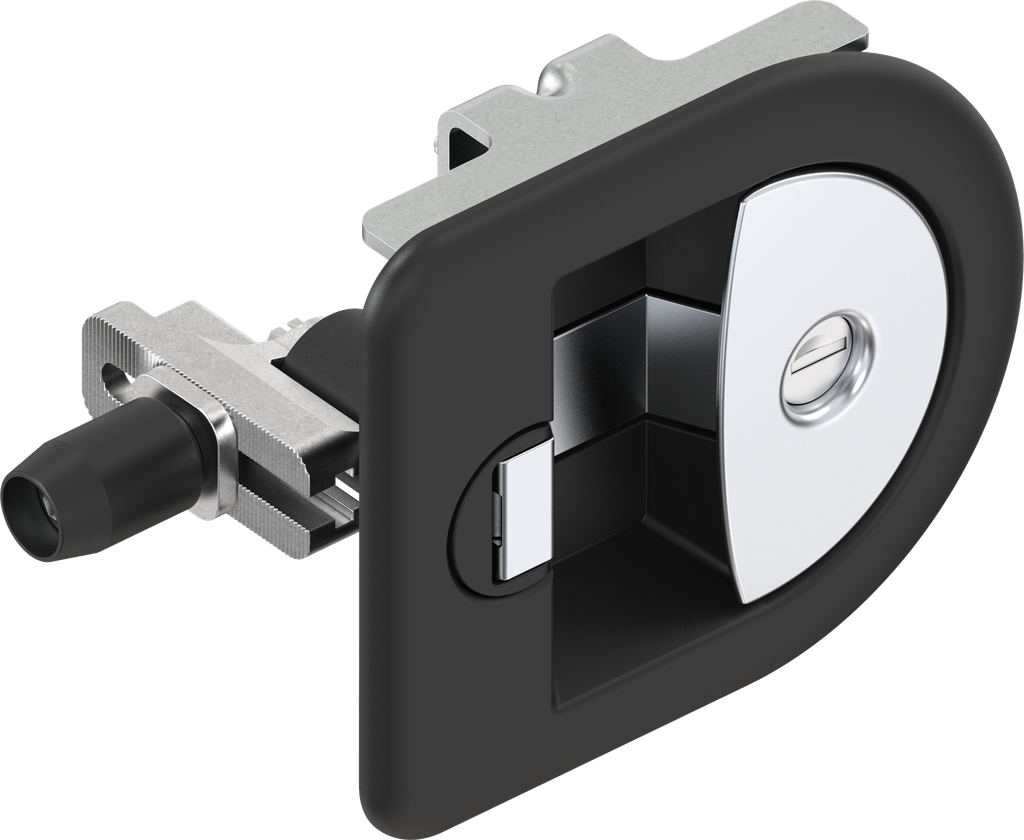

Chest handle keyed EK 333, Polyamide black and zinc die chrome-plated; 1130-U15

https://www.emka.com/products/1130-u15 https://www.emka.com/web/image/product.template/64731/image_1920?unique=9b75f53

with compression

    This combination does not exist.

    Single cabinets In-line cabinets with single door In-line cabinets with double door Inside the sealing Foamed seal Protection class IP 65 Left Right
    Contact Us

    Product information:

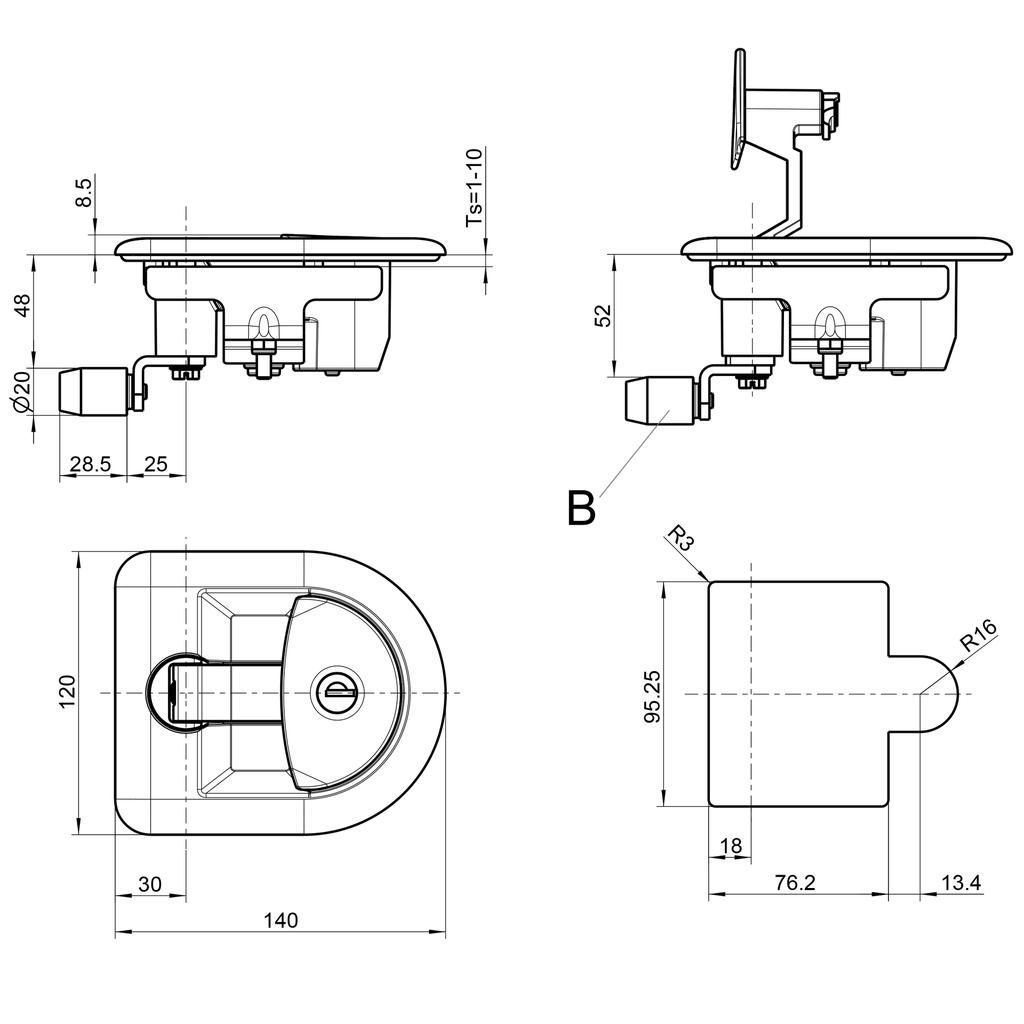

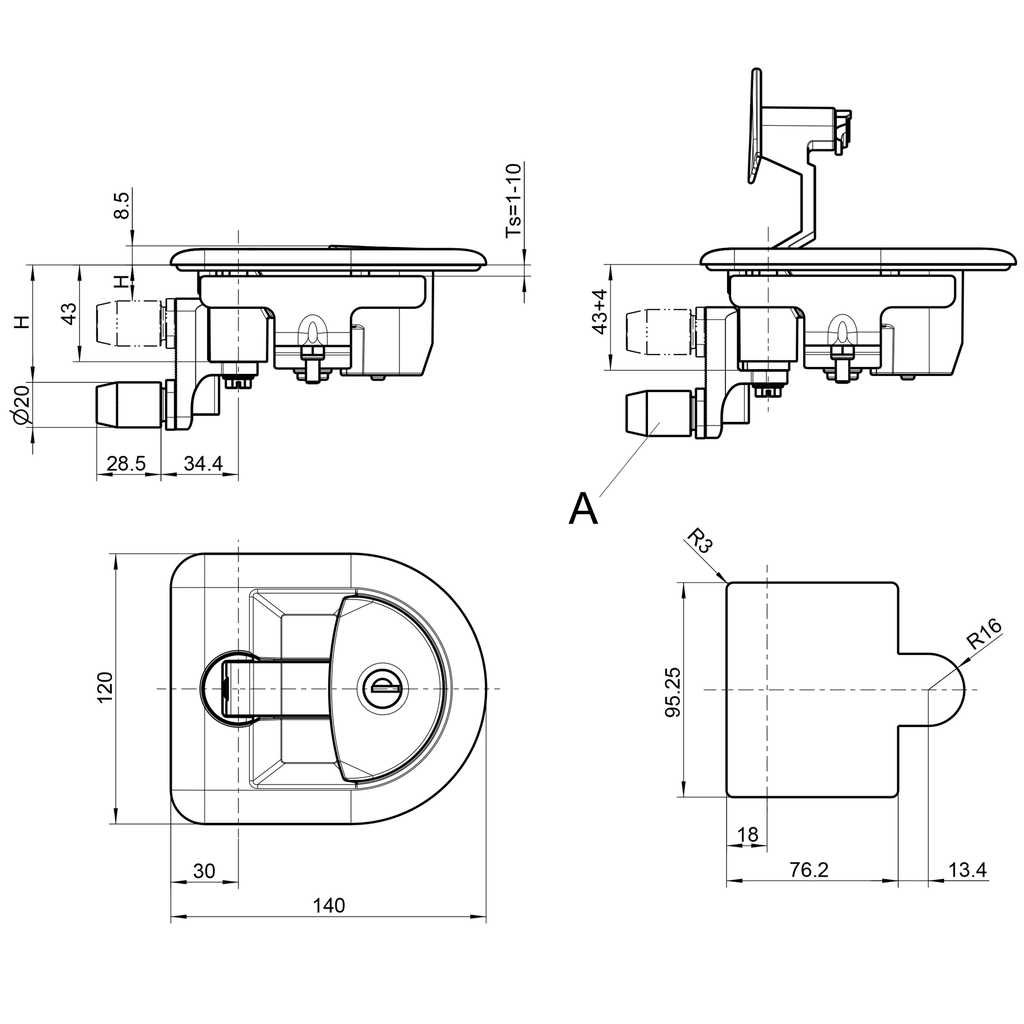

    H = 16 - 52 mm (roller cam height-adjustable) A = Roller cam height adjustable B = Roller cam small C = Roller cam large
    Internal Reference: 1130-U15
    Product Type: Other latch
    Program: 1130
    Catalog sheet: 8A-110
    Material of the module : Polyamide black and zinc die
    Surface of the module: chrome-plated
    Number of Possible Locking Points: 1 point
    Type of attachment to the frame: screw-on from inside
    Fixing type of housing : nut fixing
    Mounting Positions : Inside the sealing
    Foamed gasket: Yes
    Compression Value : 4 mm
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 10 mm
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Cabinet type : Single cabinets,In-line cabinets with single door,In-line cabinets with double door
    Door position: concealed
    Door Version : Left,Right
    Lock Type: Chest habdle with snap-in function
