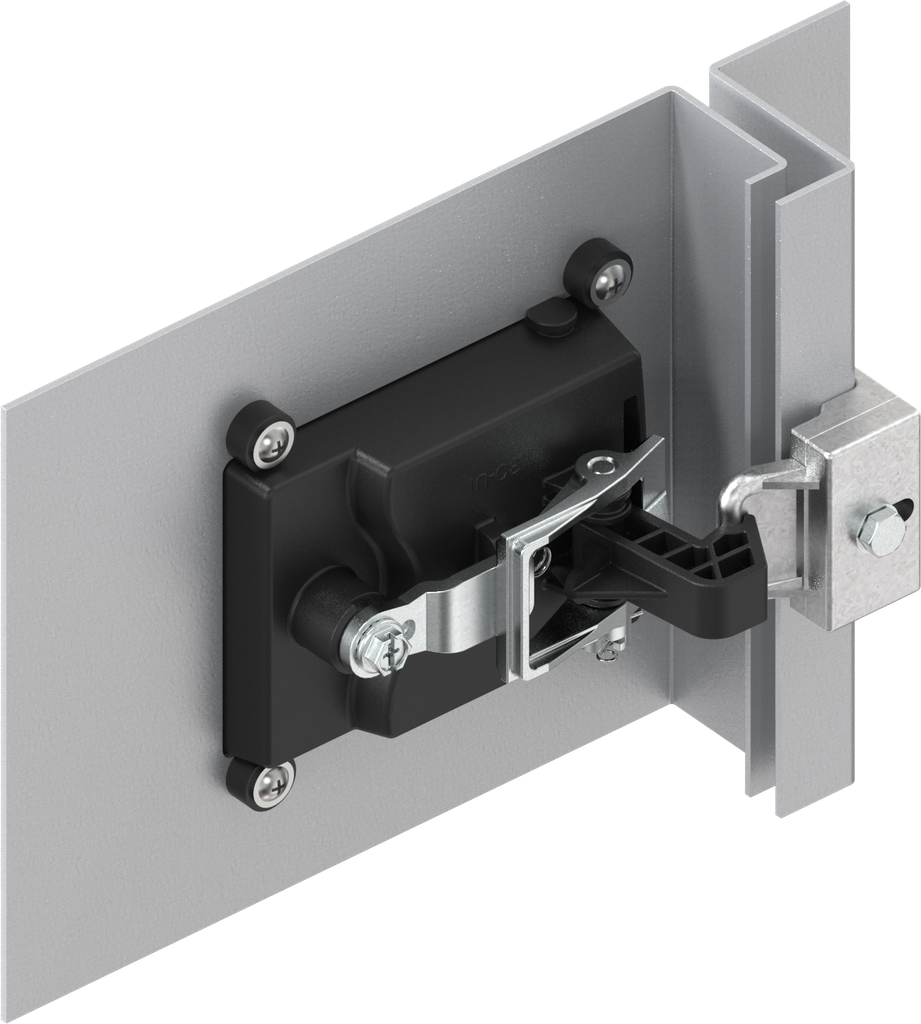

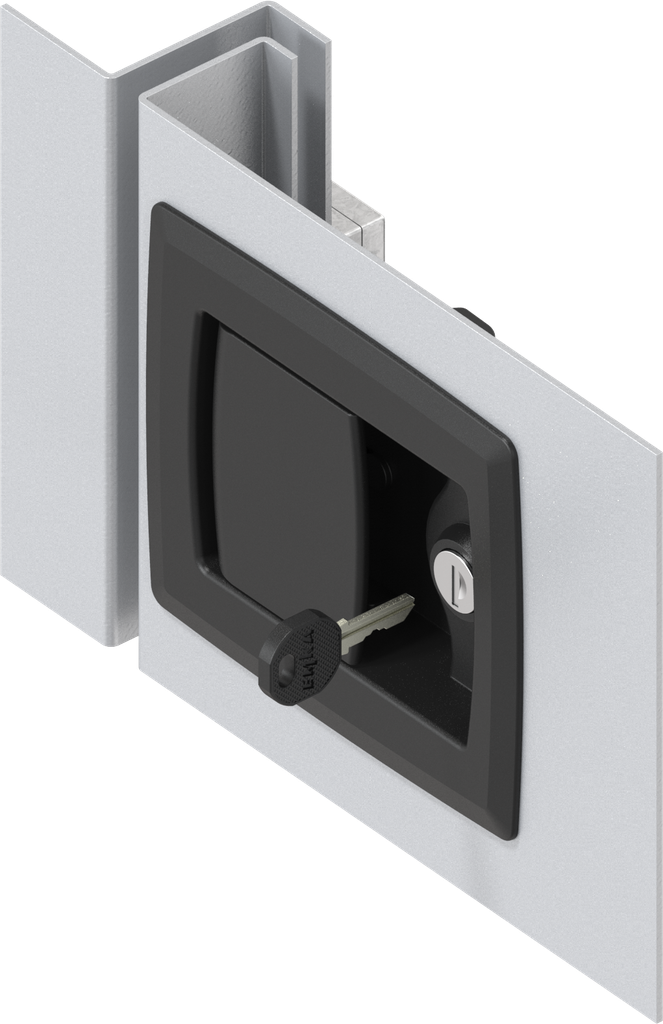

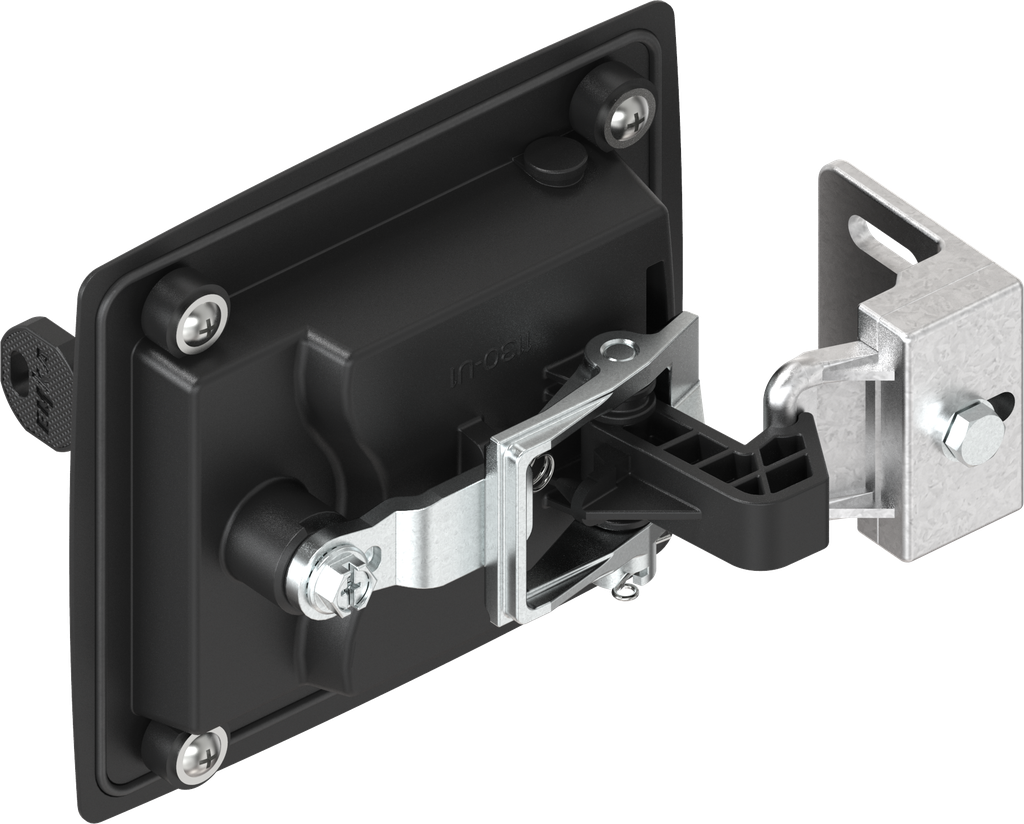

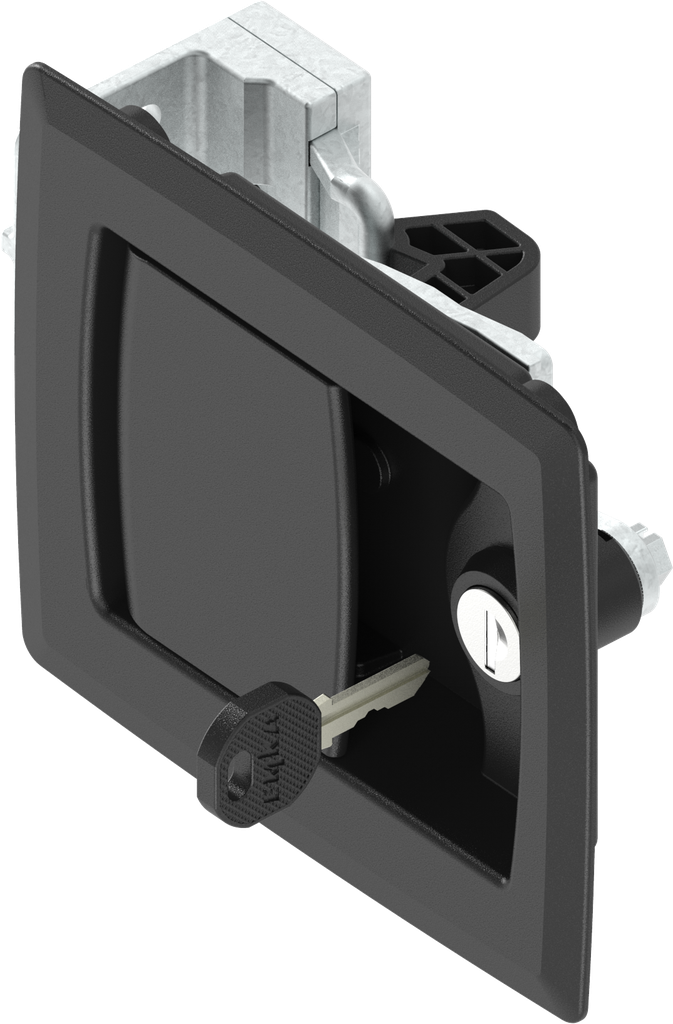

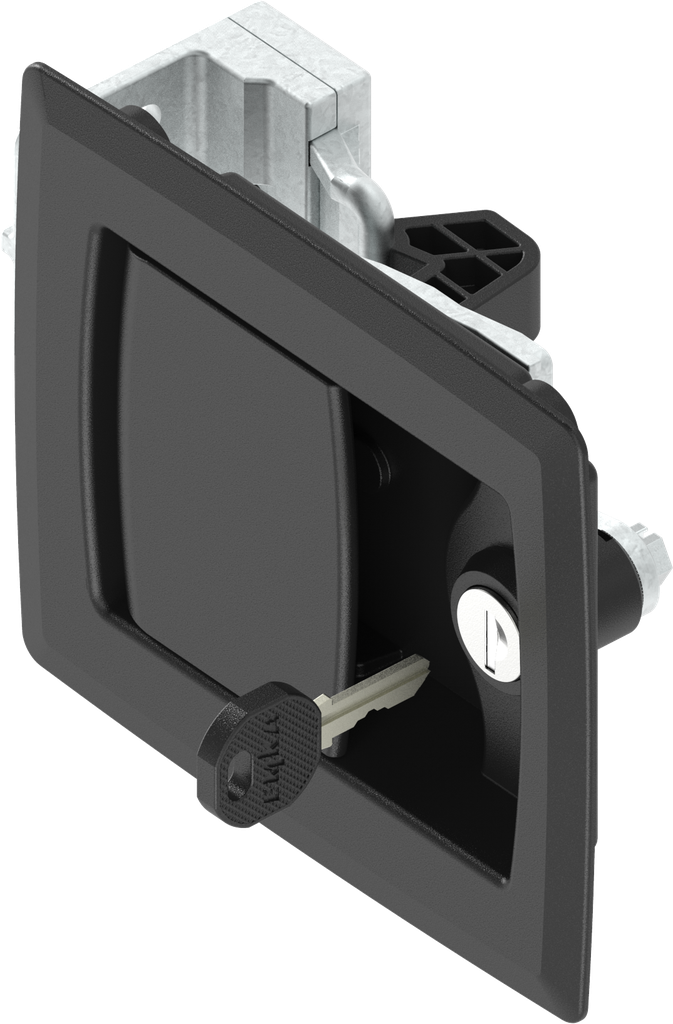

Chest handle keyed EK 333, Polyamide GF black
Product information:
The chest handles 1130-U1 and -U2 are made for right-hand version. Left-hand version is created by removal of the round cylinder, rotating it by 180° and refitting it.
Function:
The spring-loaded locking hook is equipped with a 'door-slam' feature. With this, the door can also be closed when locked.
Internal Reference:
1130-U1
Product Type:
Other latch
Program:
1130
Catalog sheet:
8A-120
Material of the module :
Polyamide GF
Surface of the module:
black
Adjustable 2D:
Yes
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
3 mm
Locking set:
Round cylinder
Door Version :
Left,Right
Lock Type:
Chest habdle with snap-in function
