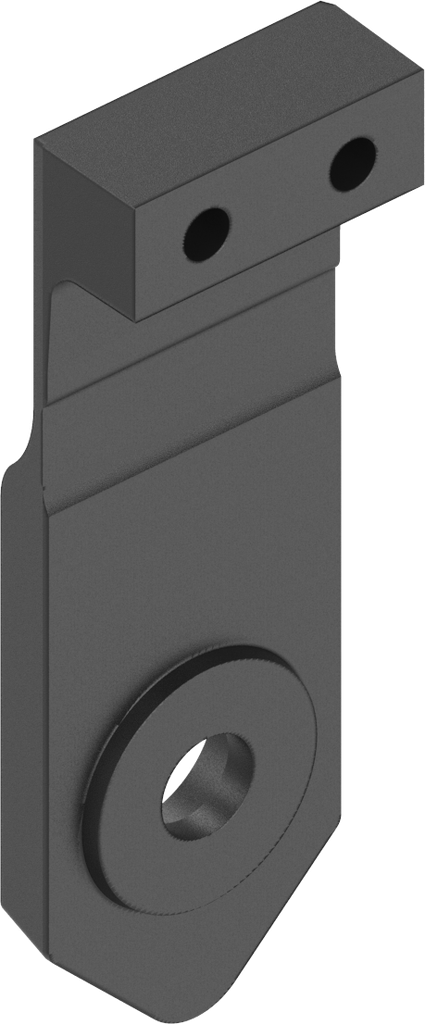

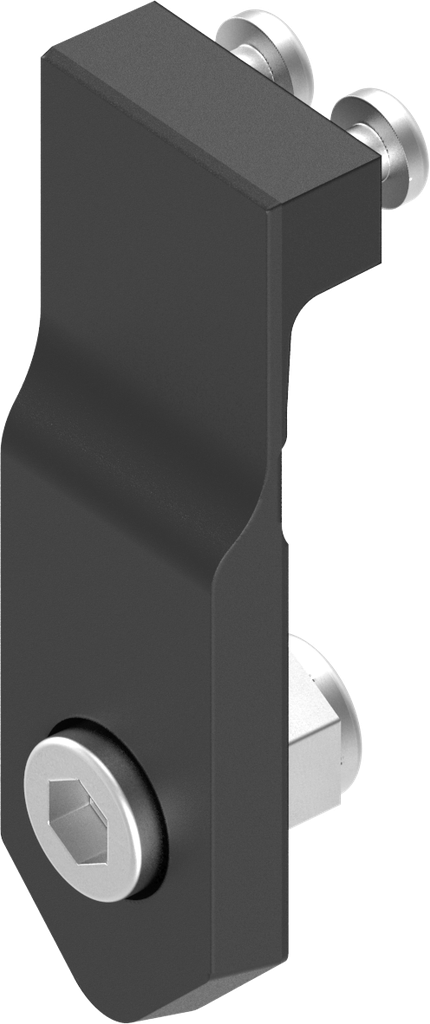

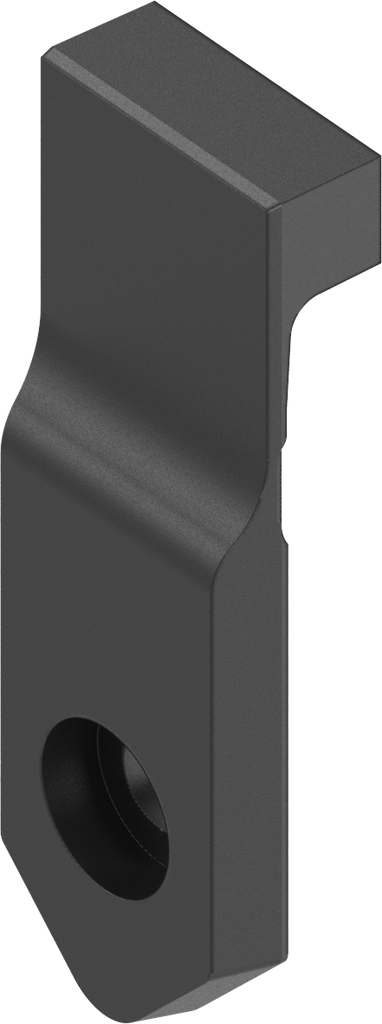

135° Integral hinge for light doors and covers, Polyamide black; 1126-S1

https://www.emka.com/products/1126-s1 https://www.emka.com/web/image/product.template/64685/image_1920?unique=41a809e

    This combination does not exist.

    Single cabinets In-line cabinets with single door Left Right
    Contact Us

    Product Benefits:

    - Special plastic guarantees that the bending axis of the integral hinge is permanently protected against brittleness or failure
    - Easy mounting
    - Favourably priced

    Product information:

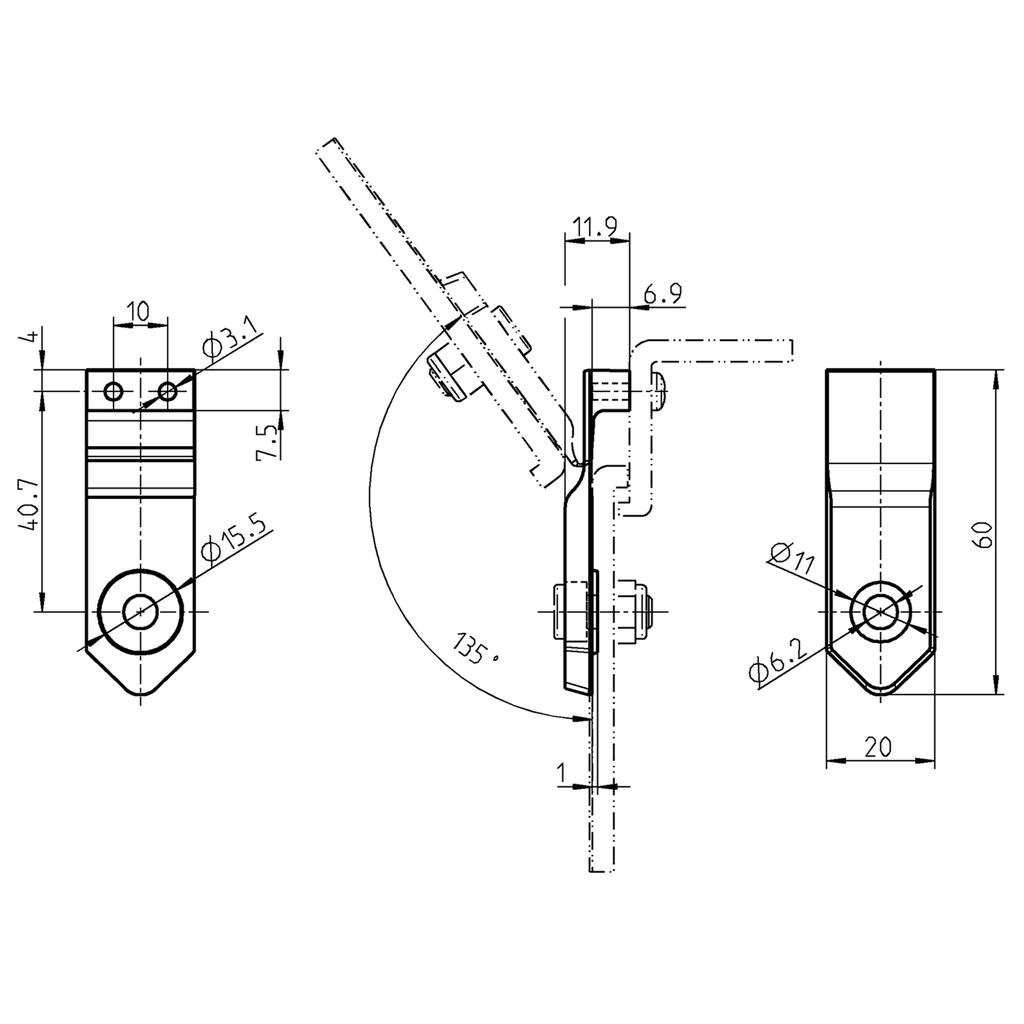

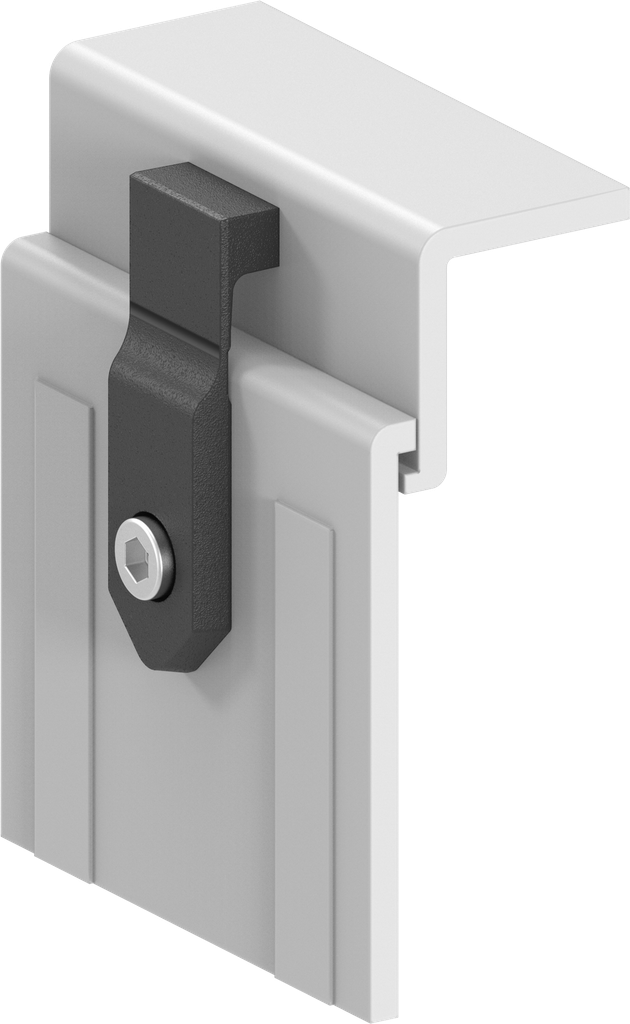

    ① = Installation location cover
    ② = Installation location door

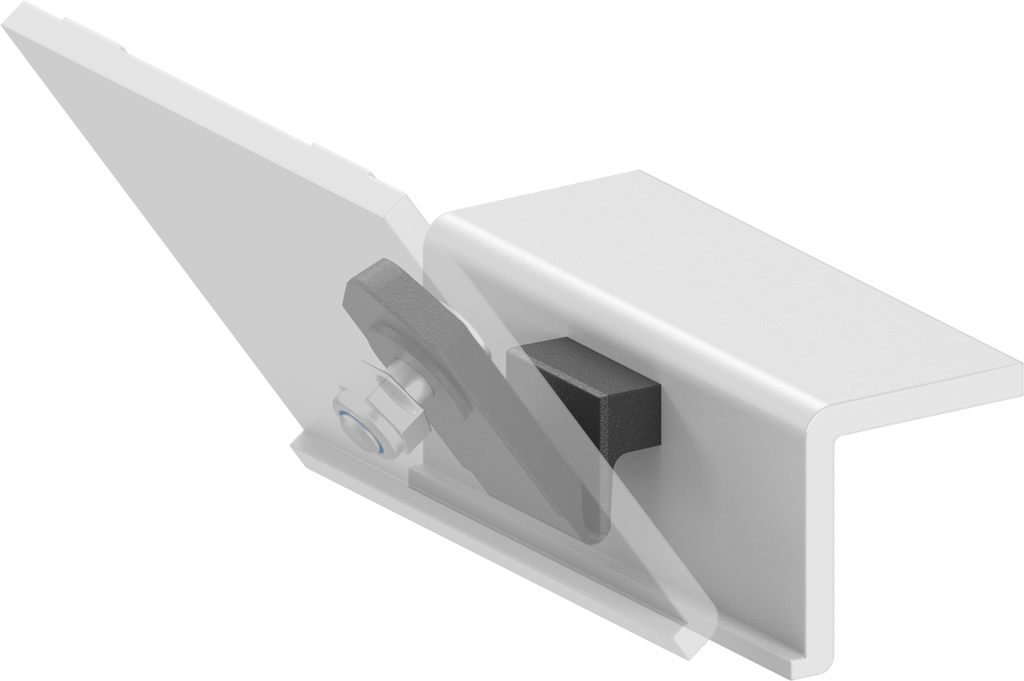

    ③ = detail A
    ④ = Detail A, door closed
    ⑤ = Detail A, door open

    Function:

    This integral hinge is suitable for light doors and covers, e. g. of plastic, with low opening frequency.

    Technical data:
    2,000 cycles with an opening and closing angle of 135° with a load of 2.5 kg door weight / hinge (recommended load per hinge)
    Internal Reference: 1126-S1
    Product Type: Hinge
    Material: Polyamide
    Surface: black
    Dimension A, Variable: 6.9 mm
    Type of attachment to the frame: screw-on from outside
    Type of fastening on the door: screw-on from inside
    Hole pattern required in the door: Bore holes in the door
    Max Opening Angle: 135°
    Suitable for door thickness from: 1 mm
    Suitable for door thicknesses up to: 6.90 mm
    Cabinet type : Single cabinets,In-line cabinets with single door
    Door position: prominent
    Door Version : Left,Right
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
