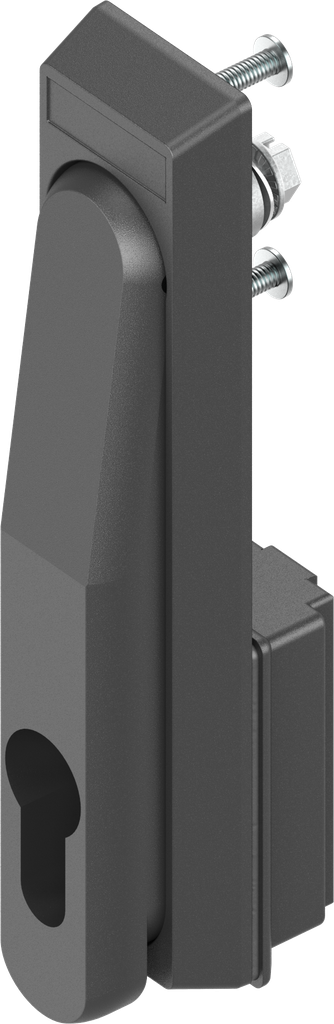

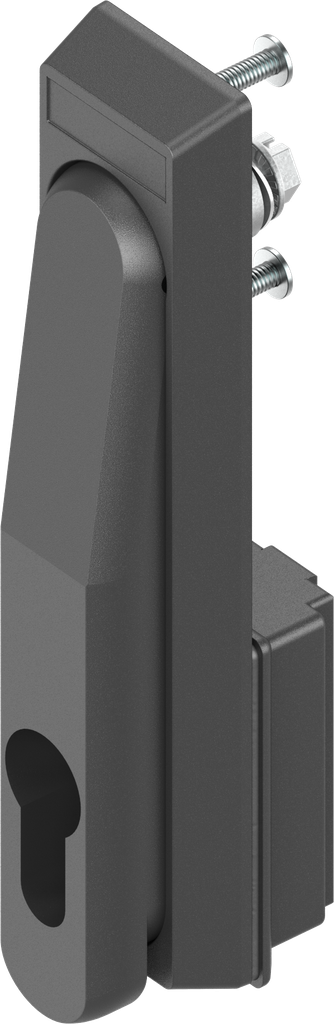

Swinghandle for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black
Swinghandle for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black
Internal Reference:
1125-U195-NA
Product Type:
Swinghandle, Lifthandle
Program:
1125
Catalog sheet:
3B-220
Material of the module :
Polyamide GF
Surface of the module:
black
Dimension A, Variable:
25 mm
Door return variable:
Yes
Number of Possible Locking Points:
1 point, 2 points, 3 point, 4 point, More than 4 points available on request
Number of Locking:
One locking set
Attachment of the trough:
Clip-in cap IP 40
Mounting Positions :
Inside the sealing,Outside the sealing
Grounding possible:
Yes
Foamed gasket:
Yes
Handle Art(1):
Swinghandle
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
2 mm
Locking set:
Profile half cylinder A = 35
Key Removable:
Key can be withdrawn in any handle position
Swivel Handle:
26 mm
Pan Handle Length:
160 mm
Door revolvable / reversible:
Yes
Door Version :
Left,Right
Locking components:
Rod control,Bearing bush with cam
