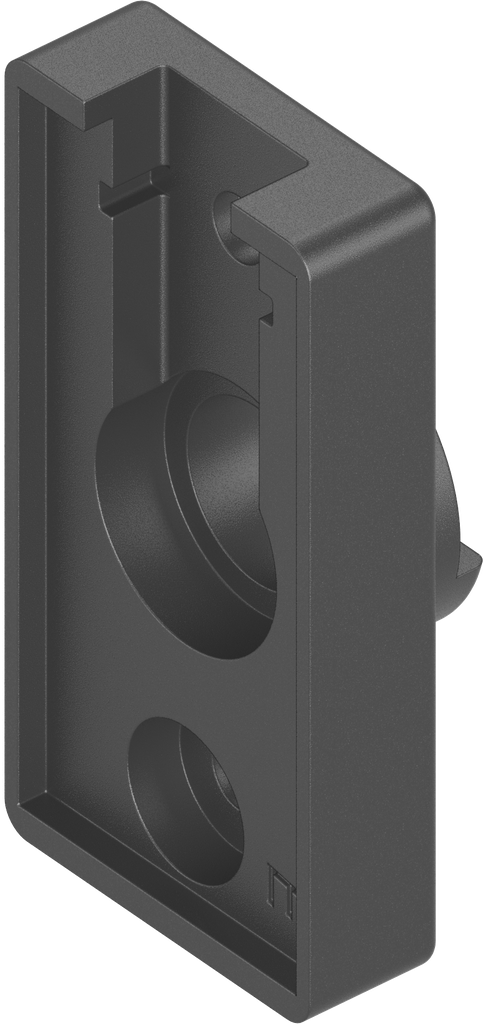

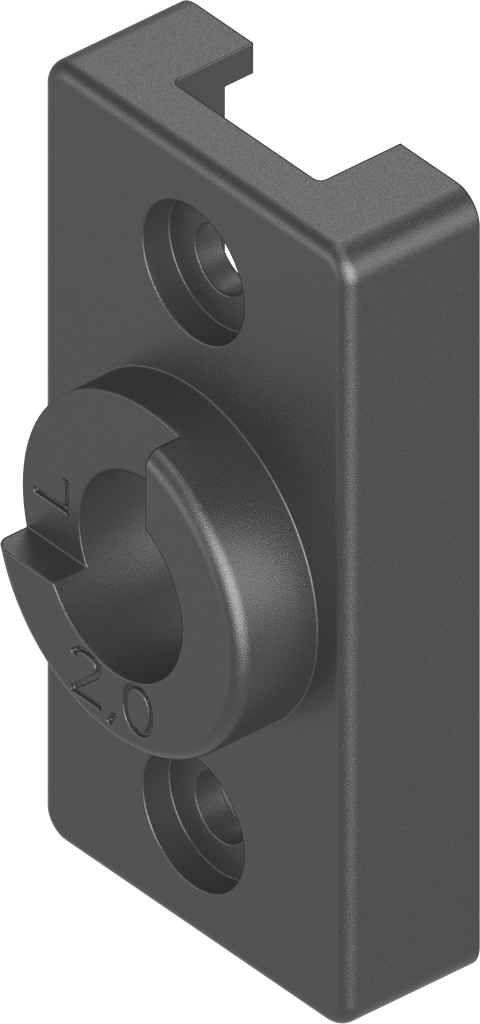

Bearing bush with stopper for Ts = 2 mm, left version, Polyamide GF black; 1125-83-20
Product information:
Escutcheons and swinghandles mounted with cap cannot be used with standard round rods.
Special rods on request.
Internal Reference:
1125-83-20
Product Type:
Bearing bush
Material:
Polyamide GF
Program:
1125
Surface:
black
Catalog sheet:
3YB-140
Anschlag-Art:
Escutcheon left or swinghandle right
Mounting Positions :
Inside the sealing
Ground Spring:
In connection with 1125, 1225, 1325
GH Mass:
18 mm
Door thickness:
2 mm
No Specifications
View All Products

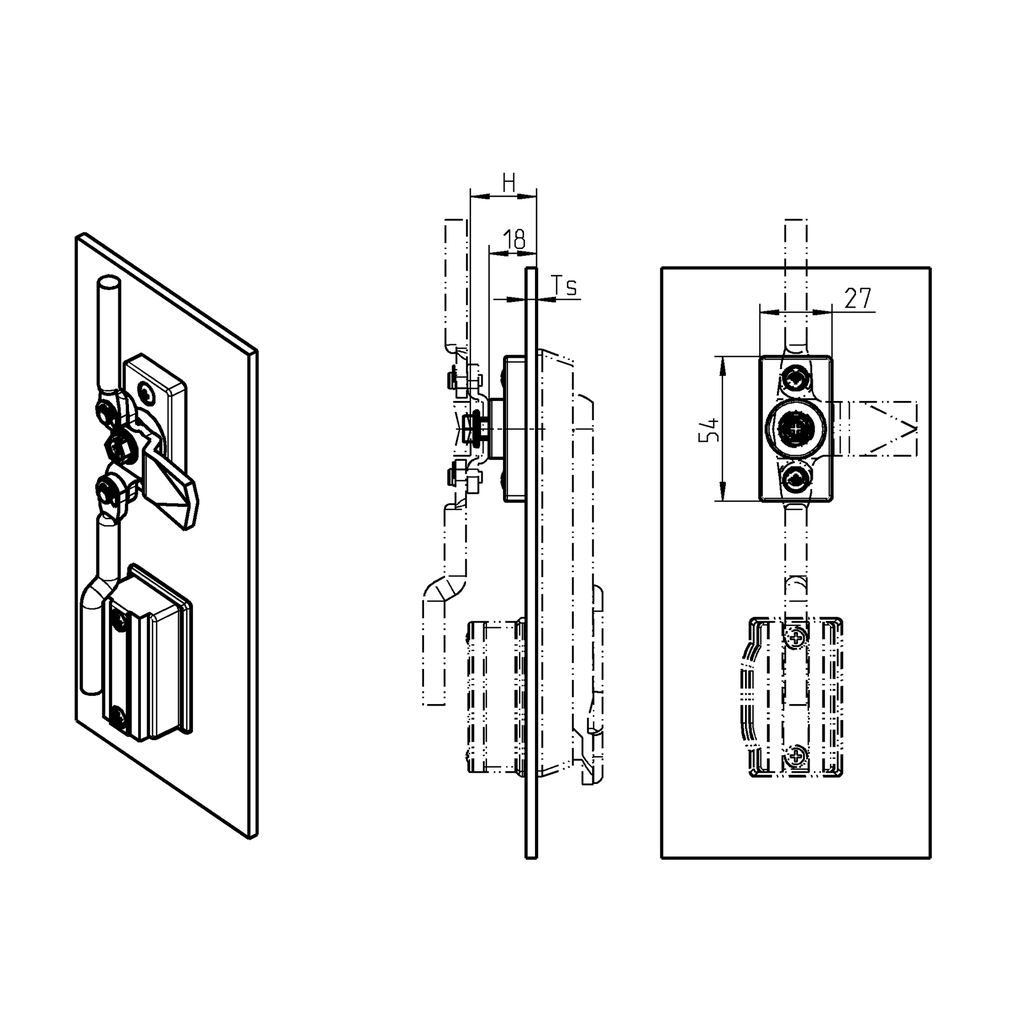

Here you can find the product data sheets and CAD files of this product
