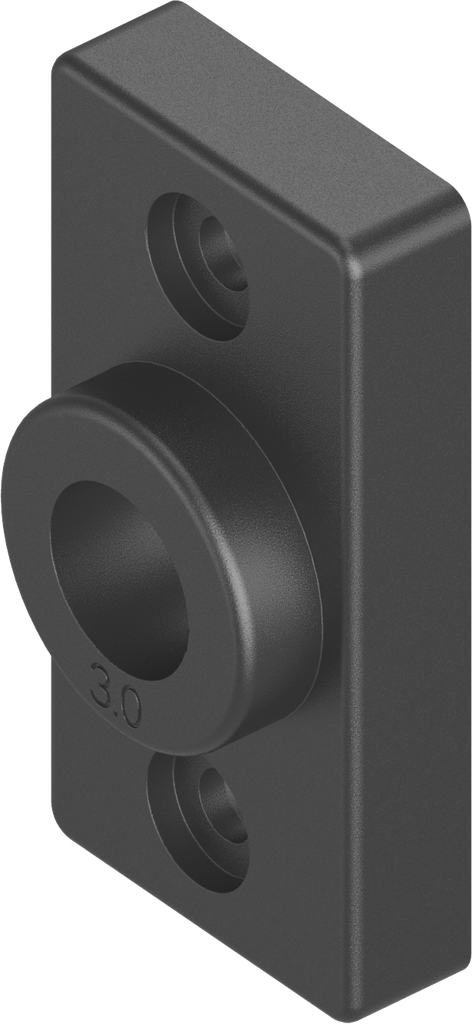

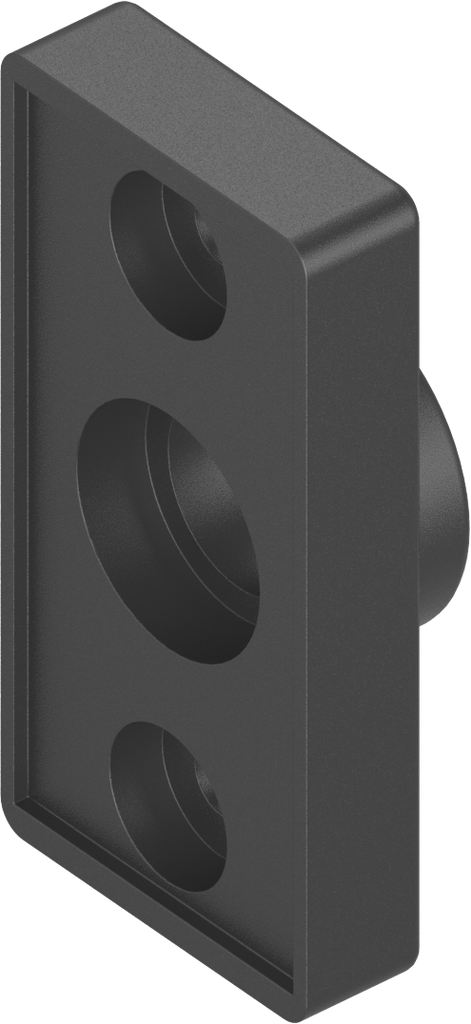

Bearing bush without stopper for Ts = 5 mm, Polyamide GF V0 black
Product information:
Escutcheons and swinghandles mounted with cap cannot be used with standard round rods.
Special rods on request.
Internal Reference:
1125-81-30
Product Type:
Bearing bush
Material:
Polyamide GF V0
Program:
1125
Surface:
black
Catalog sheet:
3YB-140
Anschlag-Art:
Without stopper
Mounting Positions :
Inside the sealing
Ground Spring:
In connection with 1125, 1225, 1325
GH Mass:
18 mm
Door thickness:
3 mm
No Specifications
