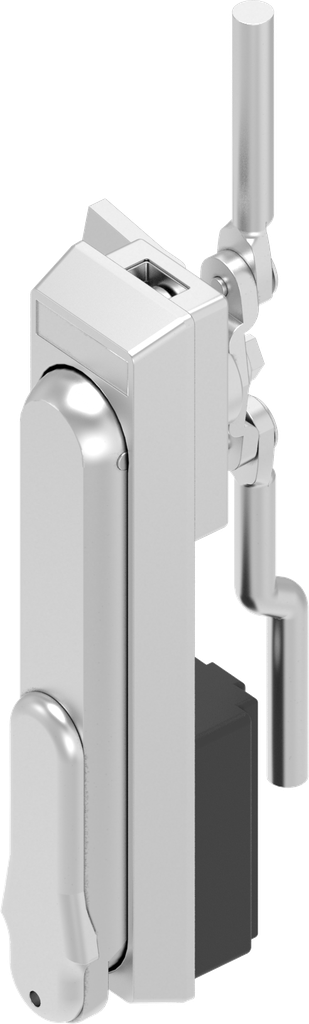

Double cylinder swinghandle with 1-key-operation, Polyamide GF black
Product information:
Escutcheons and swinghandles mounted with cap cannot be used with standard round rods.
Special rods on request.
Internal Reference:
1125-81-20PH
Product Type:

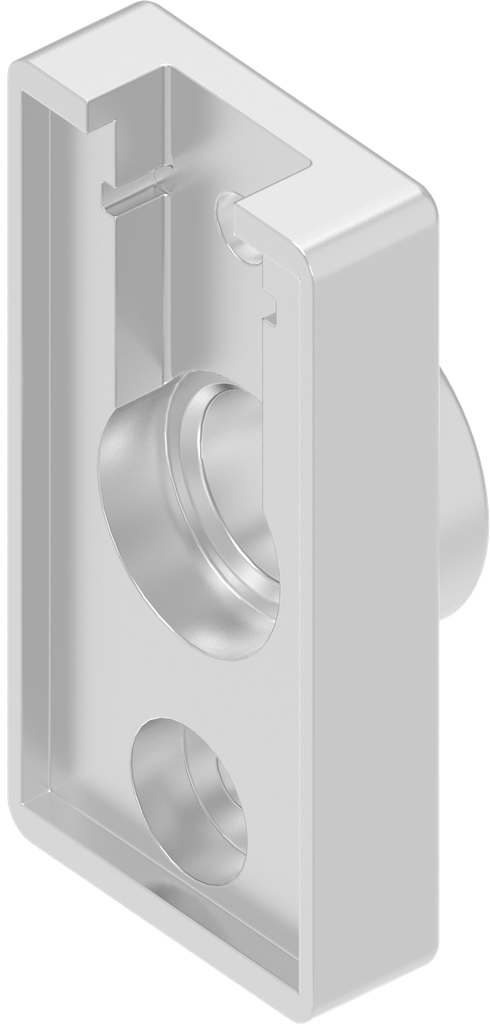

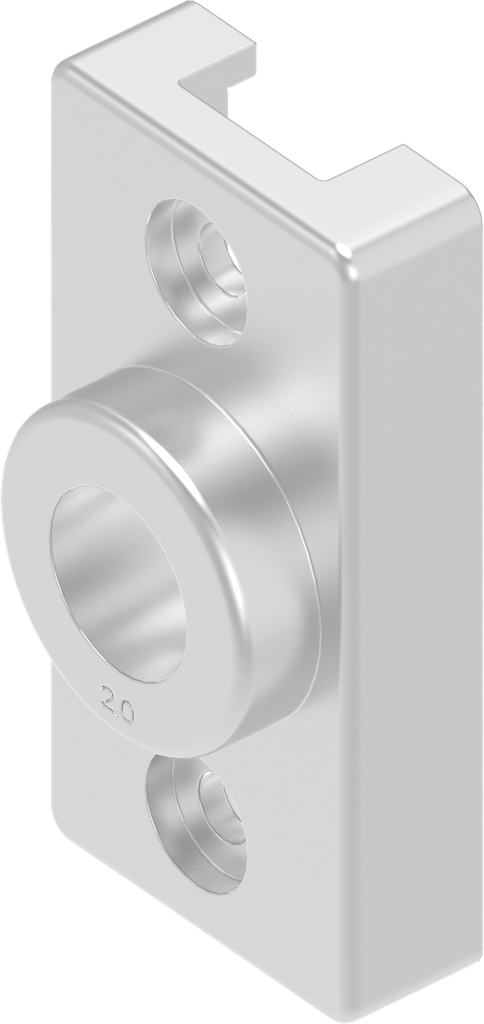

Bearing bush
Material:
Stainless steel AISI 316
Program:
1125
Catalog sheet:
3YB-120
Anschlag-Art:
Without stopper
Mounting Positions :
Inside the sealing
Ground Spring:
In connection with 1125, 1225, 1325
GH Mass:
18 mm
Door thickness:
2 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
