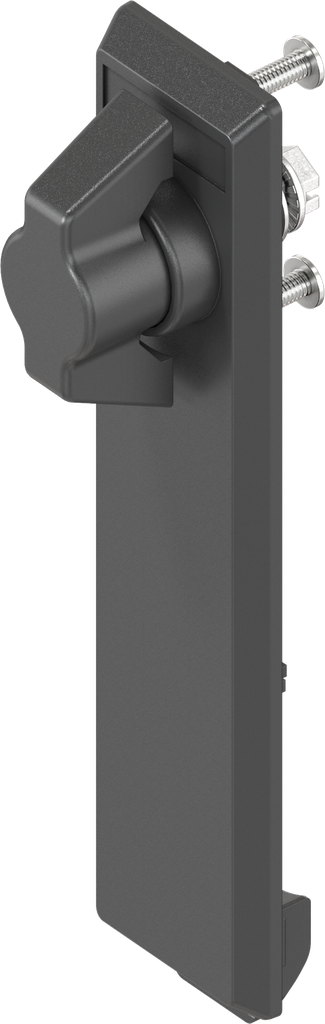

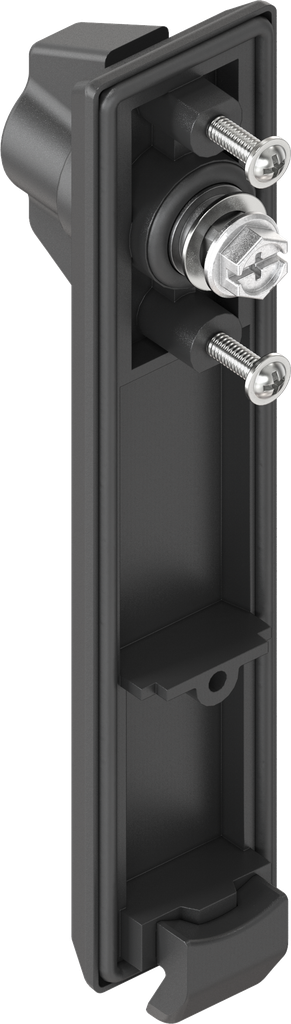

Escutcheon with wing knob, non-keyed, Polyamide black and zinc die black powder-coated; 1123-U1-06

https://www.emka.com/products/1123-u1-06 https://www.emka.com/web/image/product.template/224655/image_1920?unique=f86255a

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40
    Contact Us
    Internal Reference: 1123-U1-06
    Product Type: Escutcheon
    Program: 1123
    Catalog sheet: 3B-180
    Material of the module : Polyamide black and zinc die
    Surface of the module: black powder-coated
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Handle Art: Wing knob
    Locking means key tag: Wing knob without lock
    Key Tag Size: long
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
