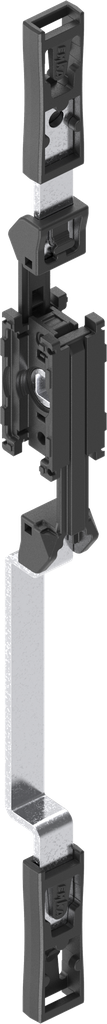

Product Benefits:
- Slim design Very compact construction Lock length, rod connection and stroke corresponds to 1121-U26-K Space saving up to 8 mm in the bending area Patented
- Very compact construction
- Lock length, rod connection and stroke corresponds to 1121-U26-K
- Space saving up to 8 mm in the bending area
- Patented
Product information:

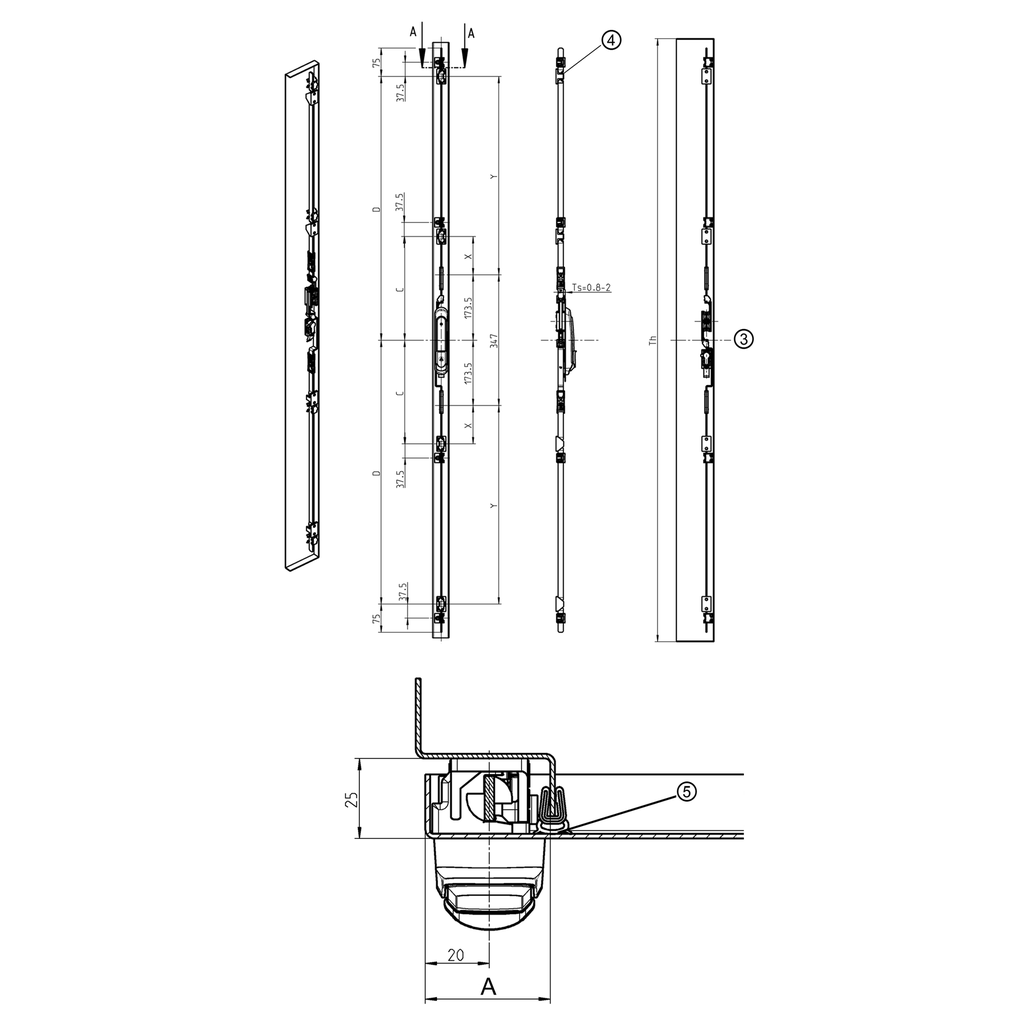

This rod control can be used in conjunction with the swinghandles or escutcheons with hooks from the 1125, 1225 and 1325 programs. Swinghandle and escutcheon with cap are not usable. ① = Quick assembly of the rod ② = The connector has disassembly aids for the upper and lower rod ③ = Center door ④ = All common closure types can be used ⑤ = Seal example: 1011-10 A = 39 mm Swinghandle with hook and profile half cylinder acc. to DIN 18252. A = 37 mm Swinghandle with hook and EMKA profile half cylinder with round cylinder, radial pin cylinder, insert or button. Alternatively, escutcheon with hook.
Swinghandle and escutcheon with cap are not usable.

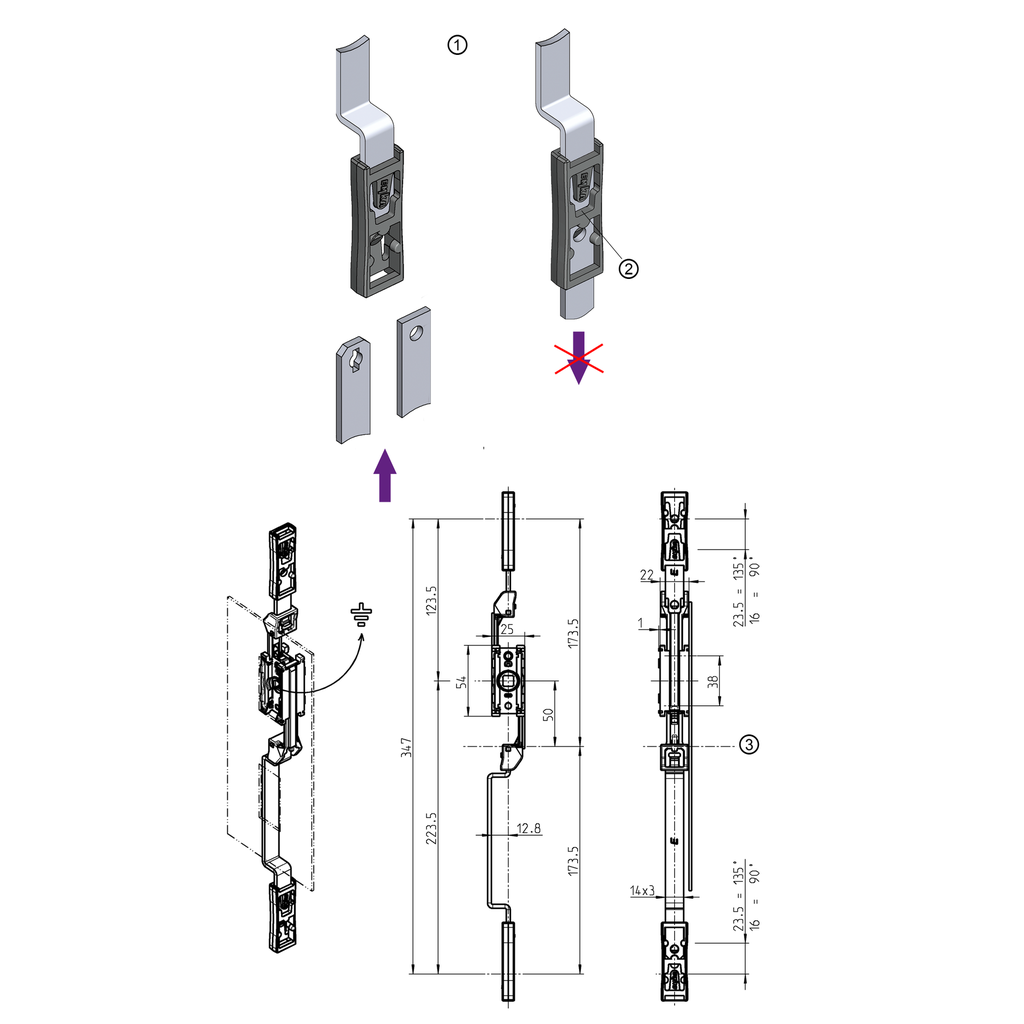

① = Quick assembly of the rod
② = The connector has disassembly aids for the upper and lower rod
③ = Center door
④ = All common closure types can be used
⑤ = Seal example: 1011-10
A = 39 mm
Swinghandle with hook and profile half cylinder acc. to DIN 18252.
A = 37 mm
Swinghandle with hook and EMKA profile half cylinder with round cylinder, radial pin cylinder, insert or button. Alternatively, escutcheon with hook.
Function:
Turn 135° = Stroke 23.5 mm Turn 90° = Stroke 16 mm
