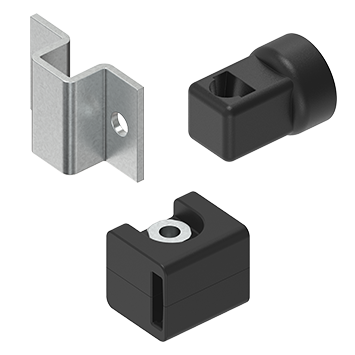

Rod guide for flat rod 14 x 3, Polyamide GF black

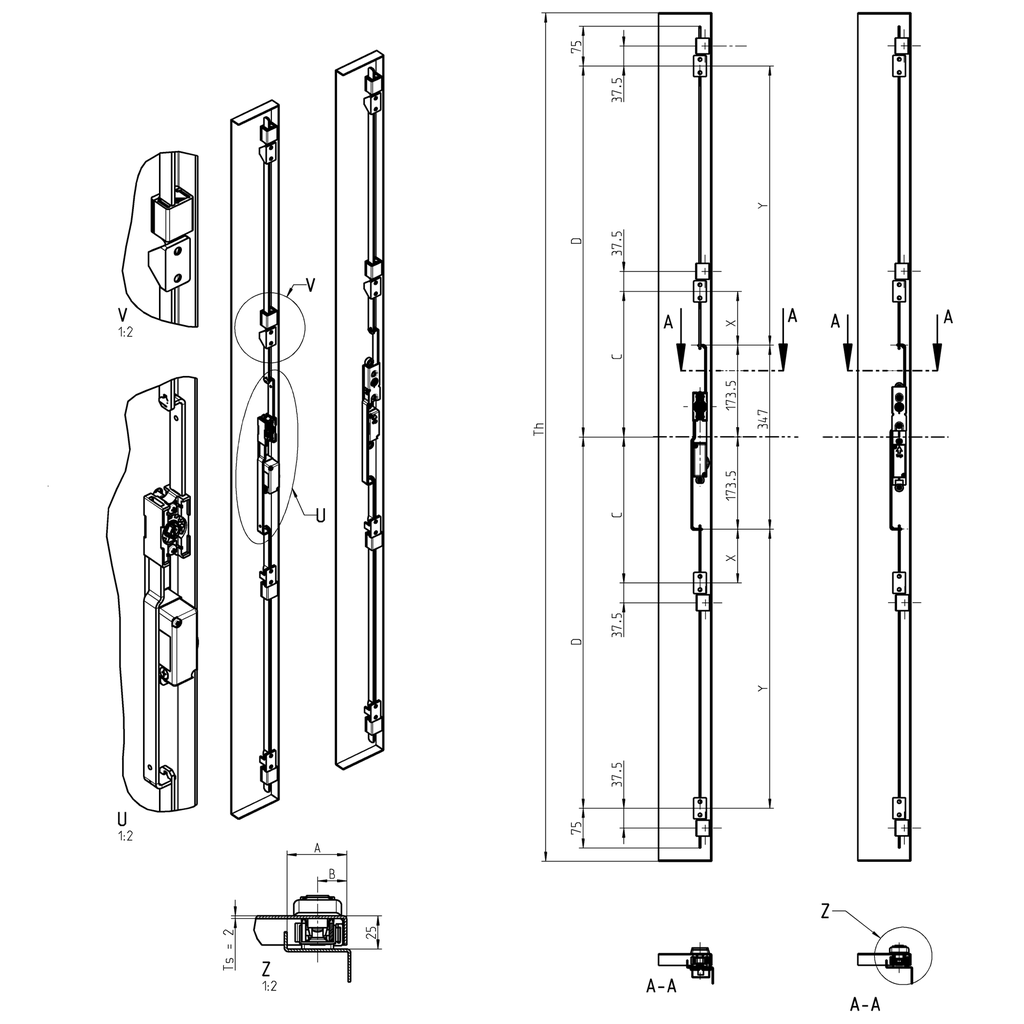

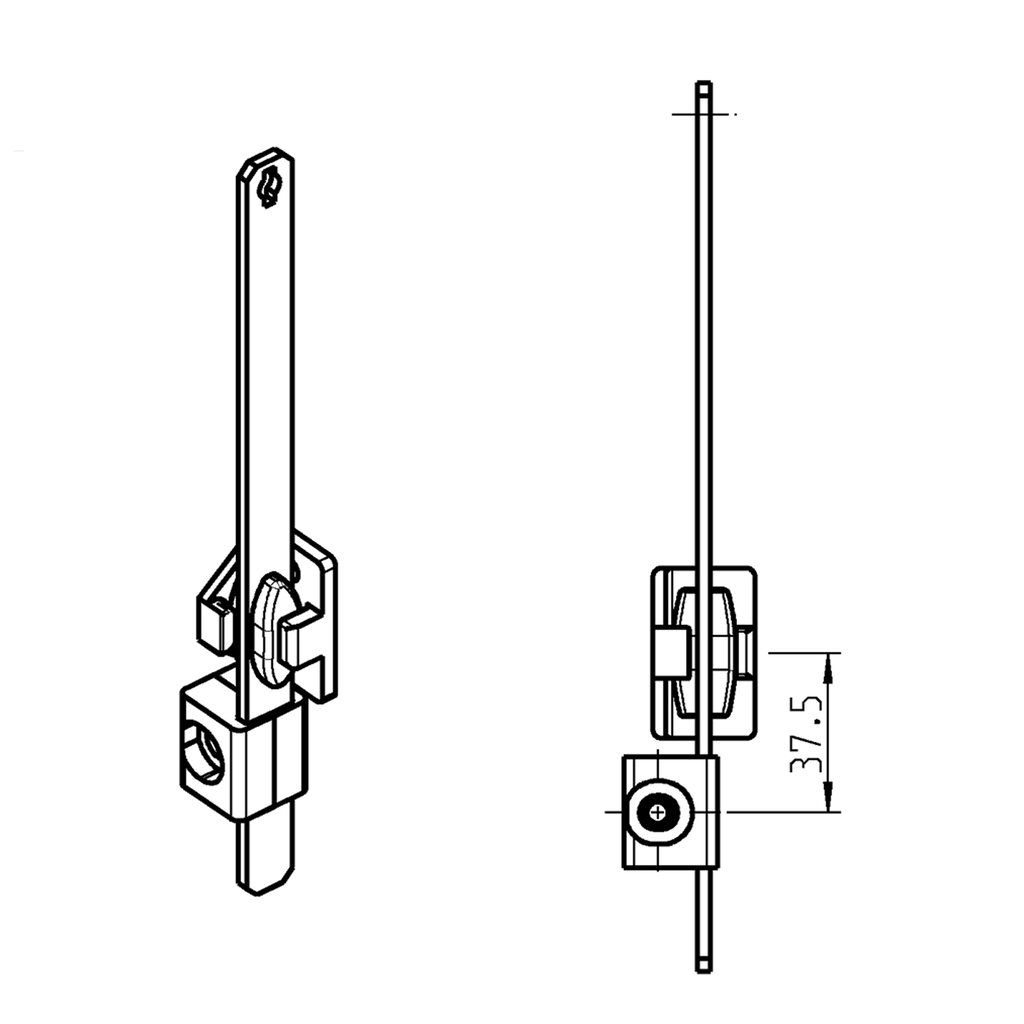

Flat rod with locking slider , Steel zinc-plated
Internal Reference:
1121-U99
Product Type:
Rod
Program:
1121
Catalog sheet:
3ZA-220
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
C Dimension:
D Dimension:
300
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with locking slider
For Door Height:
800-1200
X-Dimension:
Y-Dimension:
126.5
No Specifications
