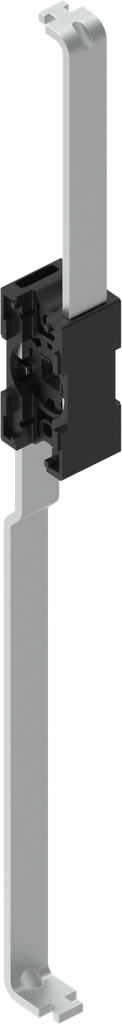

Rod control for flat rods, Aluminium and polyamide black; 1121-U86-C

https://www.emka.com/products/1121-u86-c https://www.emka.com/web/image/product.template/224435/image_1920?unique=4a6ee42

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

    Product information:

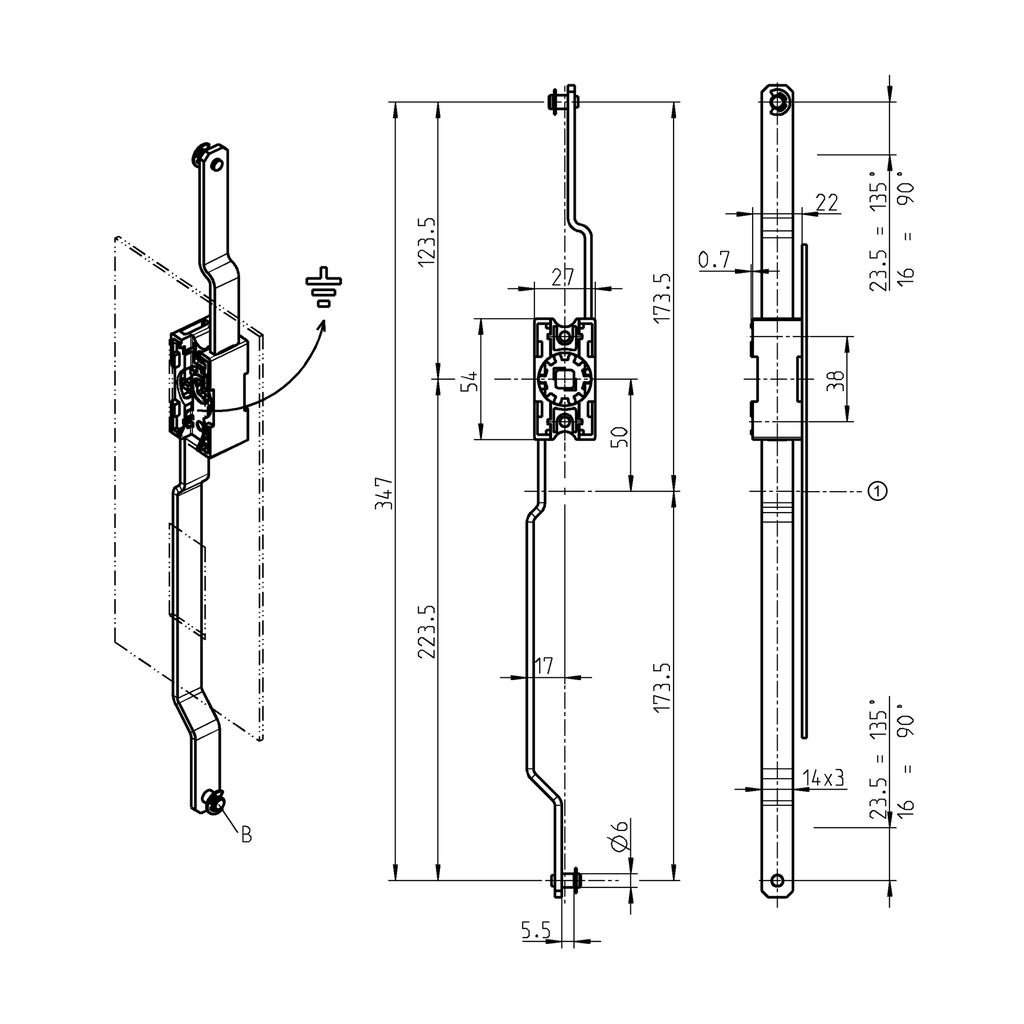

    ① = Center door

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U86-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-120
    Material of the module : Aluminium and polyamide
    Surface of the module: black
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, stamped
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
