Catch for flat rod with notch, Zinc die zinc-plated
Catch for flat rod with notch, Zinc die zinc-plated
Rod guide for flat rod 14 x 3, Polyamide GF black
Rod guide for flat rod 14 x 3, Polyamide GF black

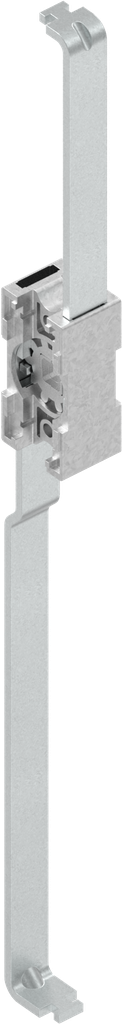

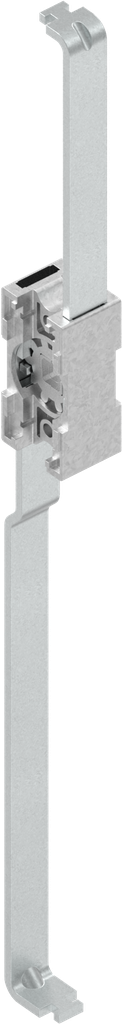

Rod control for flat rods, Zinc die and steel zinc-plated; 1121-U85-C

https://www.emka.com/products/1121-u85-c https://www.emka.com/web/image/product.template/64518/image_1920?unique=6f8901b

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

    Product information:

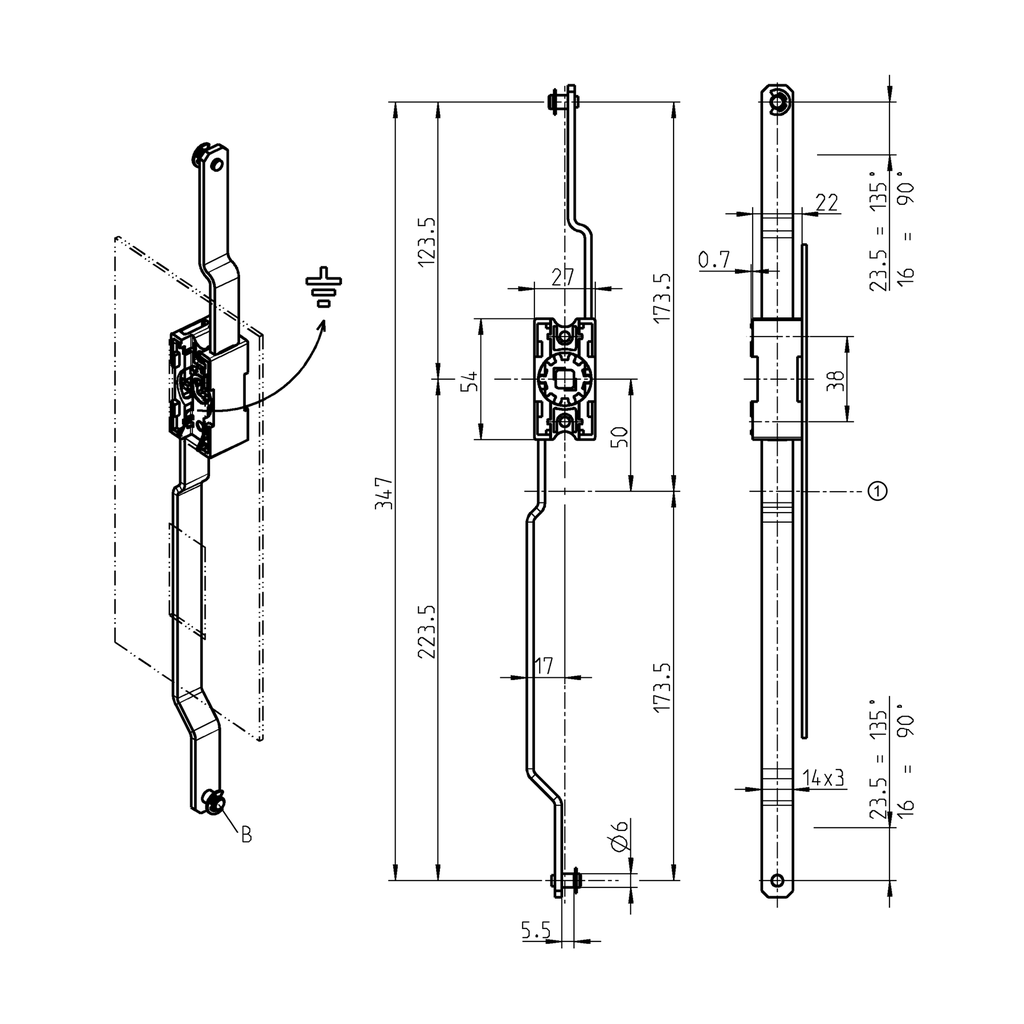

    ① = Center door

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U85-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-120
    Material of the module : Zinc die and steel
    Surface of the module: zinc-plated
    Rod: Flat rod
    Connection rod mount: Rivet in T-shape, stamped
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Rod control accessories
    Escutcheon
    Adapter
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
