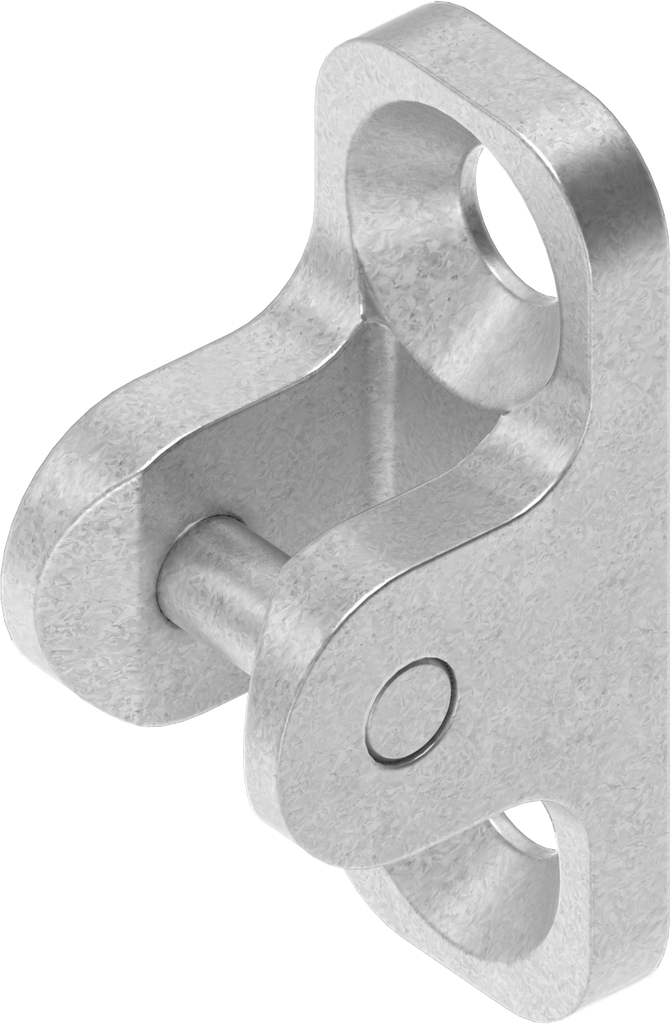

Catch for flat rod with notch, Zinc die zinc-plated; 1121-U76

https://www.emka.com/products/1121-u76 https://www.emka.com/web/image/product.template/64517/image_1920?unique=b21488e

    This combination does not exist.

    Outside the sealing
    Contact Us

    Product information:

    Catch interchangeable with 120° hinge, catalogue page 4A-190, or 180° hinge, catalogue page 4A-210
    Internal Reference: 1121-U76
    Product Type: Catch
    Program: 1121
    Catalog sheet: 3ZA-610
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Type of fastening: for countersunk screw M6
    Mounting Positions : Outside the sealing
    Flat Bar Size: Flat rod 14 x 3
    Countersinking for standard countersunk screws: Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
    Locking system type: Flat rod with notch
