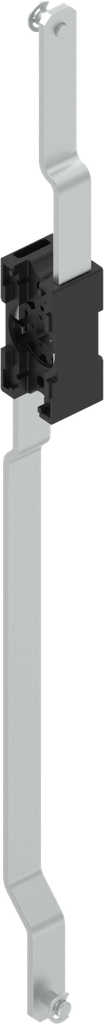

Rod control for flat rods, Polyamide black and aluminium; 1121-U53-C

https://www.emka.com/products/1121-u53-c https://www.emka.com/web/image/product.template/224386/image_1920?unique=2ec4edc

for double cylinder swinghandle, Program 1125

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Product information:

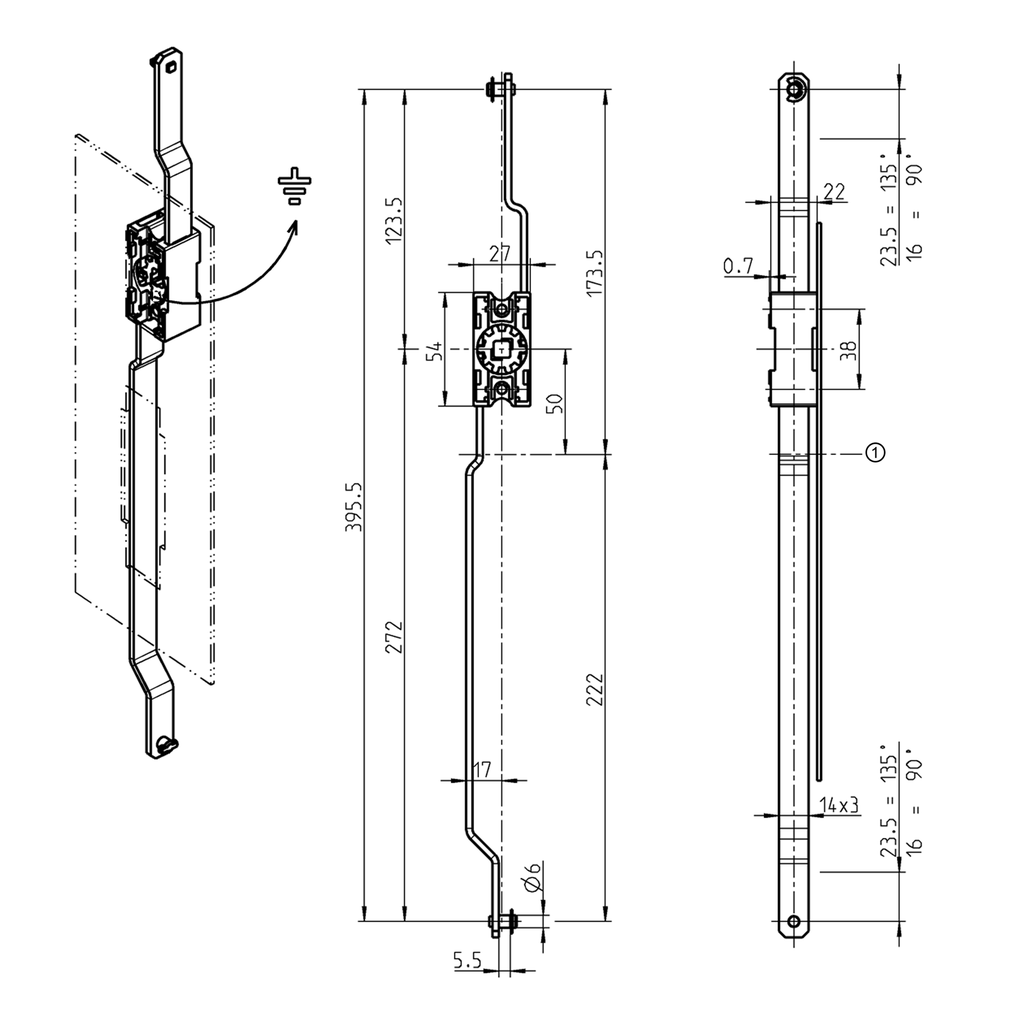

    ① = Center door

    Function:

    Turn 135° = Stroke 23.5 mm Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U53-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-220
    Material of the module : Polyamide black and aluminium
    Rod: Flat rod
    Connection rod mount: Rivet Ø 6 with circlip
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam

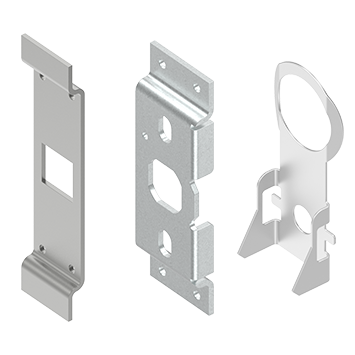

    Rod control accessories
    Adapter
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
