Insert square 7, Stainless steel AISI 316
Insert square 7, Stainless steel AISI 316
Round rod L = 1101 - 1200 mm, Steel zinc-plated
Round rod L = 1101 - 1200 mm, Steel zinc-plated

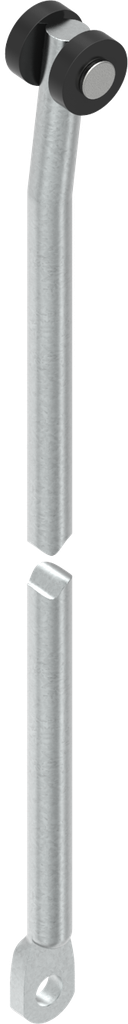

Round rod L = 1001 - 1100 mm, Steel zinc-plated; 1121-U30-07

https://www.emka.com/products/1121-u30-07-round-rod-l-1001-1100-mm-steel-zinc-plated-348556 https://www.emka.com/web/image/product.template/348556/image_1920?unique=334032e

    This combination does not exist.

    Inside the sealing
    No stock item, please ask for availability

    Order / Calculation example:

    Order no. for a round rod with eye and a length of 1034 mm = 1121-U30-L 1034
    Internal Reference: 1121-U30-07
    Barcode: 1121-U00030-0000007
    Product Type: Rod
    Program: 1121
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Mounting Positions : Inside the sealing
    Dimension L up to: 1100 mm
    Dimension L from: 1001 mm
    Round bar inside the seal: Round rod with shoe and eye for rod control
    No Specifications
    View All Products
    Rod guide
    Rod control

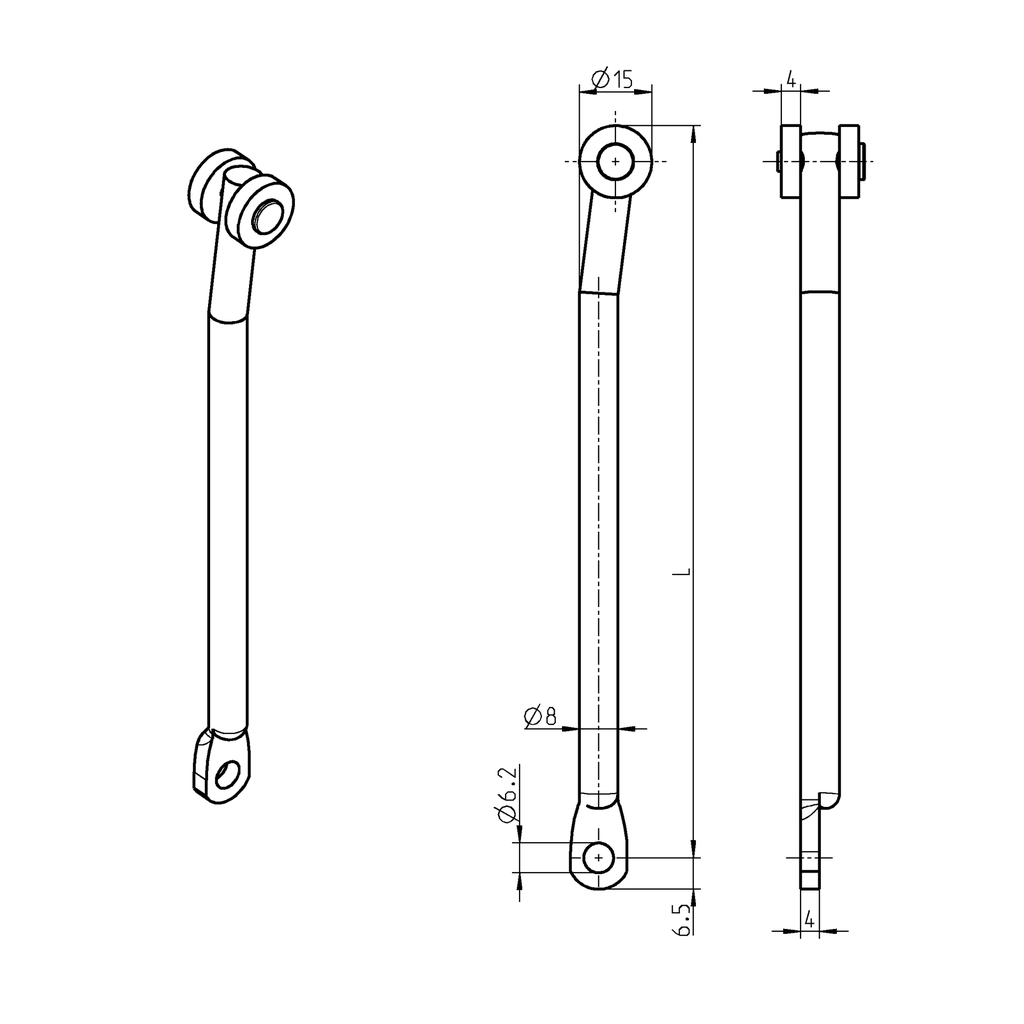

    Here you can find the product data sheets and CAD files of this product
