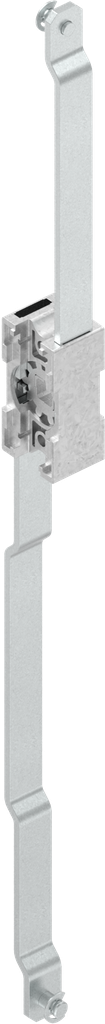

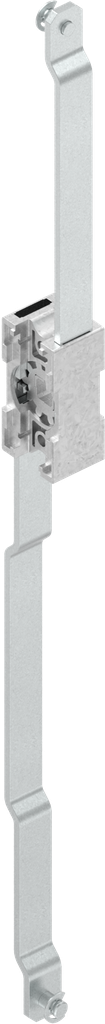

Rod control for round rods, Zinc die and steel zinc-plated; 1121-U29-C

https://www.emka.com/products/1121-u29-c https://www.emka.com/web/image/product.template/64508/image_1920?unique=74802d6

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

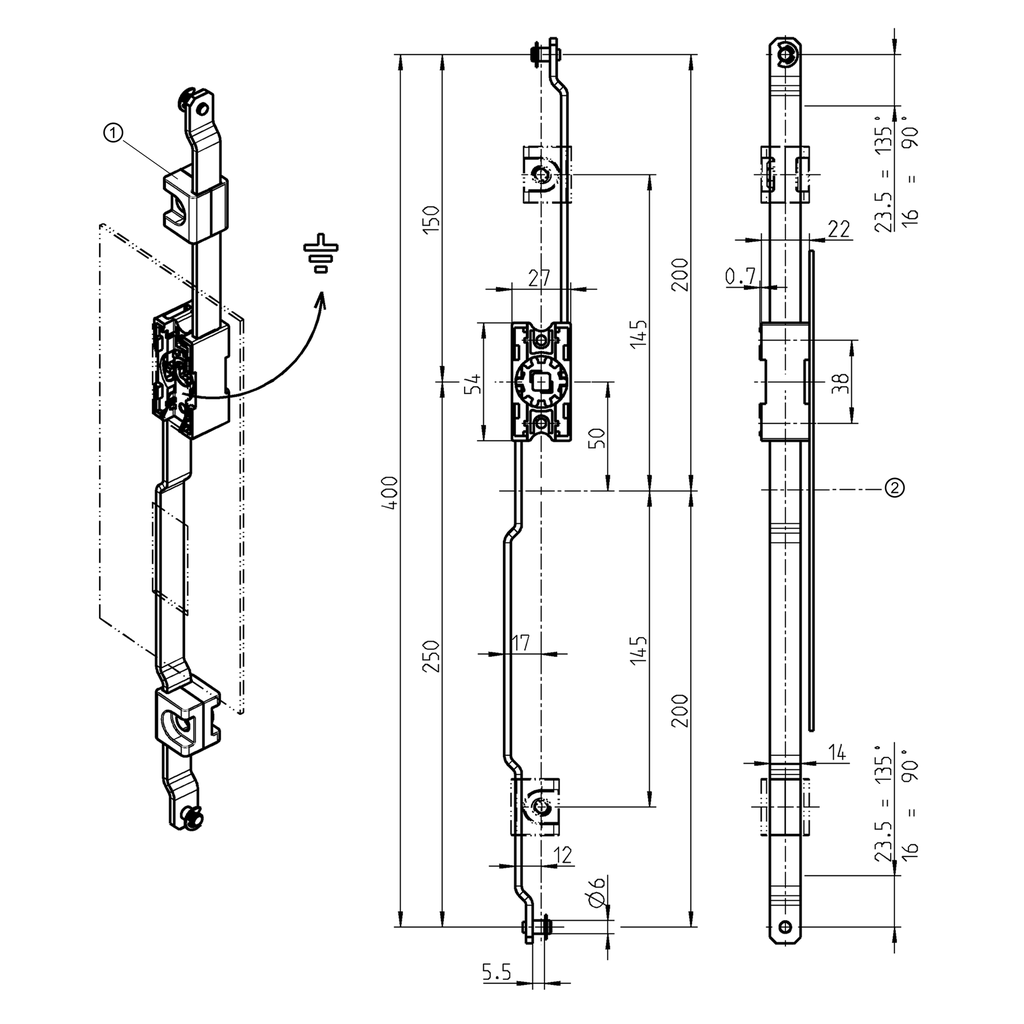

    Product information:

    ① = Rod guide for flat rod (not in scope of delivery)
    ② = Center door

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U29-C
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-140
    Material of the module : Zinc die and steel
    Surface of the module: zinc-plated
    Rod: Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
