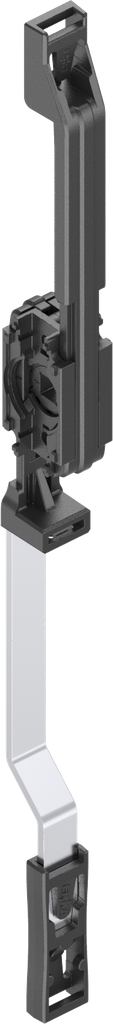

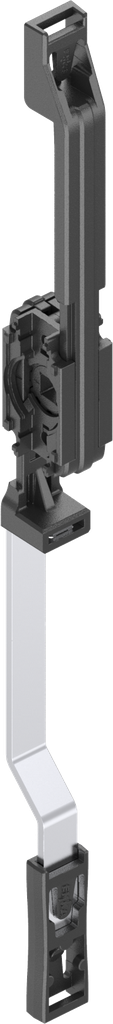

Rod control for flat rods, Made of high-quality plastic combination black; 1121-U26-K

https://www.emka.com/products/1121-u26-k https://www.emka.com/web/image/product.template/64506/image_1920?unique=c9c240e

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

    Product information:

    ① = Center cut out

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U26-K
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-110
    Material of the module : Made of high-quality plastic combination
    Surface of the module: black
    Rod: Flat rod
    Connection rod mount: Rivet clip-in, quick mounting
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Quick assembly of rod: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod
    Rod control accessories
    Escutcheon
    Adapter
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-110
    Product data sheet
    CAD file | 1121-U26-K_igs
    CAD file | 1121-U26-K_stp
