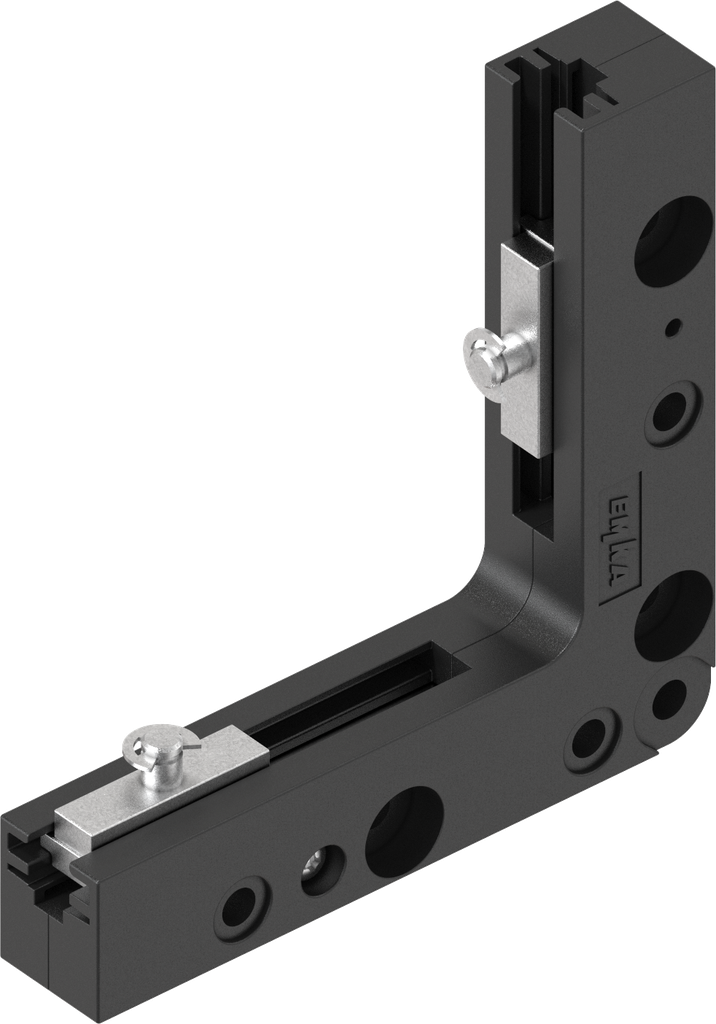

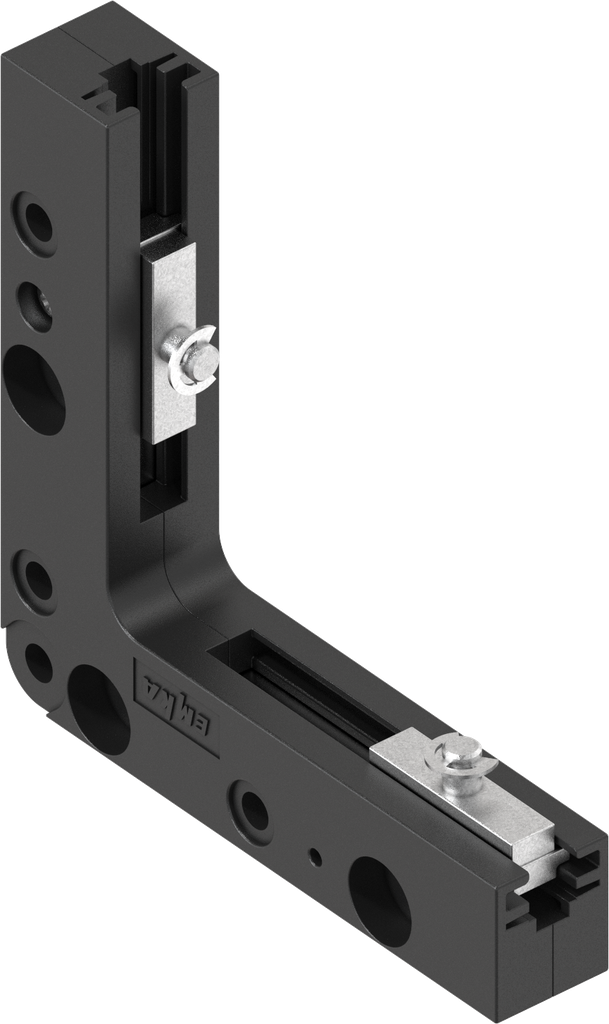

Corner guide outside the sealing, Polyamide black and zinc die; 1121-U206

https://www.emka.com/products/1121-u206 https://www.emka.com/web/image/product.template/224528/image_1920?unique=4359fc0

for multiple interlocking

    This combination does not exist.

    Outside the sealing
    Contact Us

    Product information:

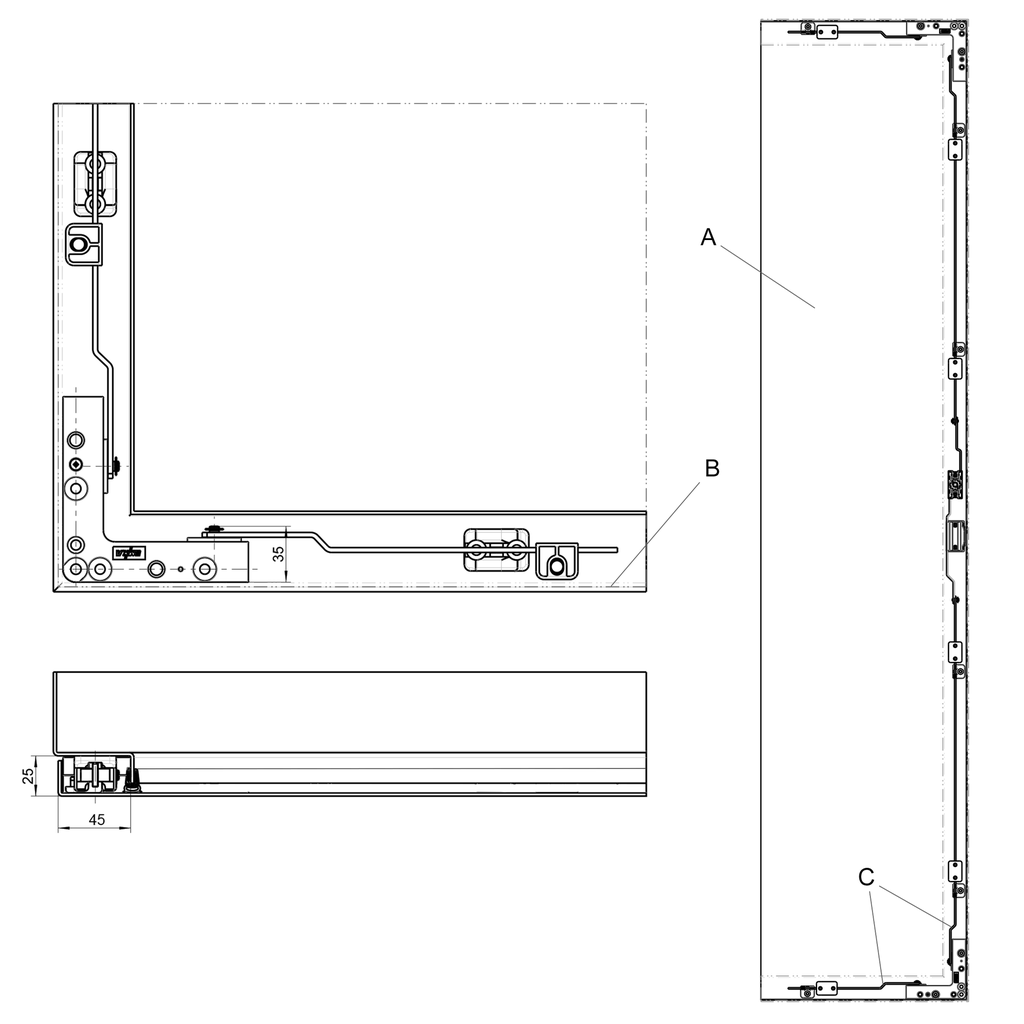

    A = Door shown from the inside
    B = Door shown invisible
    C = Rods suitable for the programs 1125, 1150, 1160, 1180, 1190, 1225, 1325, 2100, 2225, 2400 and 3000 as requested individually!

    Assembly instruction:

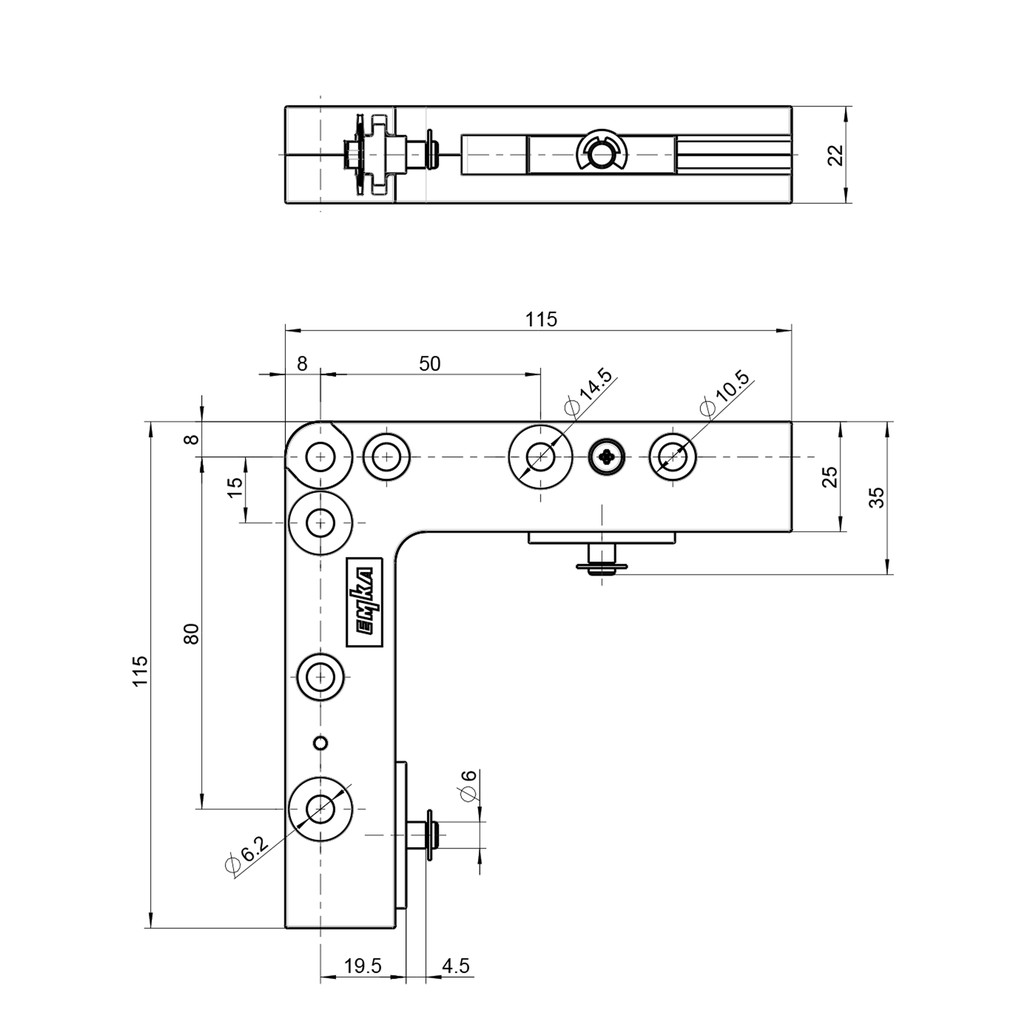

    Corner guide for weld stud M6x20 or blind rivet
    Internal Reference: 1121-U206
    Product Type: Corner guide
    Program: 1121
    Catalog sheet: 3ZA-1120
    Material of the module : Polyamide black and zinc die
    Adapter for connecting rod: 90° turn for flat rods / rods
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points, 4 point, More than 4 points available on request
    Article with property rights: Yes
    Mounting Positions : Outside the sealing
    Flat Bar Outside: Flat rod individually by choice on request
    Stroke of the drive: Stroke 48.9 mm
