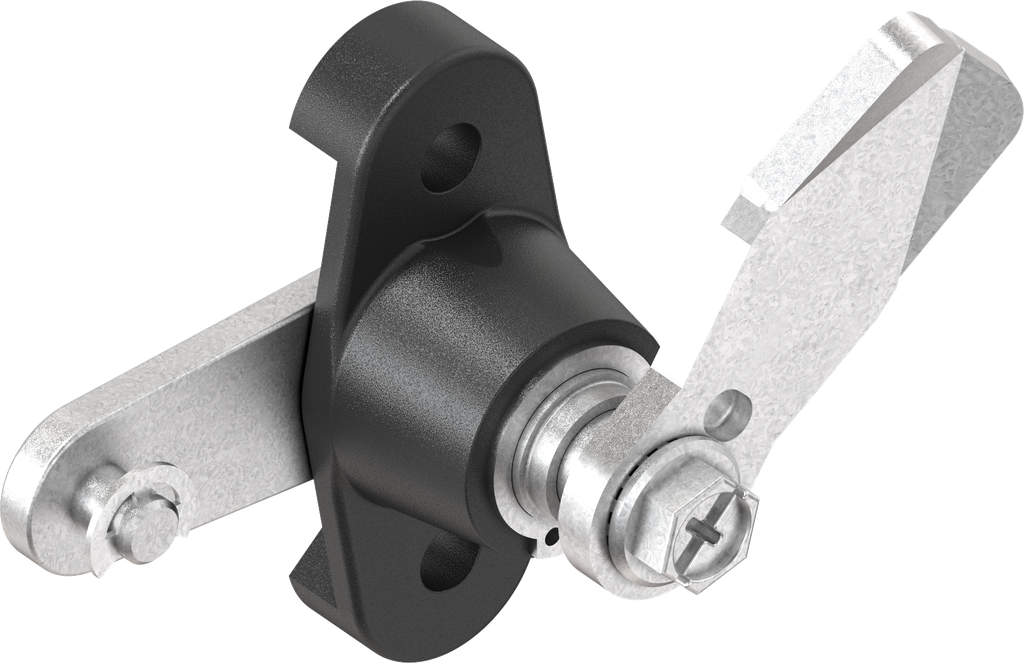

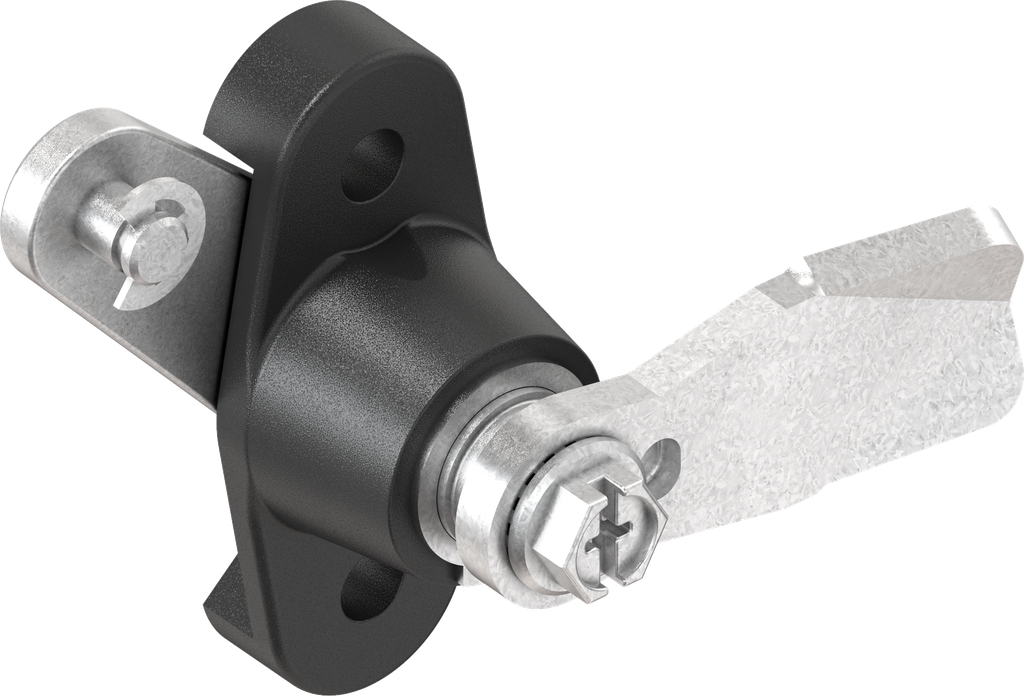

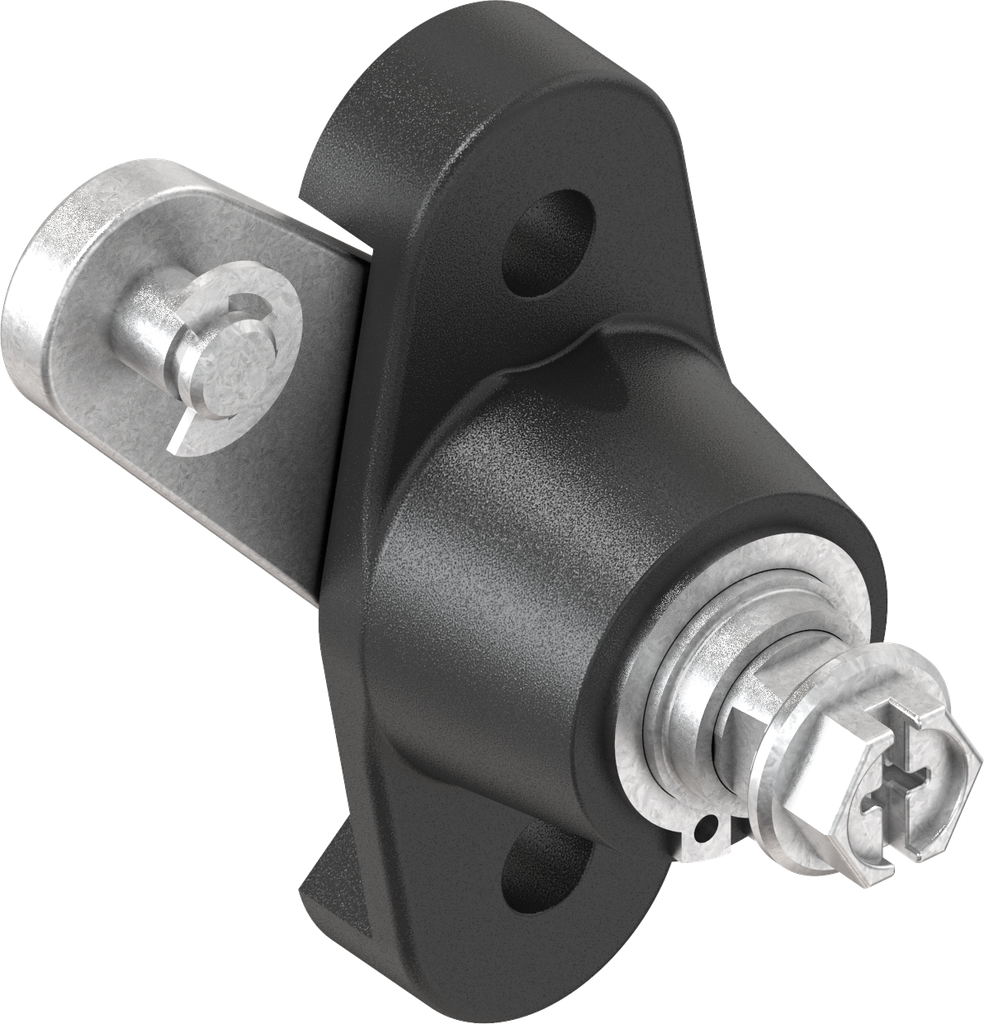

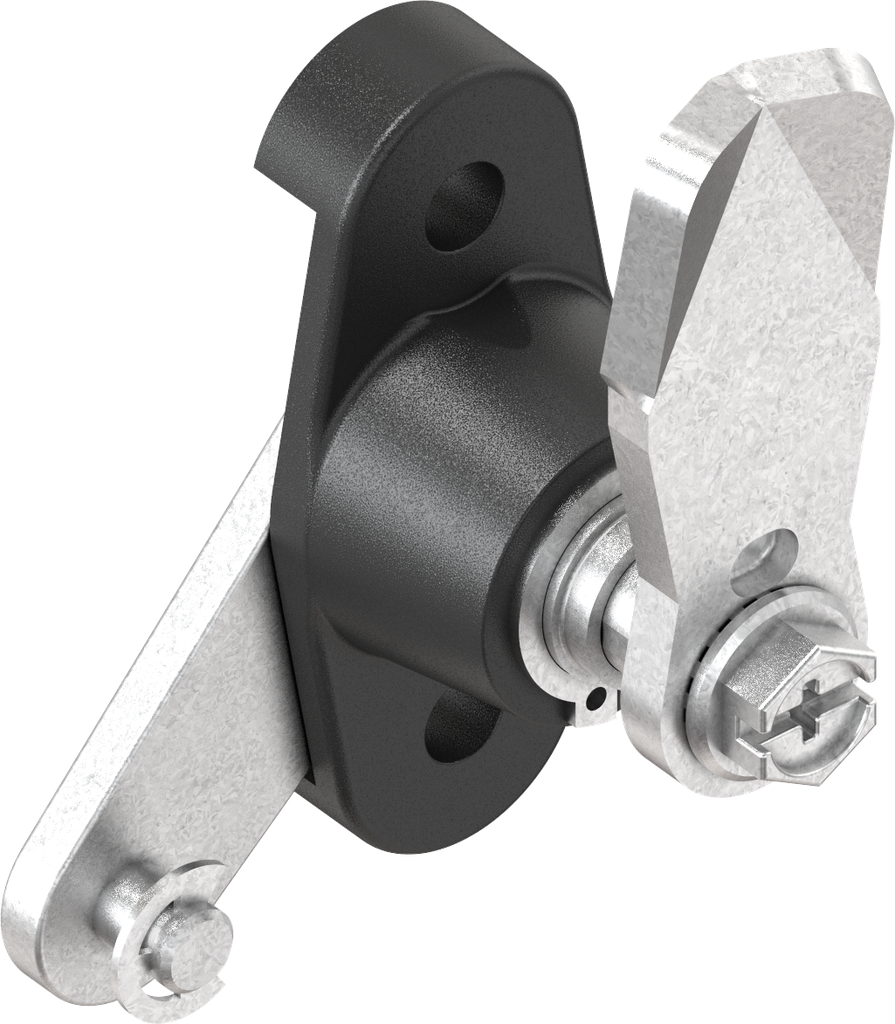

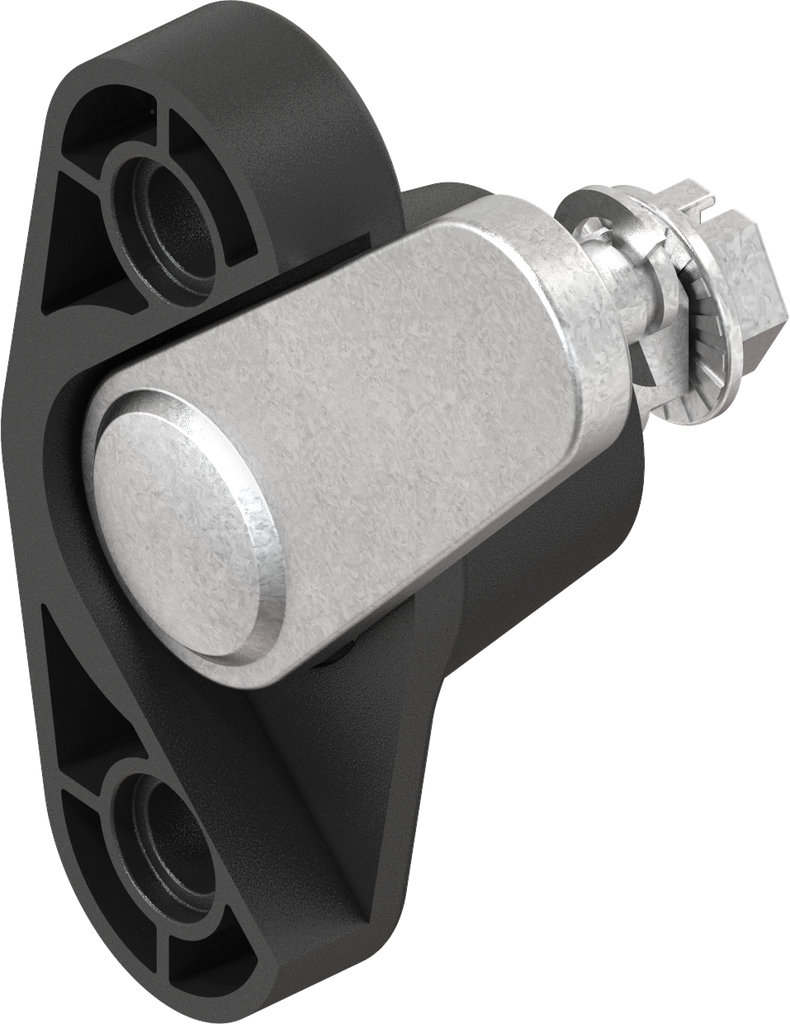

Locking point with compression function for multiple interlocking, left version, Polyamide black and zinc die; 1121-U204
for swinghandles, quarter turns and HVACR systems
Product Benefits:
- Compression function Locking system and cut out independent of compression latch system Corner guide can be used for additional locks in transverse installation High closing comfort Patented
- Locking system and cut out independent of compression latch system
- Corner guide can be used for additional locks in transverse installation
- High closing comfort
- Patented
Product information:

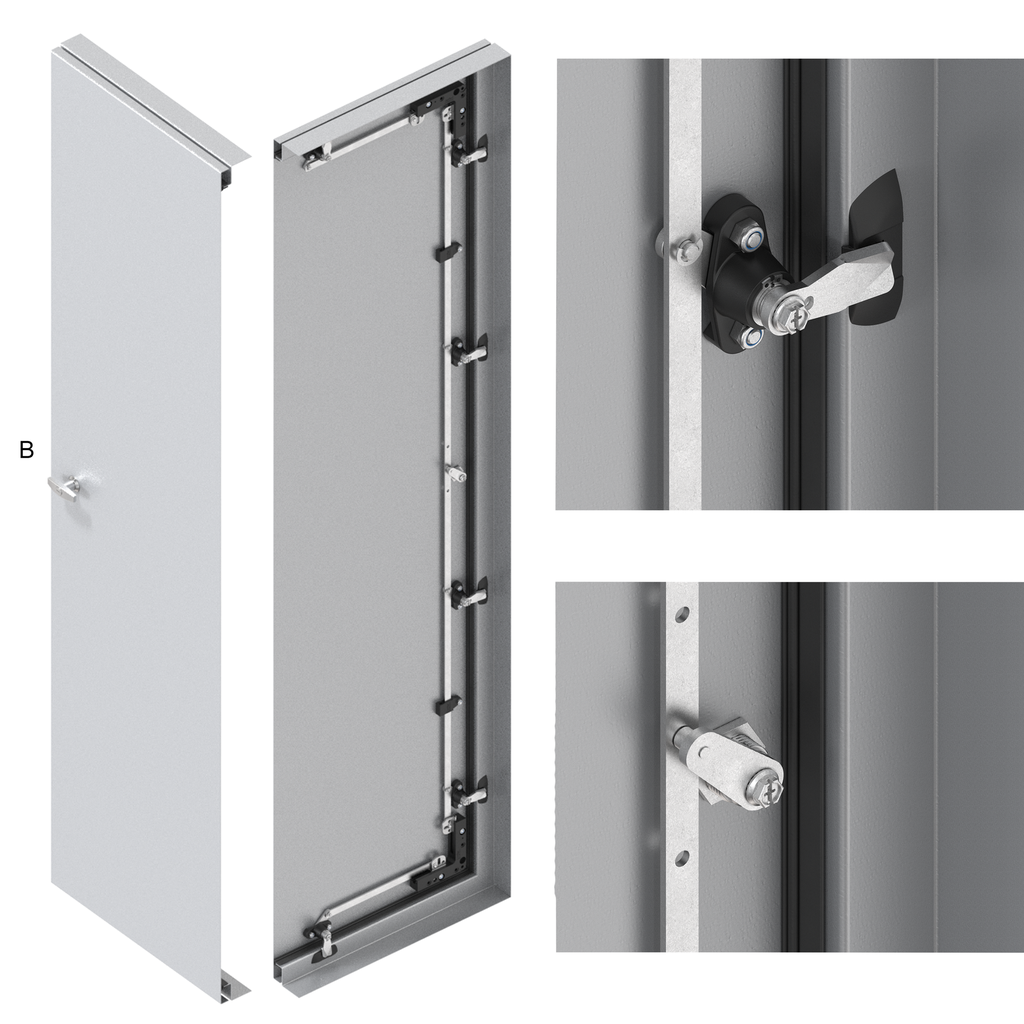

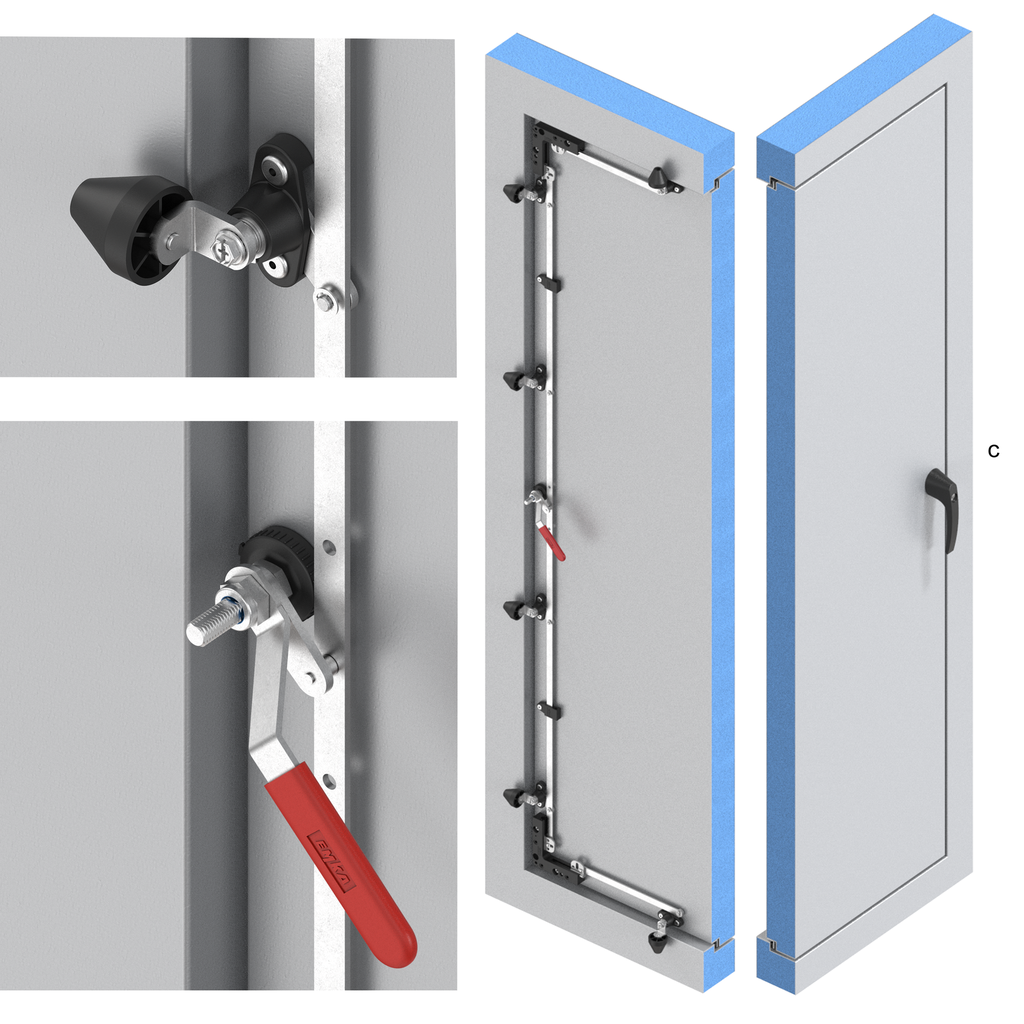

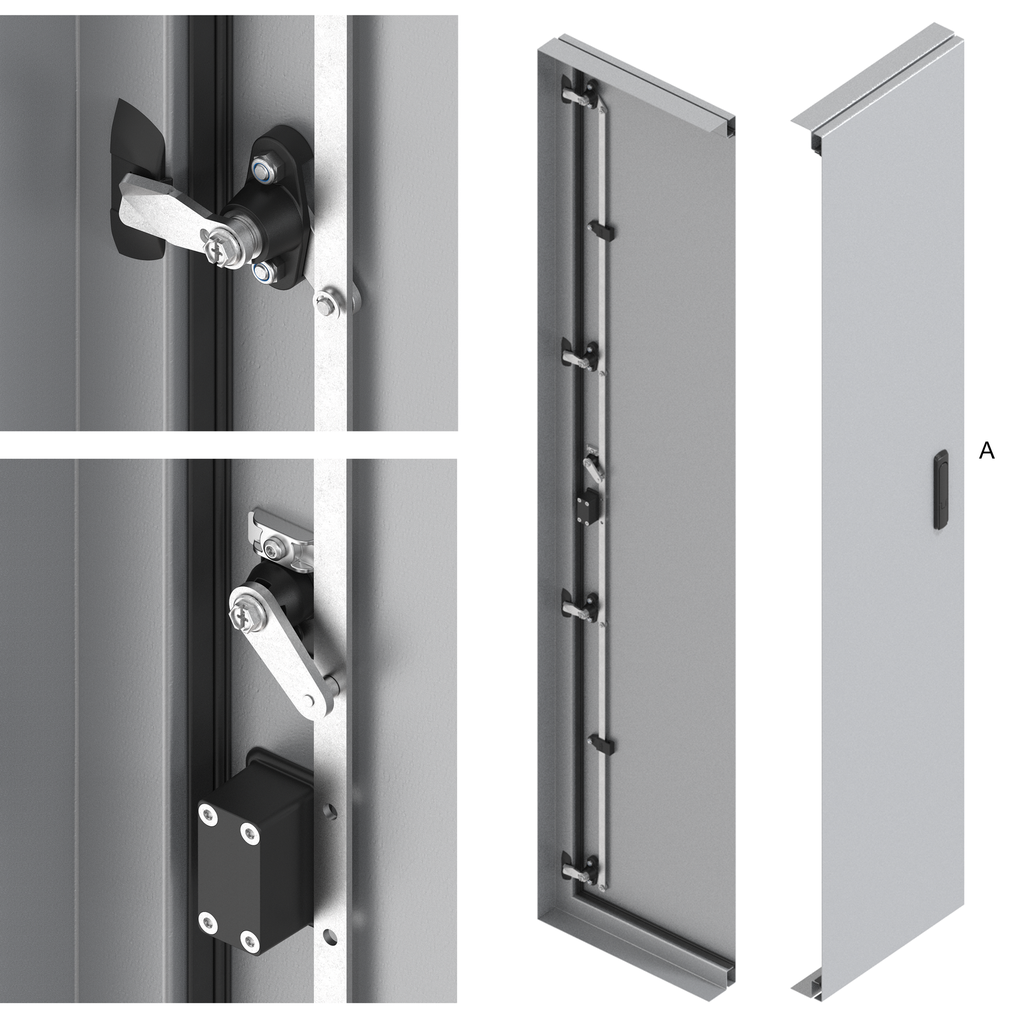

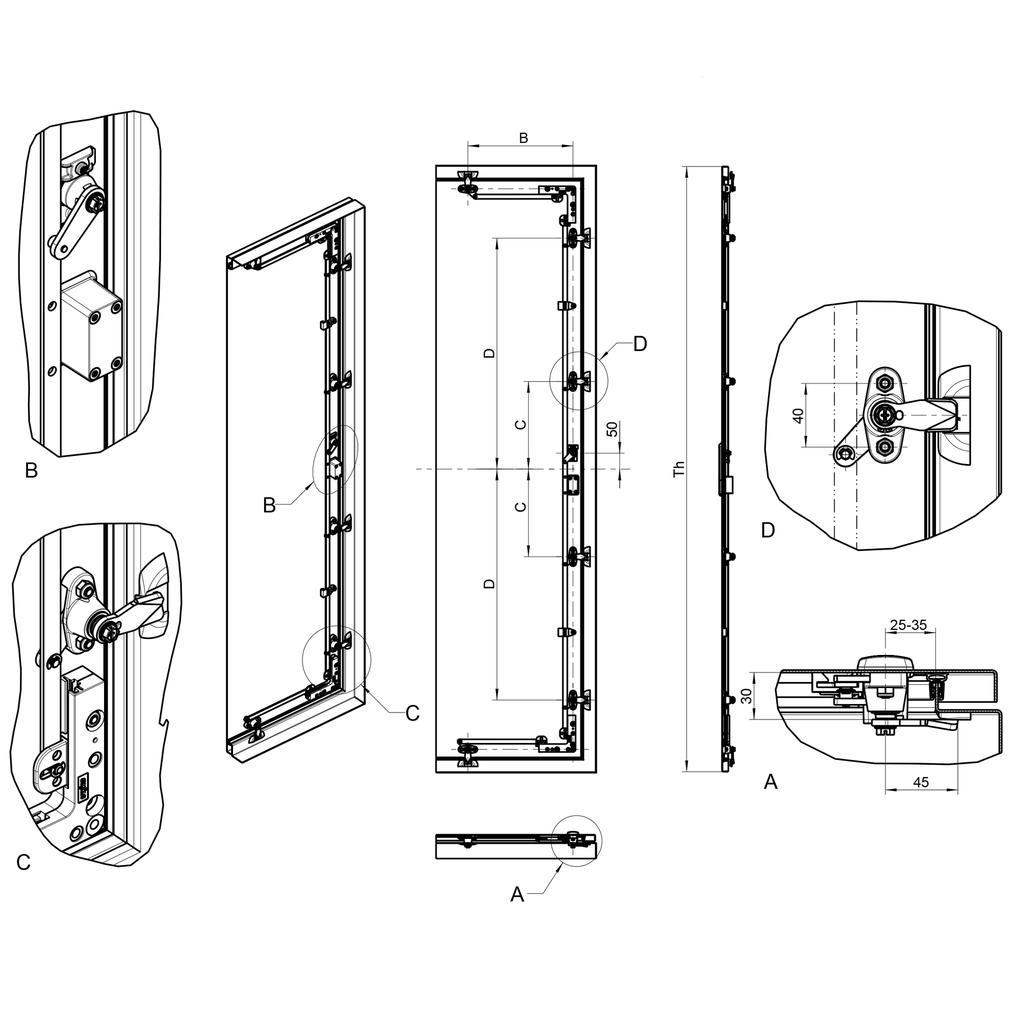

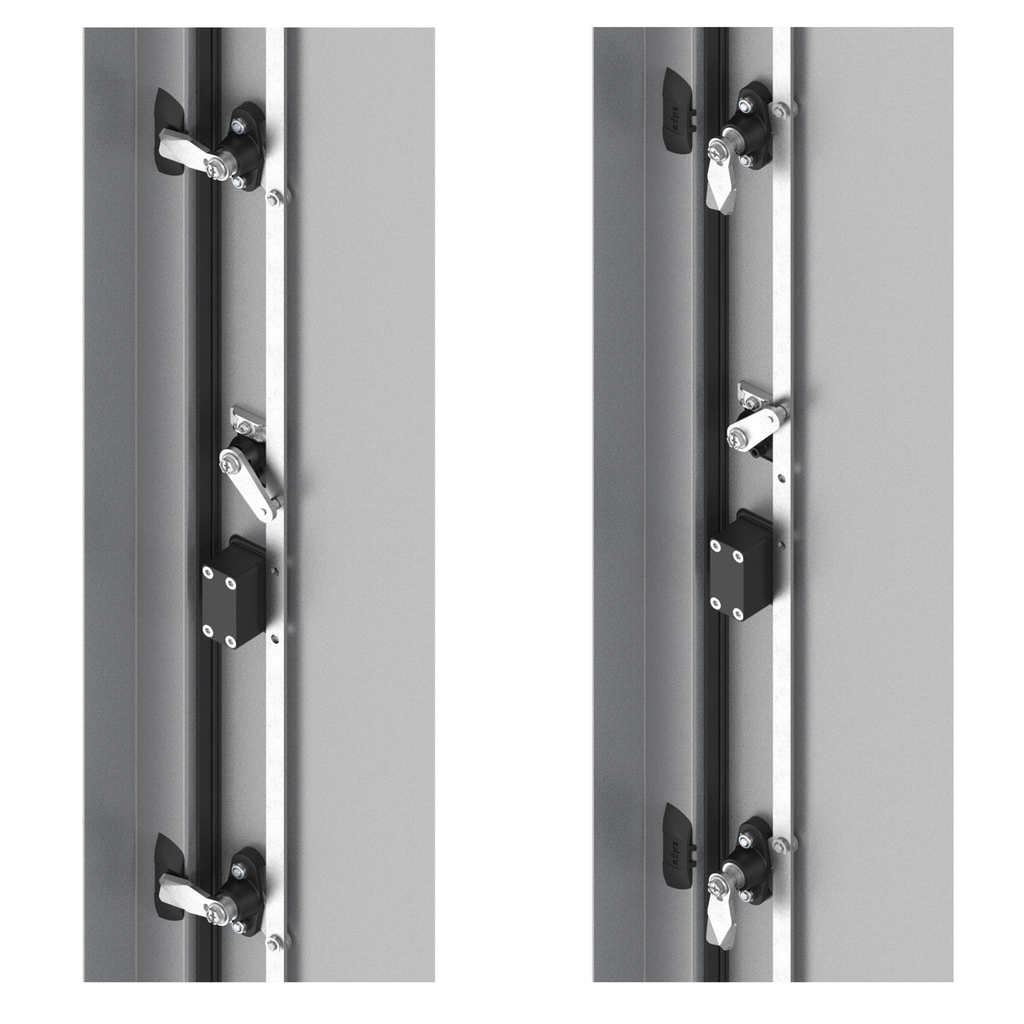

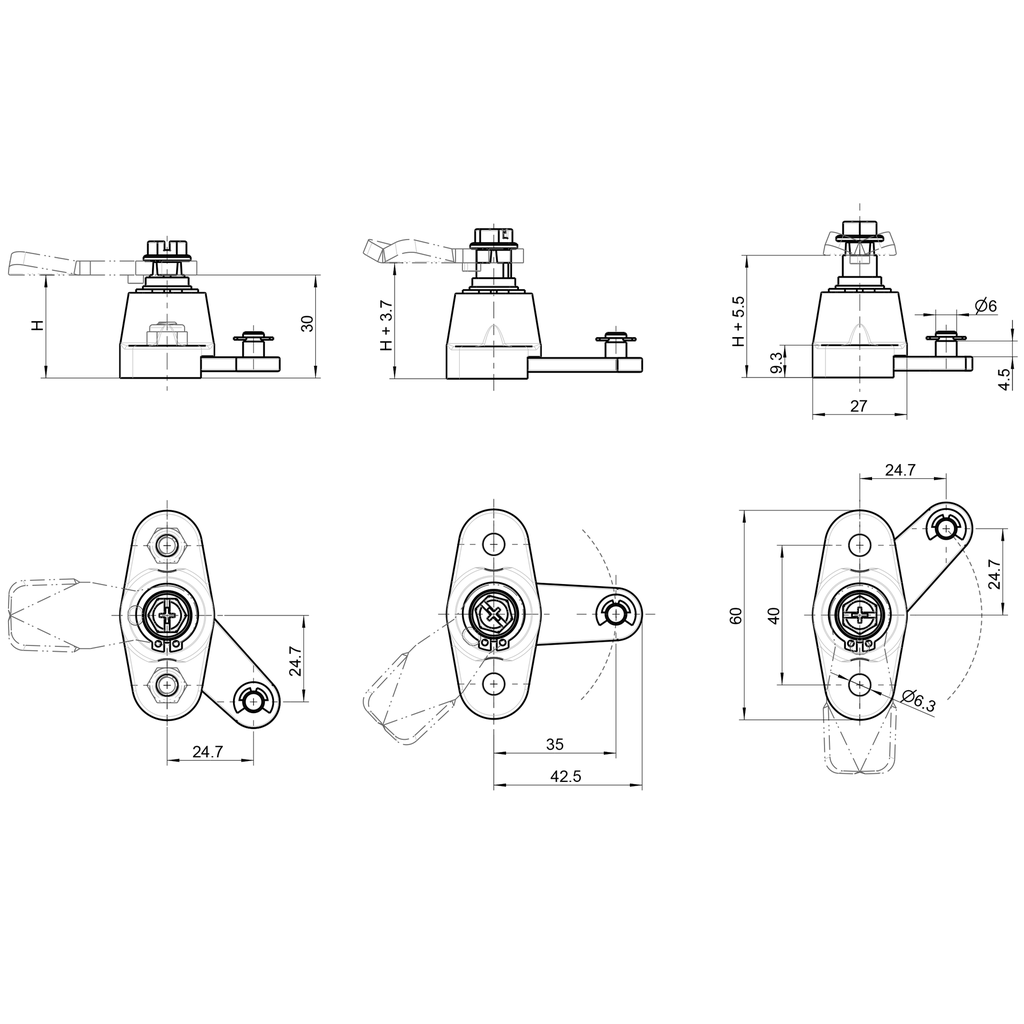

Locking point for compression latch system Left version for (A) swinghandle with GH = 18 and (C) HVACR systems with modular locking system Right version for (B) quarter turn with GH = 18 with classic opening direction from 3 to 12 o'clock For systems with corner guide, the connecting rods must be adapted to the respective door height.
For systems with corner guide, the connecting rods must be adapted to the respective door height.
Assembly instruction:
Locking point for weld stud M6x16 or blind rivet
Order / Calculation example:
Compression value calculation example 1: Locking point 1121-U203 and - U204 = 4 mm Cam e.g. 1000-17 = 3 mm Ramp 1000-U858 = 4 mm Total compression value = 11 mm Compression value calculation example 2: Locking point 1121-U203 and -U204 = 4 mm Roller cam big 1000-U897 = 10 mm Ramp 1000-U858 = 4mm Total compression value = 18 mm
Compression value calculation example 2:
Locking point 1121-U203 and -U204 = 4 mm
Roller cam big 1000-U897 = 10 mm
Ramp 1000-U858 = 4mm
Total compression value = 18 mm
