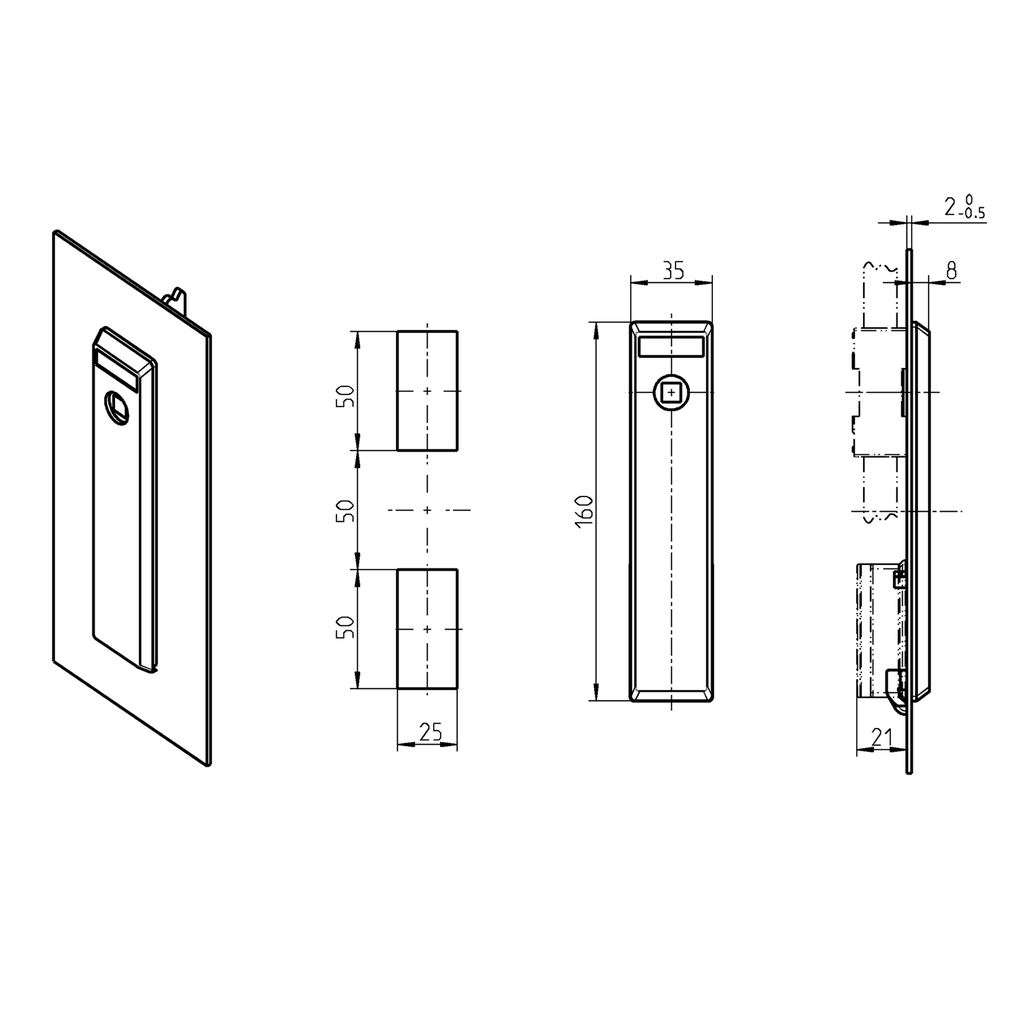

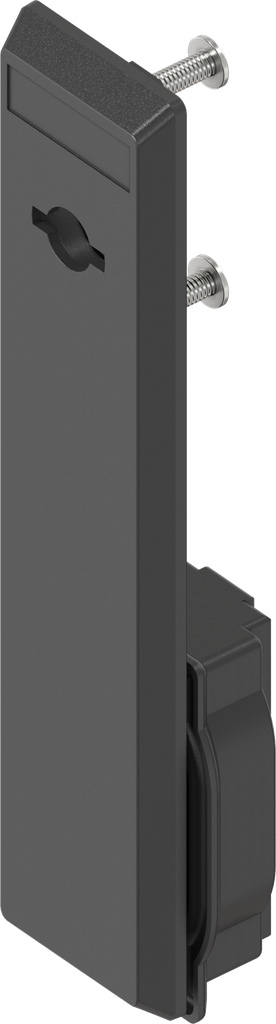

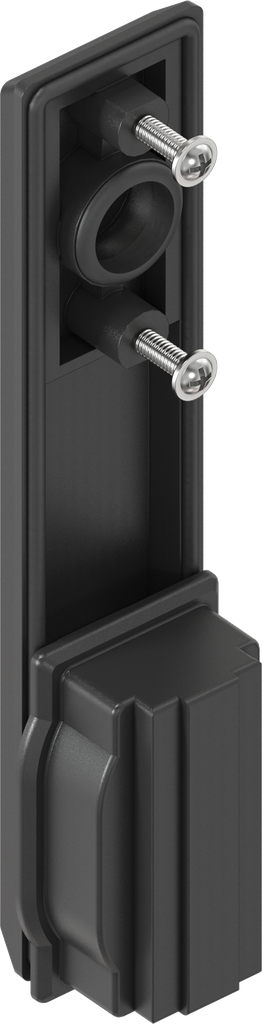

Escutcheon long for double bit, Polyamide GF black; 1121-U20-N6

https://www.emka.com/products/1121-u20-n6 https://www.emka.com/web/image/product.template/348557/image_1920?unique=0705b63

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40
    Contact Us
    Internal Reference: 1121-U20-N6
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert double bit
    Key Tag Size: long
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Rod control
    Insert
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3B-120
    CAD file | 1121-U20-N6_igs
    CAD file | 1121-U20-N6_stp
