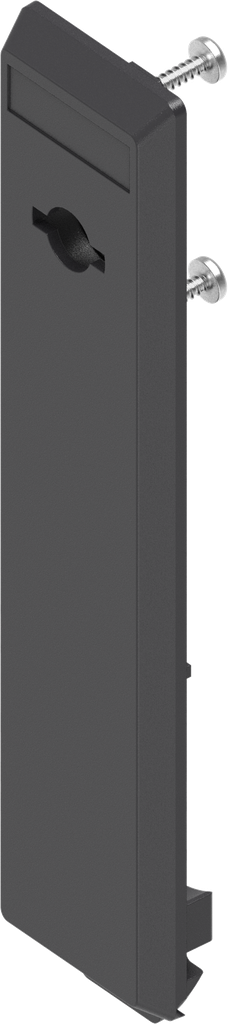

Escutcheon long for double bit, Polyamide GF black; 1121-U20-06

https://www.emka.com/products/1121-u20-06 https://www.emka.com/web/image/product.template/64499/image_1920?unique=64567ad

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 40
    Contact Us
    Internal Reference: 1121-U20-06
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert double bit
    Key Tag Size: long
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products

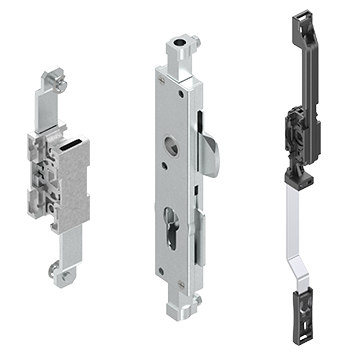

    Rod control
    Insert
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
