Adapter for cams, Stainless steel AISI 316L
Locking set with 8 locking points, Polyamide GF silver grey metallic
Product Benefits:
- The catch bracket extends the catch area from 8.5 mm auf 13 mm
- Ensures that the double roller is hooked in the catch before the seal is compressed
- Fixing with only one screw instead of two
- Exchangeable with the previous catch 1121-18-02
- Rod guide remains in former position
- High-level locking convenience
- Patented
Product information:
② = Flat rod with double roller for catch with catch bracket
③ = Catch bracket
④ = Rod guide
This catch can only be used together with the flat rod with double roller for catch with catch bracket
Internal Reference:
1121-U194
Product Type:

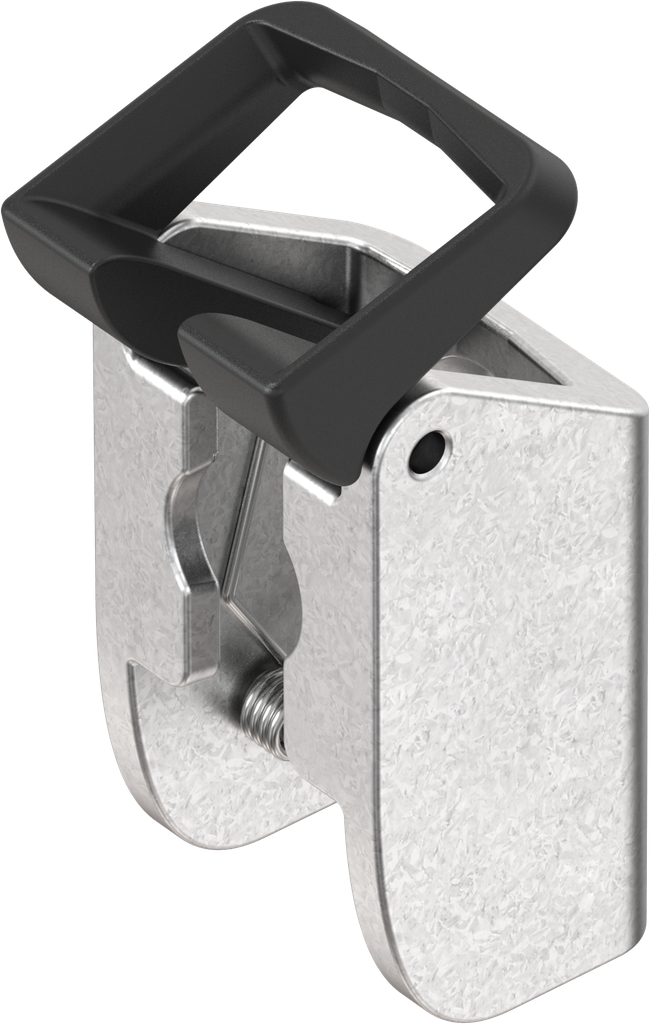

Catch
Program:
1121
Catalog sheet:
3ZA-1210
Material of the module :
Zinc die and polyamide
Surface of the module:
zinc-plated
Article with property rights:
Yes
Type of fastening:
for countersunk screw M6
Mounting Positions :
Outside the sealing
Flat Bar Size:
Flat rod 14 x 3
With catch bracket and extended catch range:
Yes
Countersinking for standard countersunk screws:
Countersink for countersunk screw M6x... according to DIN ISO 2009, 2010, 7046-1, 7046-2, 7047
Locking system type:
Flat rod with double roller
No Specifications
