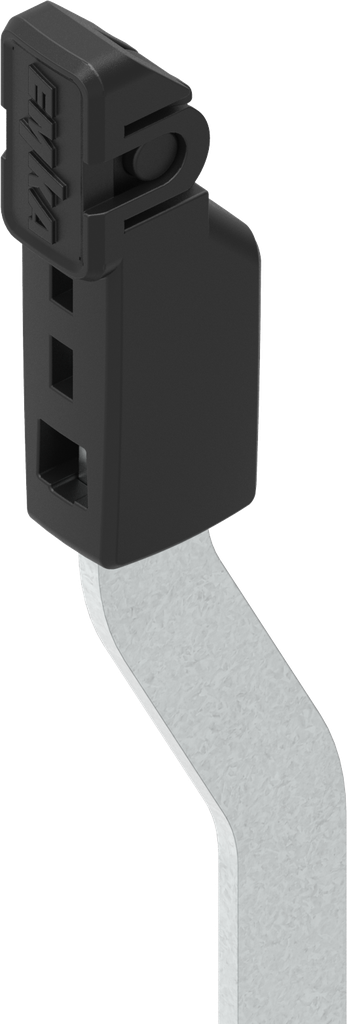

Flat rod L = 1101 - 1200 mm with guiding shoe, completely assembled, Steel zinc-plated
Corner guide outside the sealing, Polyamide black and zinc die
Flat rod without bore hole L = 1007.5 mm with guiding shoe, completely assembled, Steel zinc-plated; 1121-U189
Product Benefits:
Flat rod for length adjustment
(cannot be used with rod control with T-rivet)
Product information:

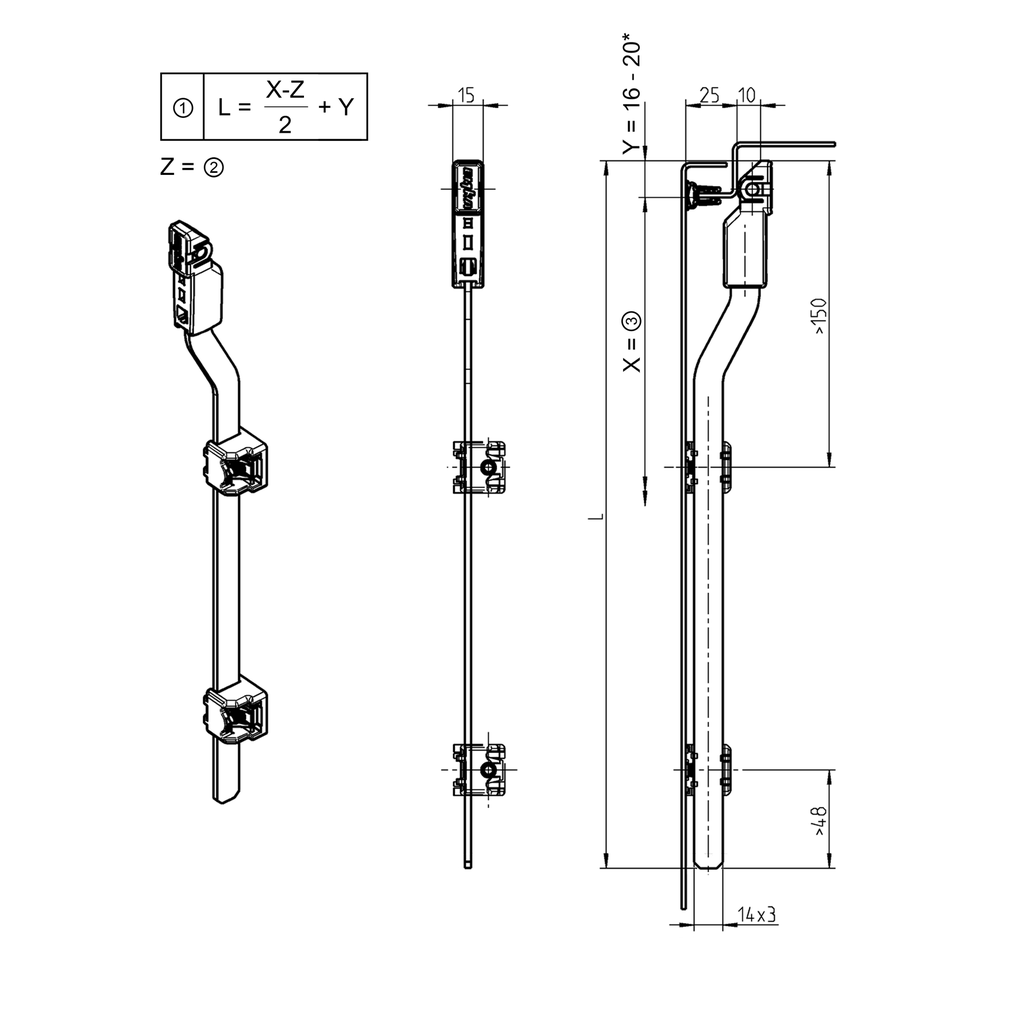

① = Calculation of the rod length L
② = Rod control length ( e.g. dimension 347 on catalogue page 3YA-120 )
③ = Clear height
* = Dimension Y depending on type of seal
Internal Reference:
1121-U189
Product Type:
Rod
Program:
1121
Catalog sheet:
3ZB-200
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with shoe for rod control
Compression Value :
10 mm
Dimension L:
1007.50 mm
No Specifications
