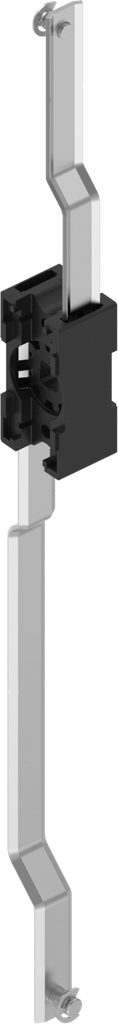

Rod control for flat rods, Polyamide black and stainless steel; 1121-U178-C

https://www.emka.com/products/1121-u178-c-rod-control-for-flat-rods-polyamide-black-and-stainless-steel-64546 https://www.emka.com/web/image/product.template/64546/image_1920?unique=2b0d38d

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right

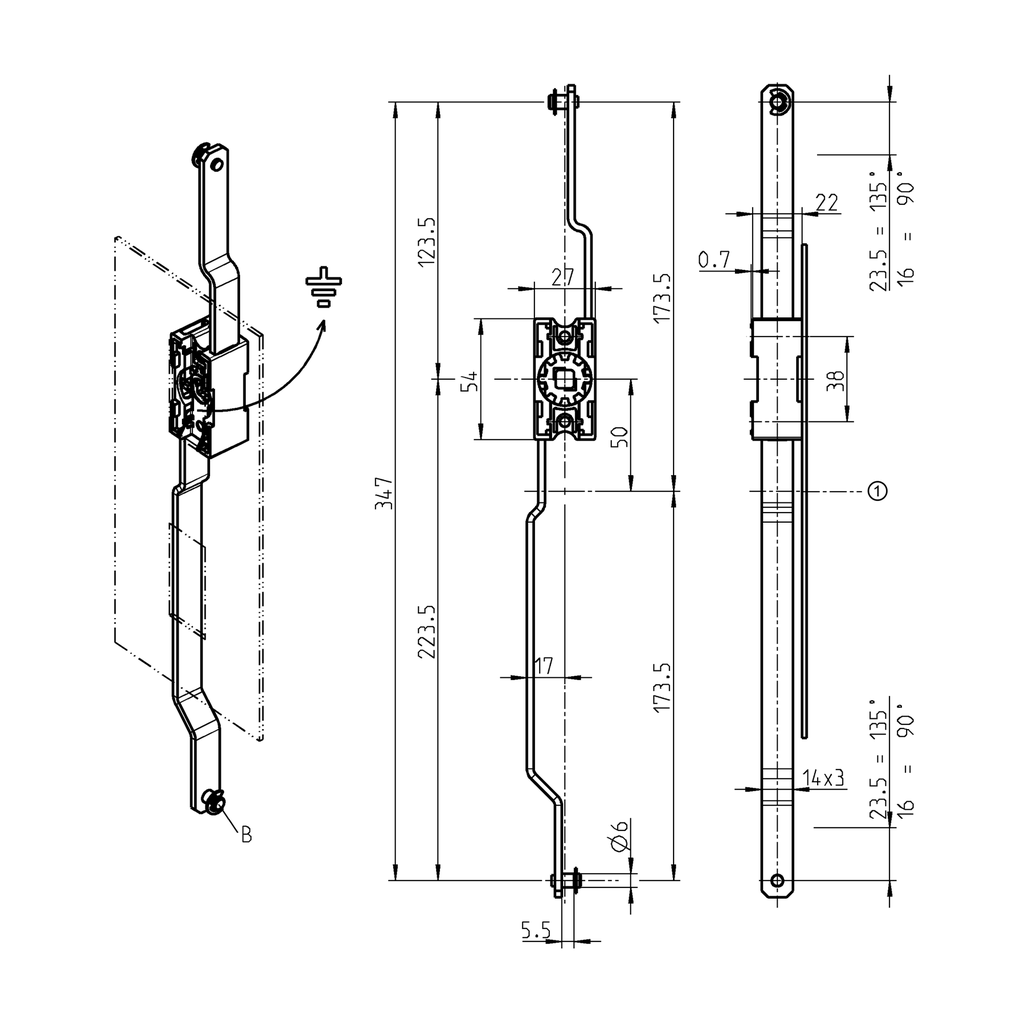

    Product information:

    ① = Center cut out

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U178-C
    Barcode: 1121-U00178-000000c
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-120
    Material of the module : Polyamide black and stainless steel
    Rod: Flat rod
    Connection rod mount: Rivet Ø 6 with circlip
    Article with property rights: Yes
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod

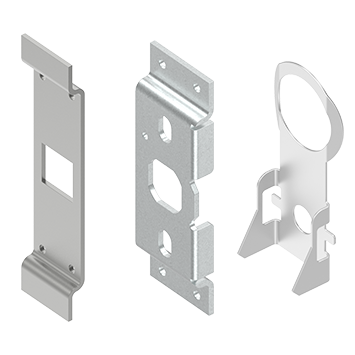

    Rod control accessories
