Product information:

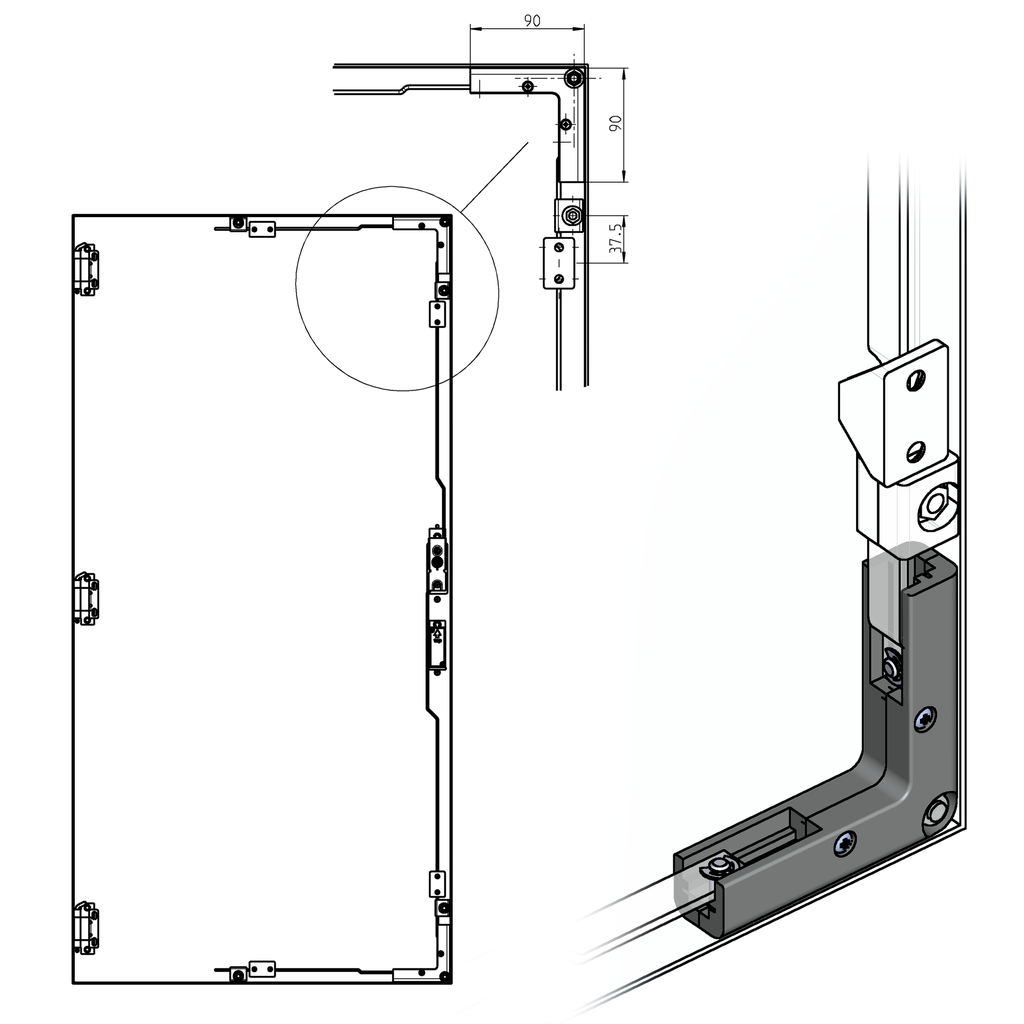

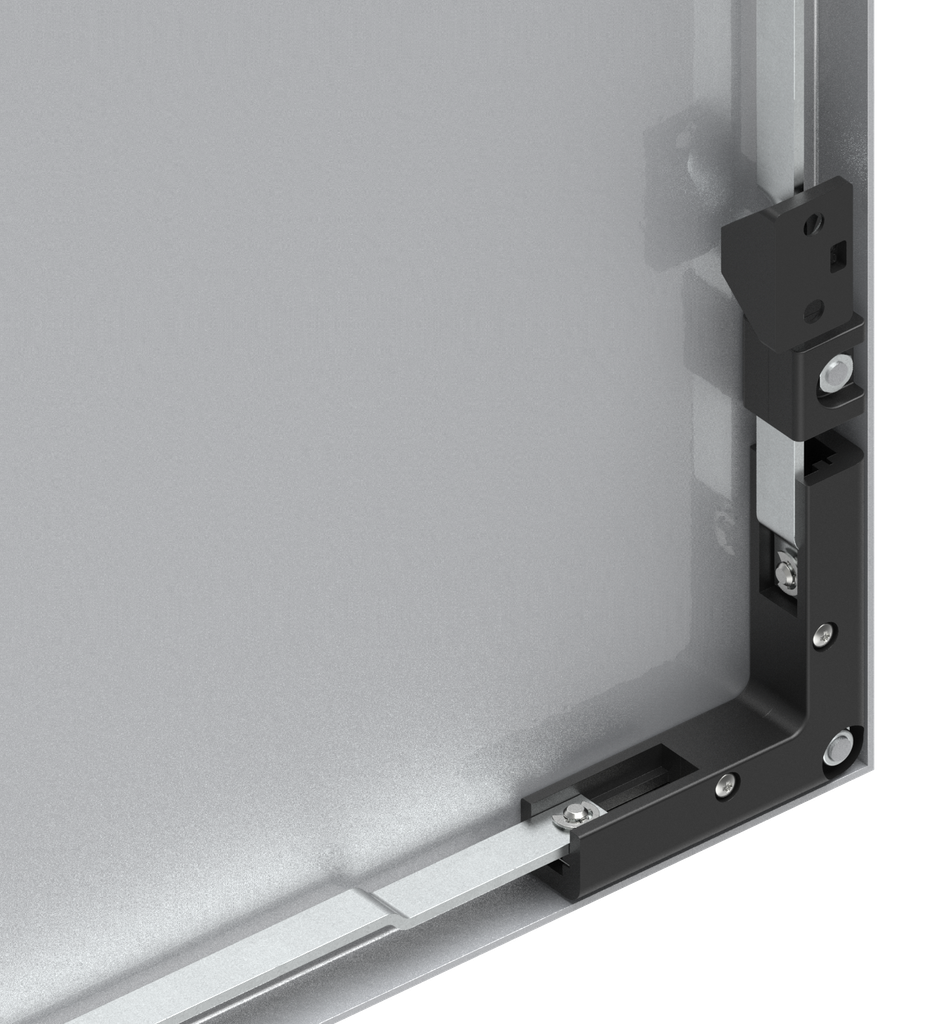

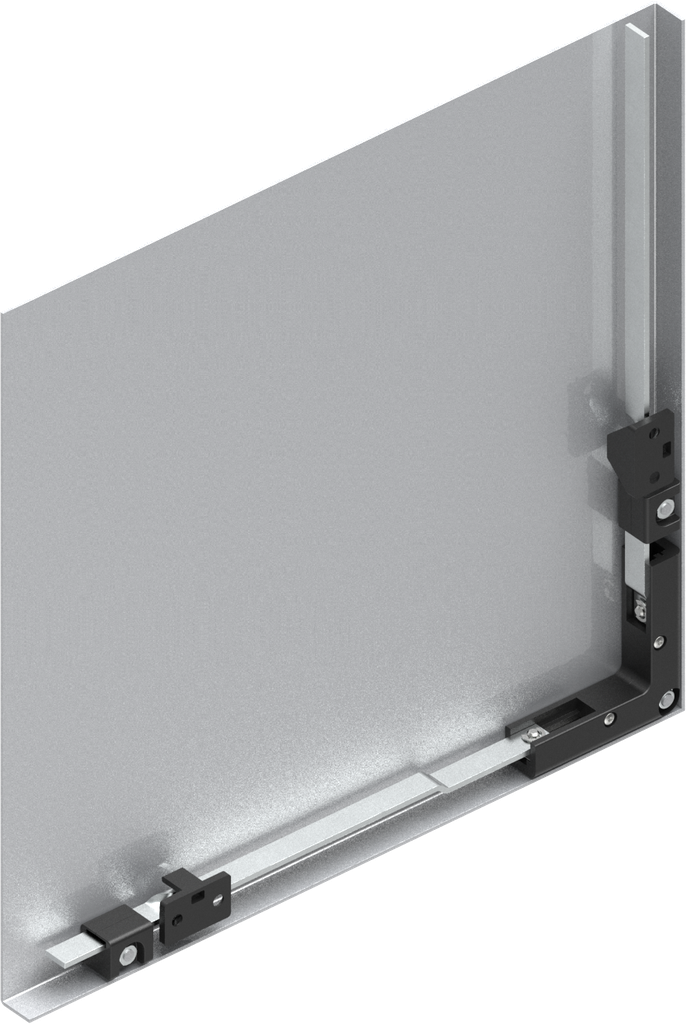

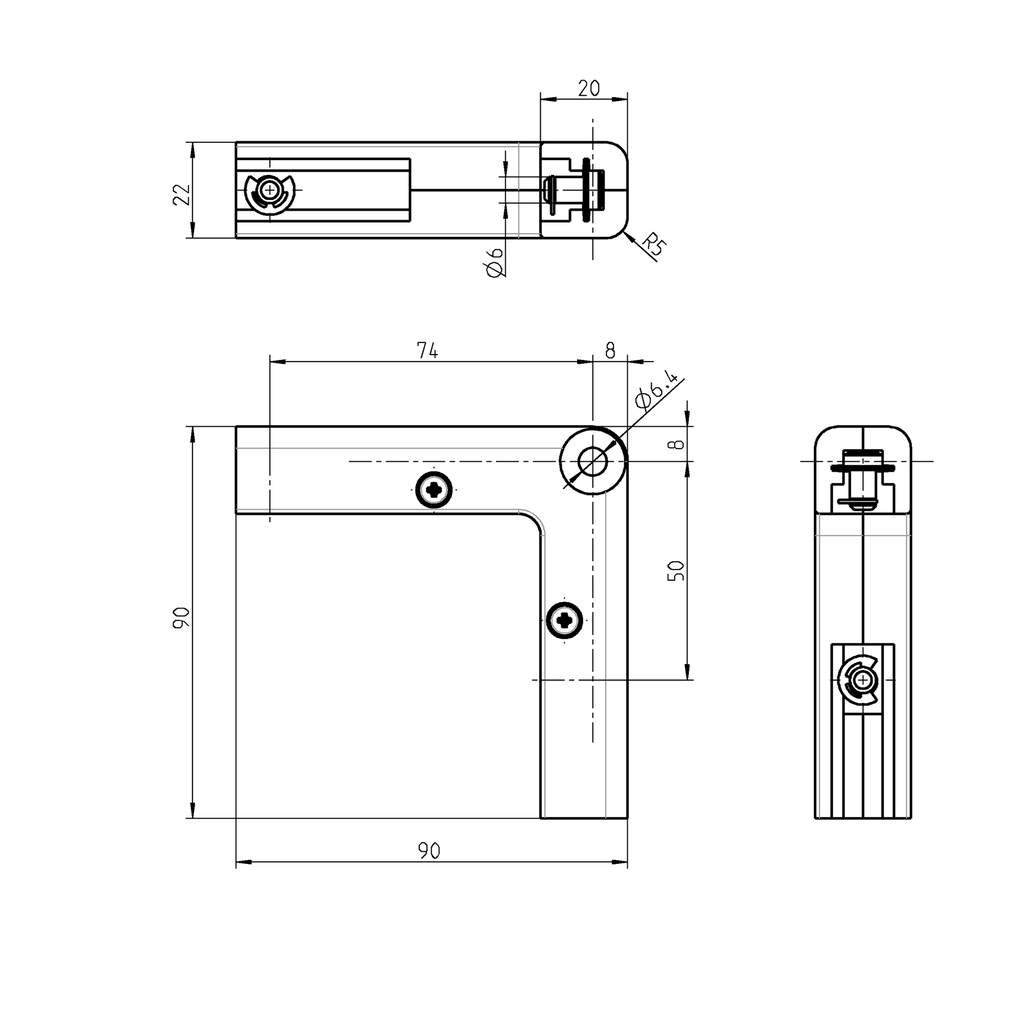

Fixing of the 90° turn for weld stud M6x20
Rods suitable for Programs 1125, 1150, 1160, 1180, 1190, 1225, 1325, 2100, 2400 and 3000 customisable on request.
Internal Reference:
1121-U170
Barcode:
1121-U00170-0000000
Product Type:
Rod
Program:
1121
Material of the module :
Polyamide GF
Surface of the module:
black
Adapter for connecting rod:

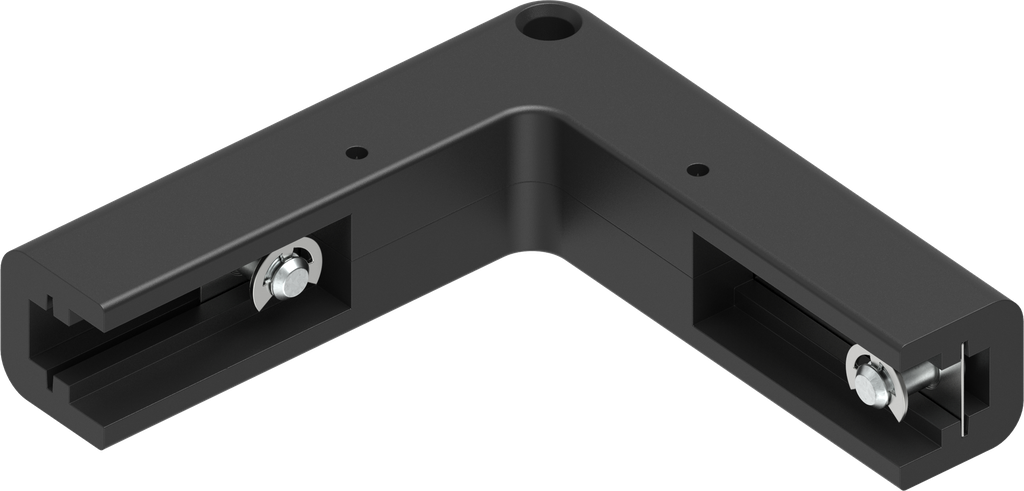

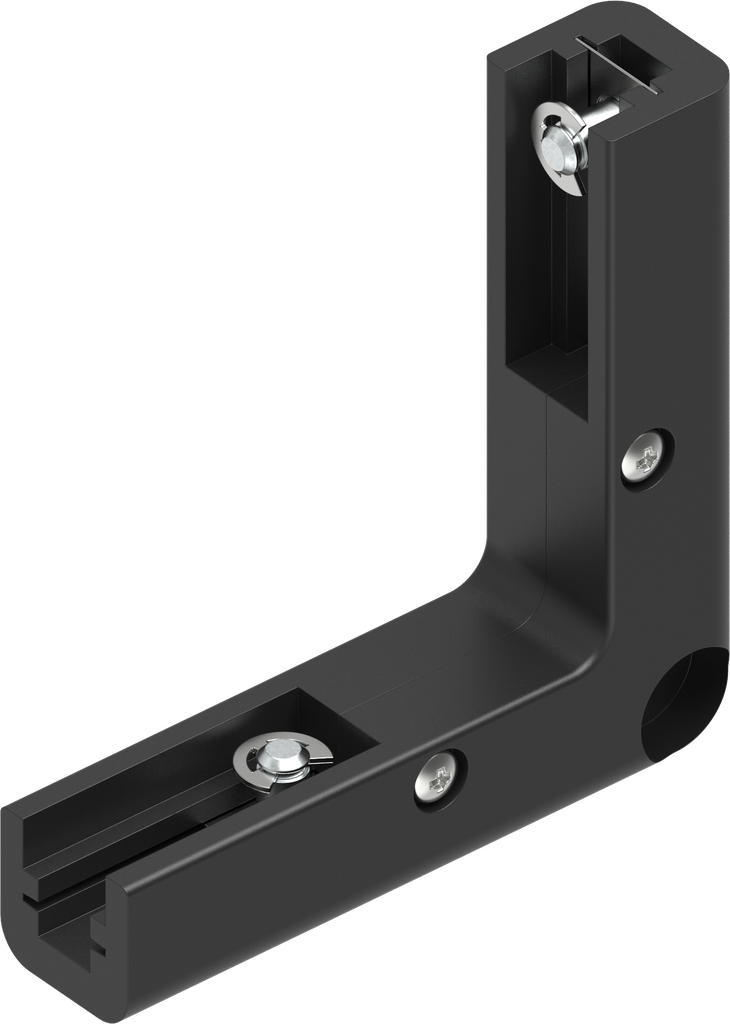

90° turn for flat rods / rods
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points, 4 point, More than 4 points available on request
Mounting Positions :
Outside the sealing
