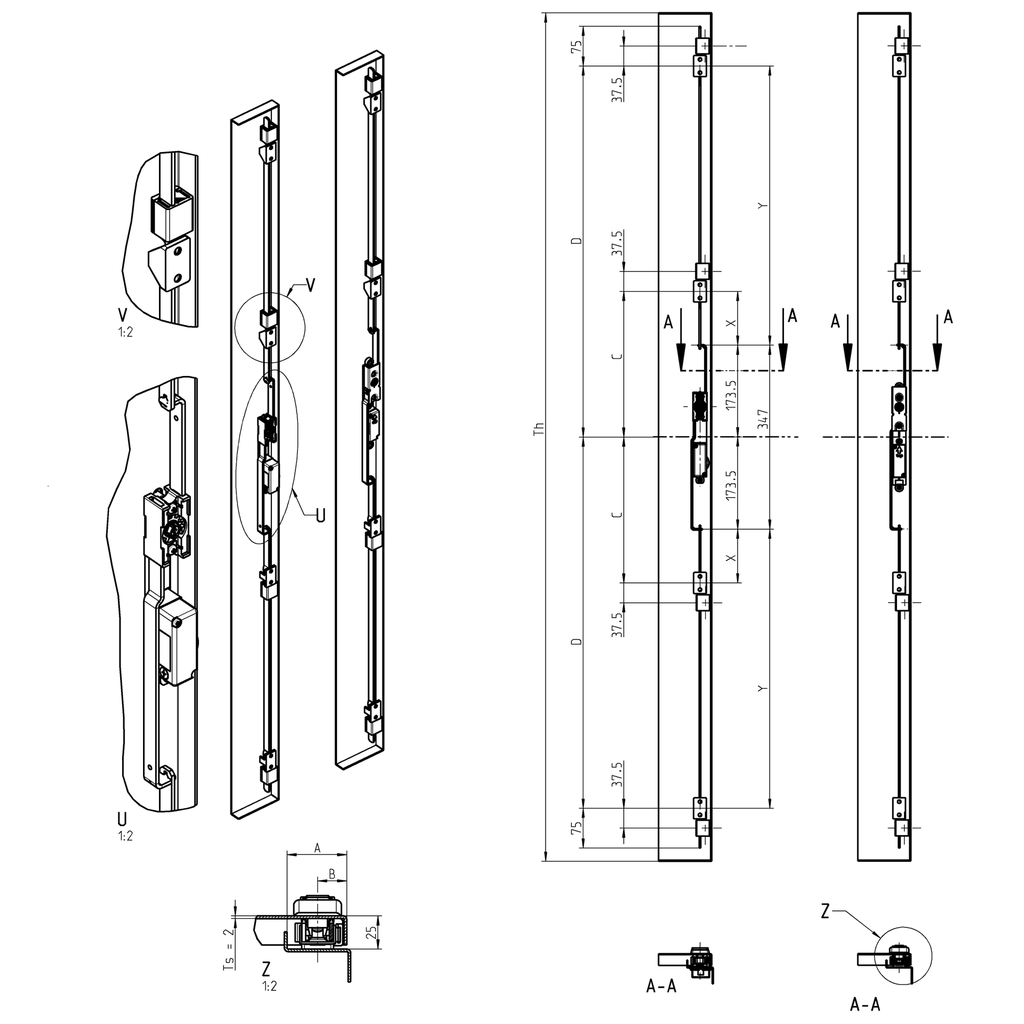

Flat rod with double roller for catch with catch bracket and extended catch area, Steel zinc-plated; 1121-U164-01

https://www.emka.com/products/1121-u164-01 https://www.emka.com/web/image/product.template/64542/image_1920?unique=536f87e

    This combination does not exist.

    Outside the sealing
    Contact Us
    Internal Reference: 1121-U164-01
    Product Type: Rod
    Program: 1121
    Catalog sheet: 3ZA-1210
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 1 point
    C Dimension: 275
    D Dimension: 850
    Mounting Positions : Outside the sealing

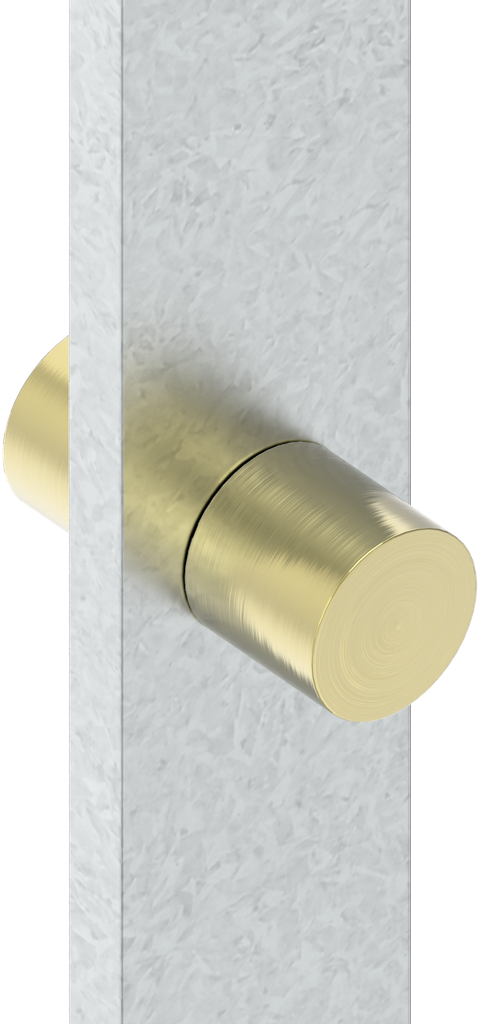

    Flat Bar Outside: Flat rod with double roller
    For Door Height: 1900-2200
    Dimension L: 751.50 mm
    X-Dimension: 101.5
    Y-Dimension: 676.5
    No Specifications
