Flat rod with double roller, Steel zinc-plated
Flat rod with double roller, Steel zinc-plated
Flat rod with double roller, Steel zinc-plated
Flat rod with double roller, Steel zinc-plated

Flat rod with double roller, Steel zinc-plated; 1121-U161

https://www.emka.com/products/1121-u161 https://www.emka.com/web/image/product.template/64540/image_1920?unique=b02075a

    This combination does not exist.

    Outside the sealing
    Contact Us
    Internal Reference: 1121-U161
    Product Type: Rod
    Program: 1121
    Catalog sheet: 3ZA-260
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Outside the sealing, top or bottom
    Number of Possible Locking Points: 2 points
    Article with property rights: Yes

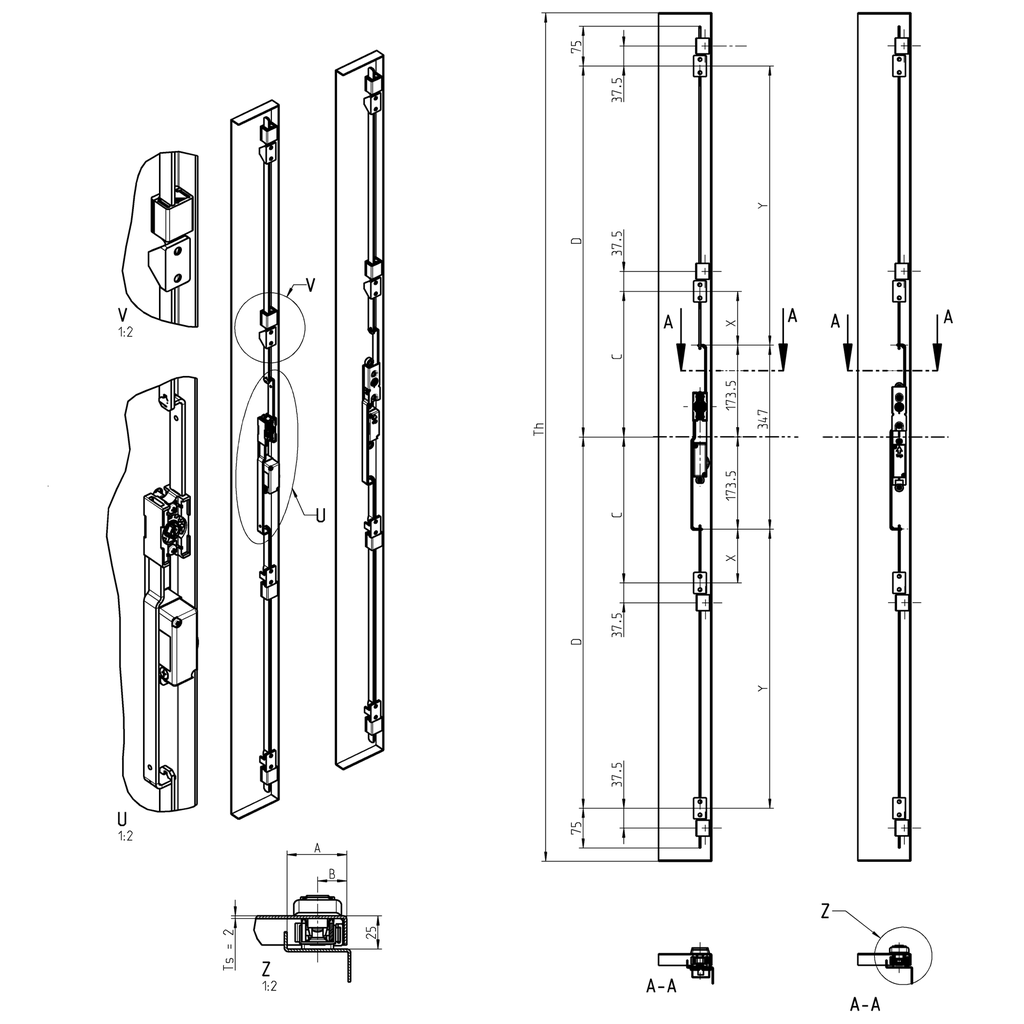

    C Dimension: 275
    D Dimension: 700
    Mounting Positions : Outside the sealing

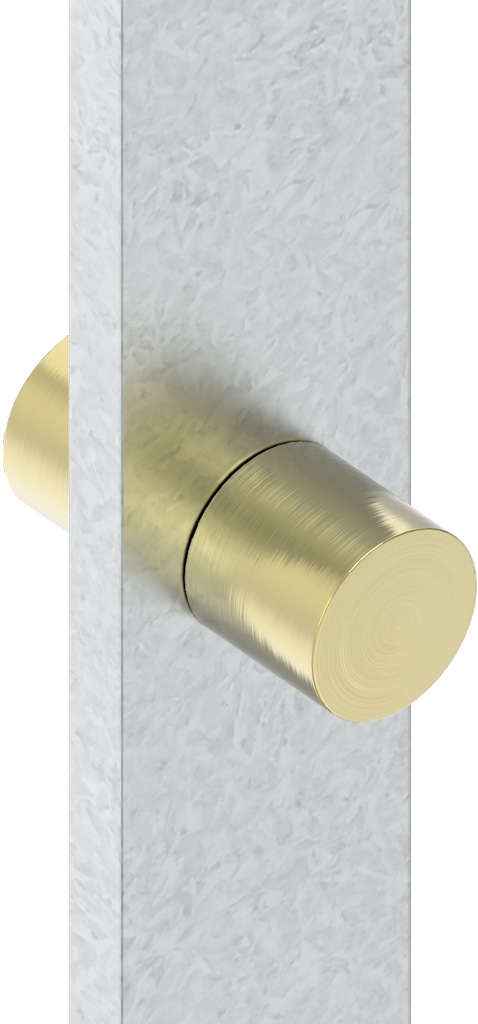

    Flat Bar Outside: Flat rod with double roller
    For Door Height: 1600-1900
    X-Dimension: 101.5
    Y-Dimension: 526.5
    No Specifications
    View All Products
    Rod guide
    Catch
    Rod control
    Here you can find the product data sheets and CAD files of this product
