Flat rod with double roller for catch with catch bracket and extended catch area, Steel zinc-plated
Flat rod with double roller for catch with catch bracket and extended catch area, Steel black
Flat rod with double roller for catch with catch bracket and extended catch area, Steel zinc-plated; 1121-U158-01
Product information:

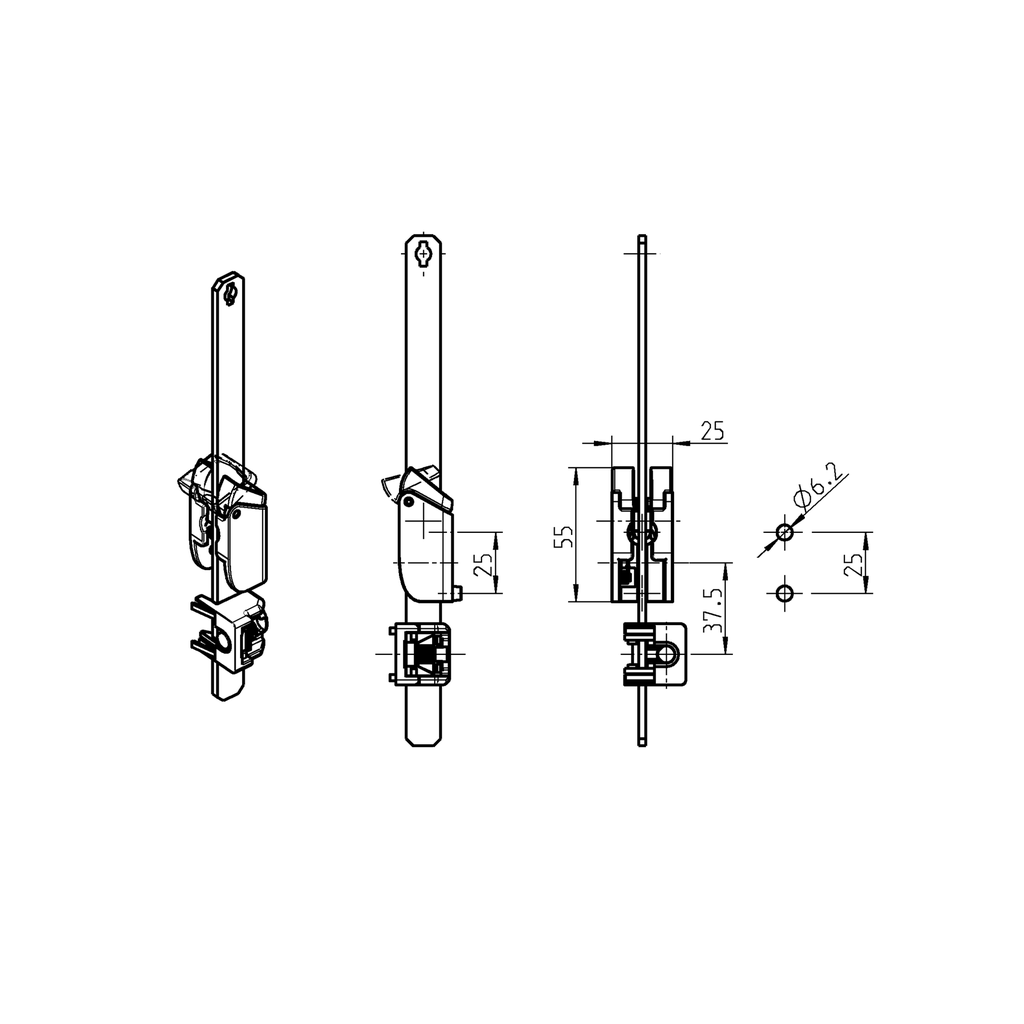

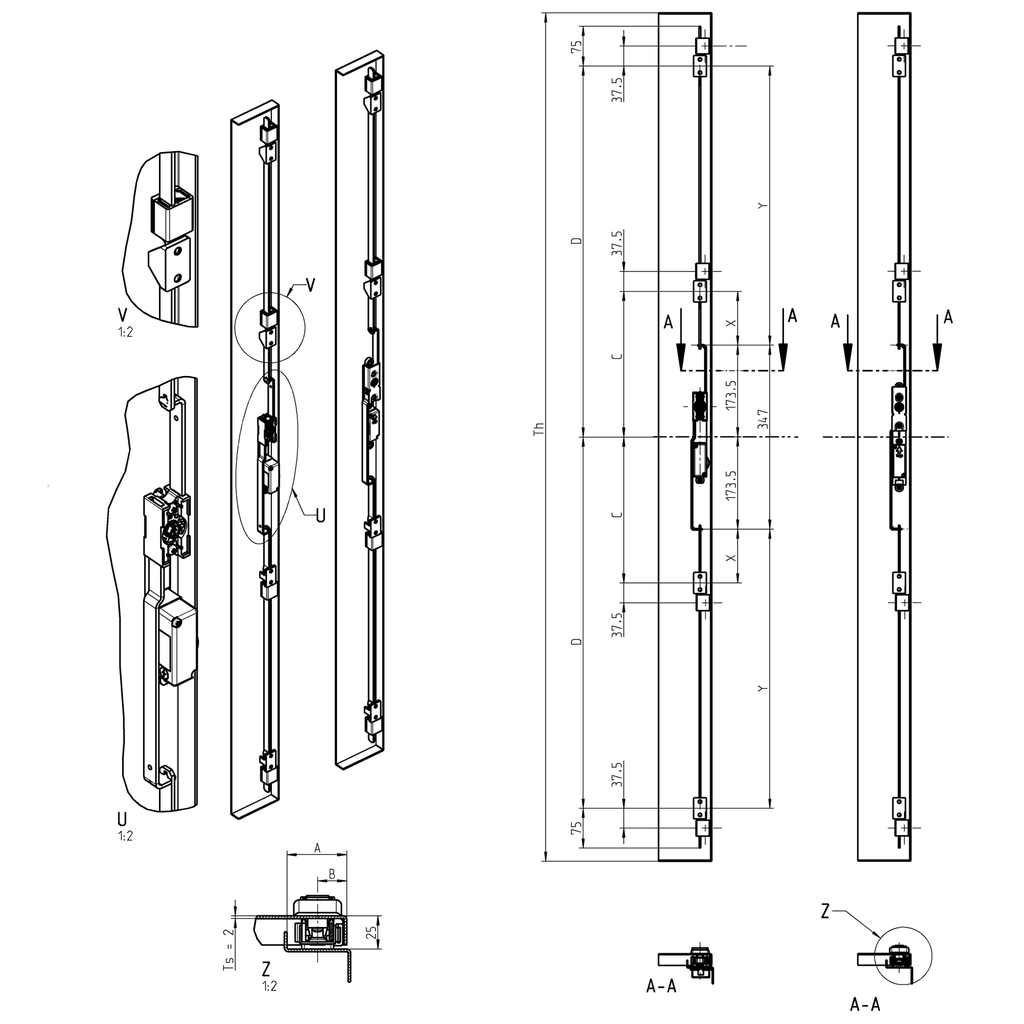

② = Flat rod with double roller for catch with catch bracket
③ = Catch bracket
④ = Rod guide
This flat rod can only be used together with the catch with catch bracket
Internal Reference:
1121-U158-01
Product Type:
Rod
Program:
1121
Catalog sheet:
3ZA-1210
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
1 point
C Dimension:
D Dimension:
450
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with double roller
For Door Height:
1200-1600
X-Dimension:
Y-Dimension:
276.5
No Specifications
