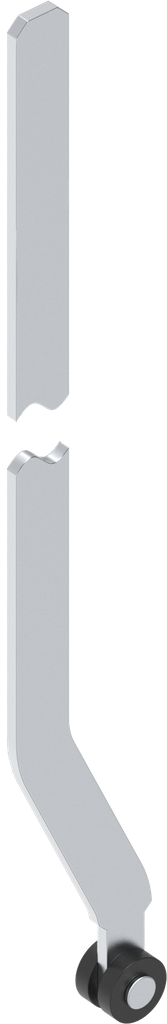

Flat rod without bore hole L = 1007.5 mm, Steel zinc-plated; 1121-U148

https://www.emka.com/products/1121-u148 https://www.emka.com/web/image/product.template/64535/image_1920?unique=c64dfbb


    This combination does not exist.

    Inside the sealing


    Product information:

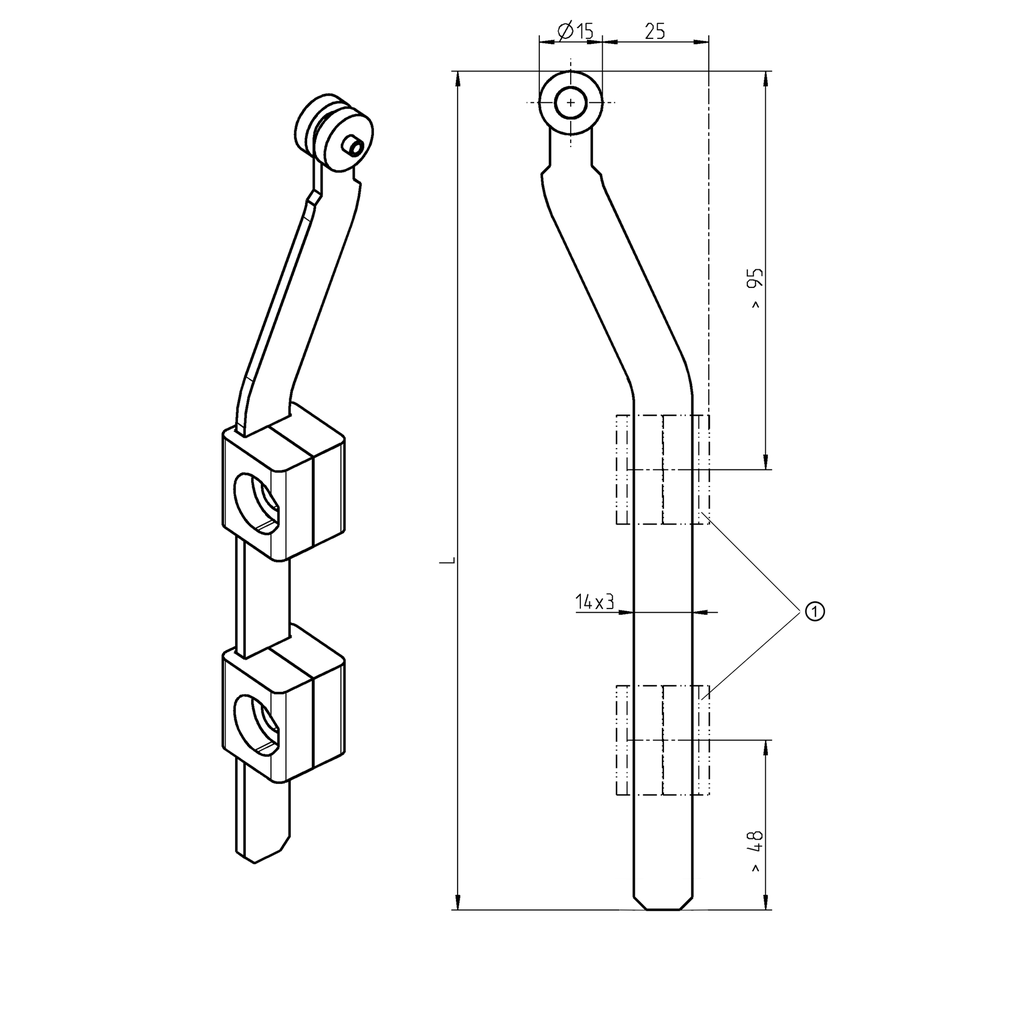

    ① = Rod guide

    Internal Reference: 1121-U148
    Product Type: Rod
    Program: 1121
    Catalog sheet: 3ZB-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Connecting rod position: Inside the sealing, top or bottom
    Mounting Positions : Inside the sealing
    Flat Bar Inside: Flat rod with roller for rod control
    Dimension L: 1007.50 mm
    No Specifications
    View All Products
    Rod guide
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3ZB-120
    Product data sheet
    CAD file | 1121-U148_igs
    CAD file | 1121-U148_stp
