Flat rod L = 601 - 700 mm, left version, Steel zinc-plated
Flat rod L = 801 - 900 mm, left version, Steel zinc-plated
Flat rod L = 701 - 800 mm, left version, Steel zinc-plated; 1121-U146-04
No stock item, please ask for availability
Product information:

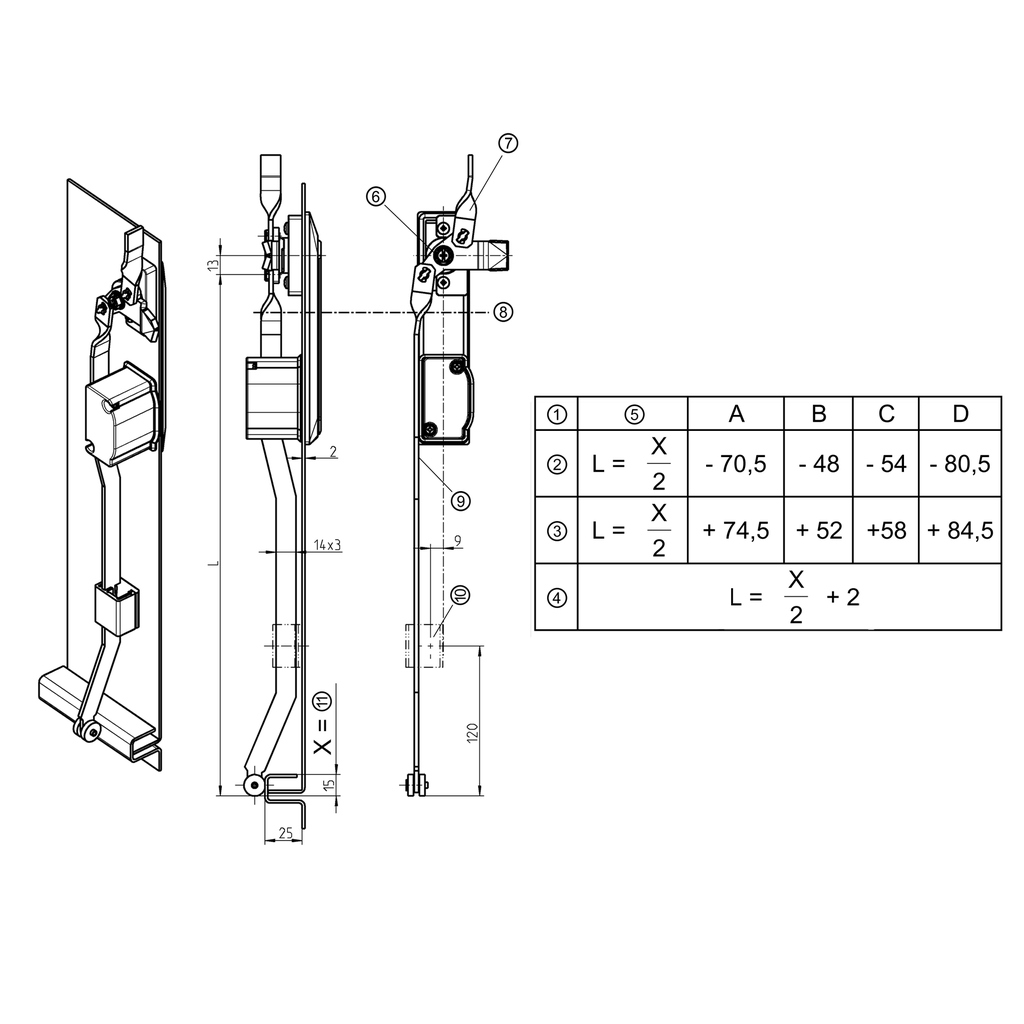

Drawing shown in mirror image ① = Calculation of rod length L ② = Rod, top ③ = rod, bottom ④ = Centre of rotation at door centre, top and bottom same rod length ⑤ = Formula ⑥ = Centre of rotation ⑦ = Rod, top ⑧ = Door centre and clear height ⑨ = Rod, bottom ⑩ = Rod guide ⑪ = Clear height A = Double cylinder swinghandle program 1125, swinghandle program 1151 catalogue page 3C-420, swinghandle program 1154 catalogue page 3C-280 B = Swinghandle program 1153 catalogue page 3C-320, swinghandle program 1154 catalogue page 3C-220C C = Swinghandle program 1154 catalogue page 3C-260 D = Double cylinder swinghandle program 1225 Ts = 2 mm, other door thicknesses on requestOrder / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U146-L 1034
Internal Reference:
1121-U146-04
Barcode:
1121-U00146-0000004
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
800 mm
Dimension L from:
701 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
