Flat rod L = 1101 - 1200 mm, Steel zinc-plated
Flat rod L = up to 500 mm, left version, Steel zinc-plated

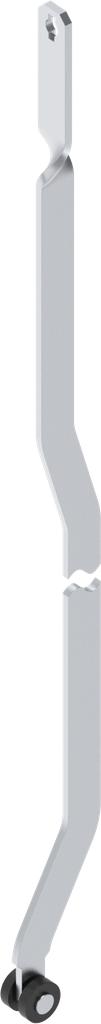

Flat rod L = 1401 - 1500 mm, Steel zinc-plated; 1121-U145-11
No stock item, please ask for availability
Product information:

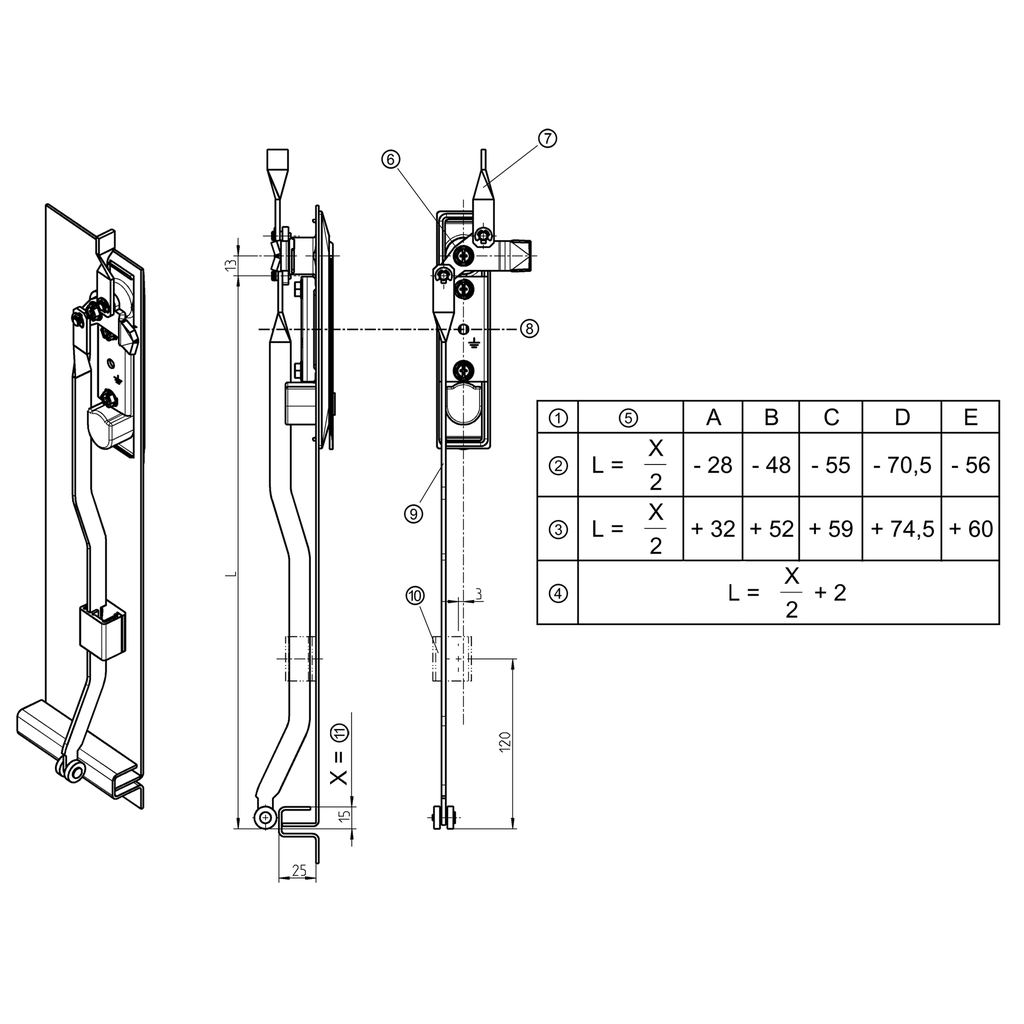

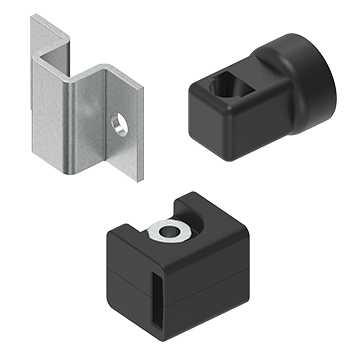

① = Calculation of rod length L ② = Rod, top ③ = rod, bottom ④ = Centre of rotation at door centre, top and bottom same rod length ⑤ = Formula ⑥ = Centre of rotation ⑦ = Rod, top ⑧ = Door centre and clear height ⑨ = Rod, bottom ⑩ = Rod guide ⑪ = Clear height A = Swinghandle Program 1150 3C-120 B = Swinghandle Program 1150 3C-120; Swinghandle Program 1150 3C-140 Swinghandle Program 1155 3C-620 C = Swinghandle Program 1180 3E-320 D = Swinghandle Program 1185 3E-520 E = Swinghandle Program 2100 3H-320 and 3H-420 Ts = 2 mm, other door thicknesses on requestOrder / Calculation example:
Order number for a flat rod with rollers and a length of 1034 mm = 1121-U145-L 1034
Internal Reference:
1121-U145-11
Barcode:
1121-u00145-0000011
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
1500 mm
Dimension L from:
1401 mm
