Flat rod L = 501 - 600 mm, Steel zinc-plated
Flat rod L = 901 - 1000 mm, Steel zinc-plated

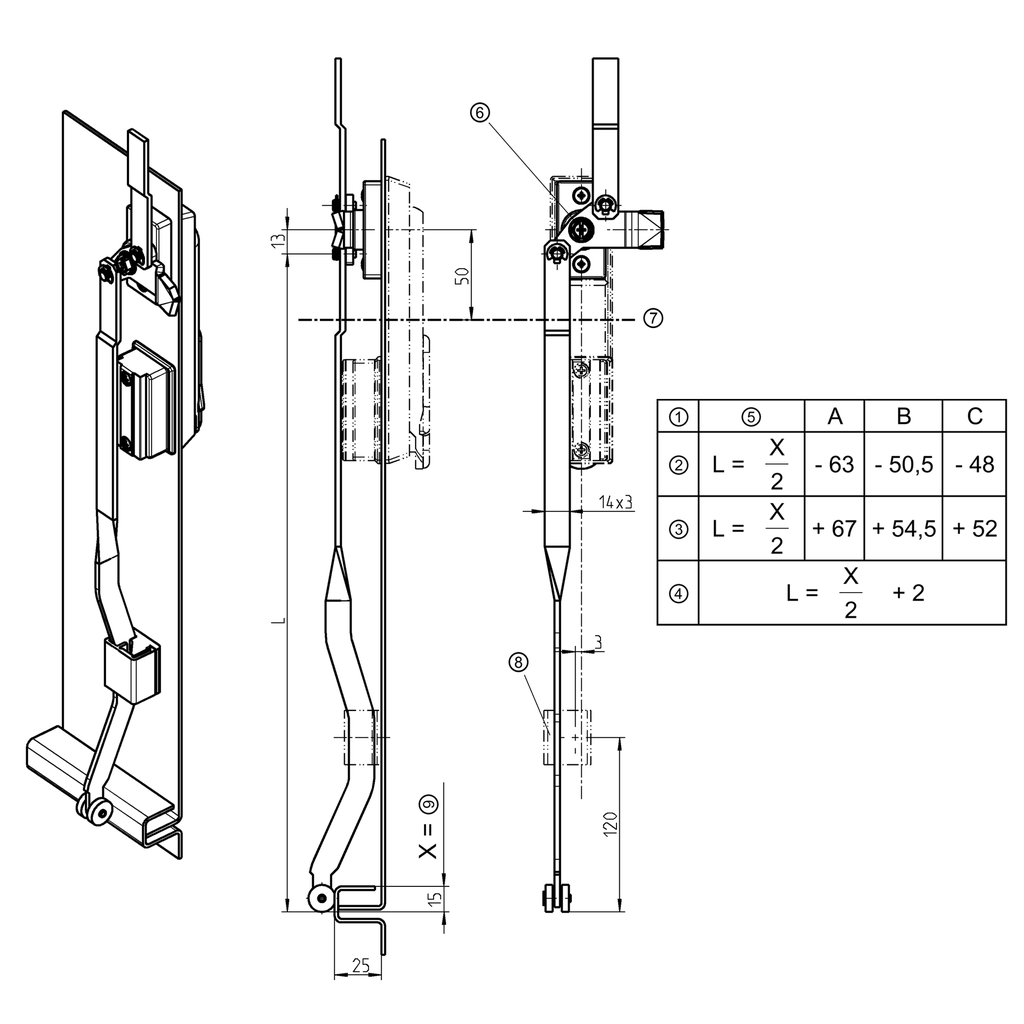

Product information:
① = Calculation of rod length L
② = Rod, top
③ = Rod, bottom
④ = Centre of rotation at door centre, top and bottom same rod length
⑤ = Formula
⑥ = Centre of rotation
⑦ = Door centre and clear height
⑧ = Rod guide
⑨ = Clear height
A = Swinghandle program 1107 and 1317 with cut out
Bore hole distance 130 mm
B = Swinghandle program 1107 and 1317 with cut out
Bore hole distance 105 mm
C = Swinghandle Program 1125, 1225, 1325 and 3000
Ts = 2 mm, other door gauges on request
Internal Reference:
1121-U144-05
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
900 mm
Dimension L from:
801 mm
No Specifications
