Rod control for flat rods, Stainless steel AISI 316
Flat rod L = 501 - 600 mm, Steel zinc-plated
Product information:

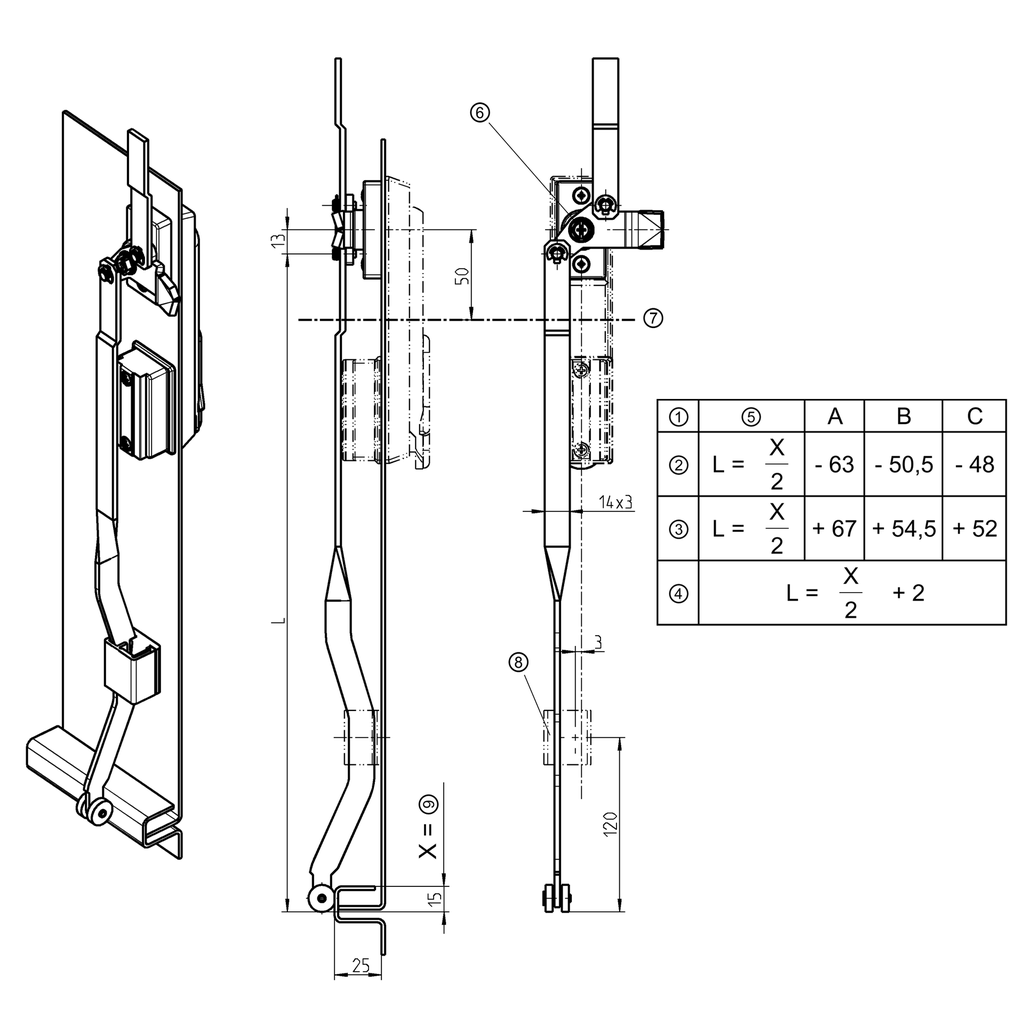

① = Calculation of rod length L
② = Rod, top
③ = Rod, bottom
④ = Centre of rotation at door centre, top and bottom same rod length
⑤ = Formula
⑥ = Centre of rotation
⑦ = Door centre and clear height
⑧ = Rod guide
⑨ = Clear height
Internal Reference:
1121-U144-01
Product Type:
Rod
Program:
1121
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Inside the sealing, top or bottom
Mounting Positions :
Inside the sealing
Flat Bar Inside:
Flat rod with roller for cam
Dimension L up to:
500 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
