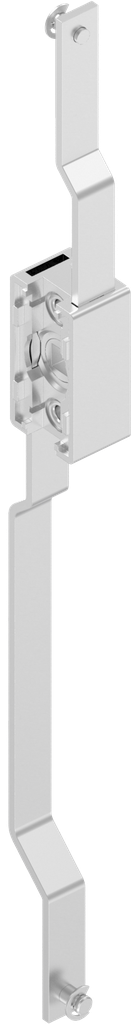

Rod control for flat rods, Stainless steel AISI 316; 1121-U140

https://www.emka.com/products/1121-u140 https://www.emka.com/web/image/product.template/224459/image_1920?unique=6571c05

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

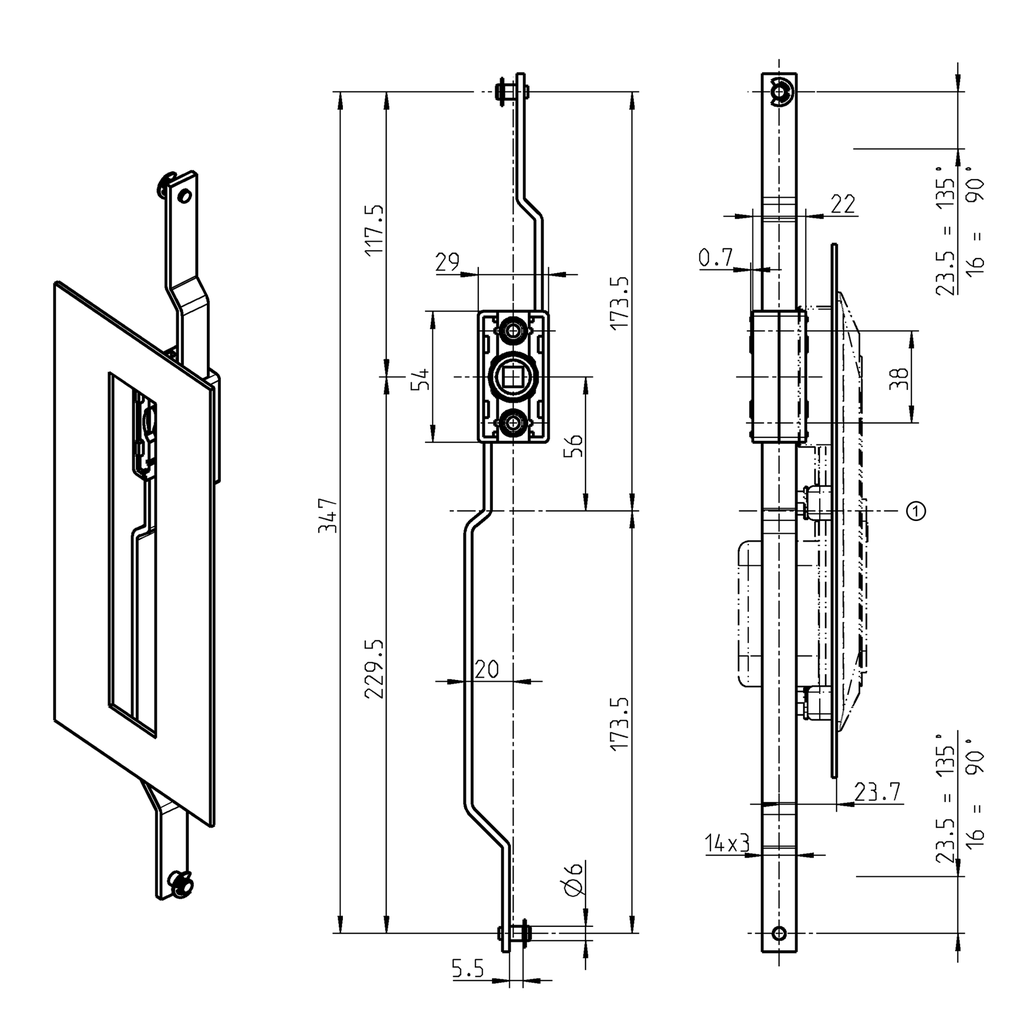

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm

    Akeneo Note:

    Rods on request.
    Internal Reference: 1121-U140
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-440
    Material of the module : Stainless steel AISI 316
    Rod: Flat rod
    Connection rod mount: Rivet Ø 6 with circlip
    Mounting Positions : Inside the sealing
    Door Version : Left,Right
    No Specifications
    View All Products
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-440
    Product data sheet
    CAD file | 1121-U140_igs
    CAD file | 1121-U140_stp
