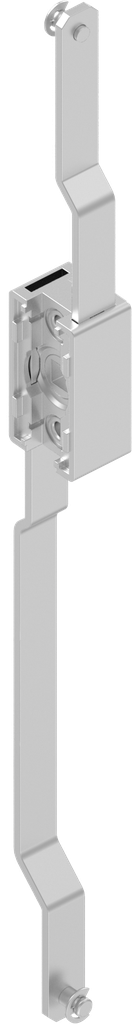

Rod control for flat rods, Stainless steel AISI 316; 1121-U139

https://www.emka.com/products/1121-u139 https://www.emka.com/web/image/product.template/64533/image_1920?unique=995746c

    This combination does not exist.

    Inside the sealing Outside the sealing Left Right
    Contact Us

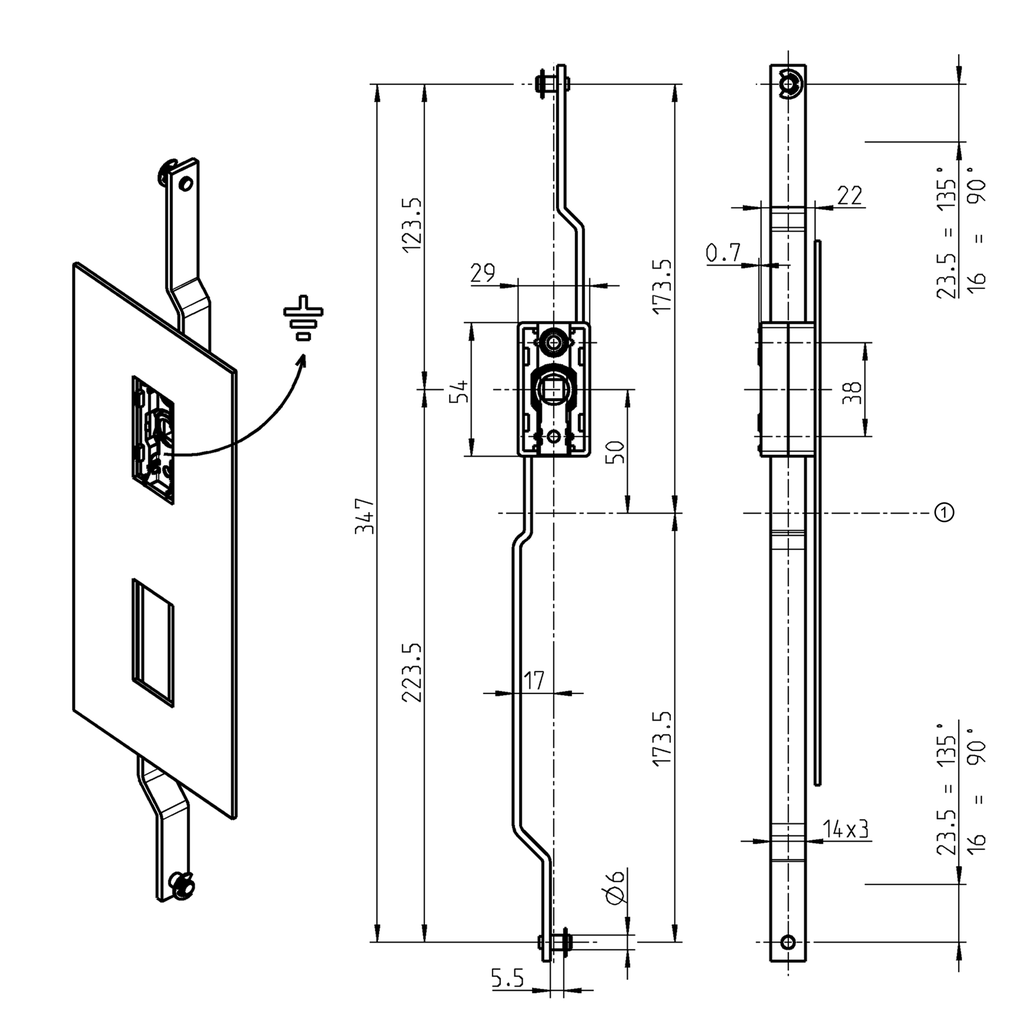

    Function:

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U139
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-120
    Material of the module : Stainless steel AISI 316
    Rod: Flat rod
    Connection rod mount: Rivet Ø 6 with circlip
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam

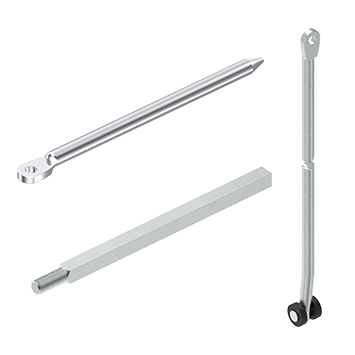

    Rod
    Rod control accessories

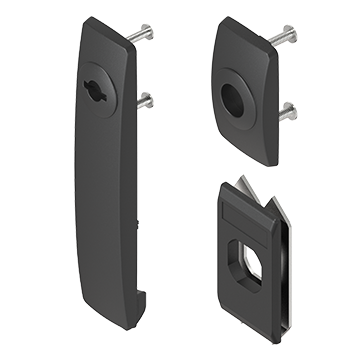

    Escutcheon
    Adapter
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3YA-120
    Product data sheet
    CAD file | 1121-U139_igs
    CAD file | 1121-U139_stp
