Catch for flat rod with torsion, Zinc die black powder-coated
Catch for flat rod with torsion, Zinc die black powder-coated
Rod control for flat rods, Stainless steel AISI 316
Rod control for flat rods, Stainless steel AISI 316

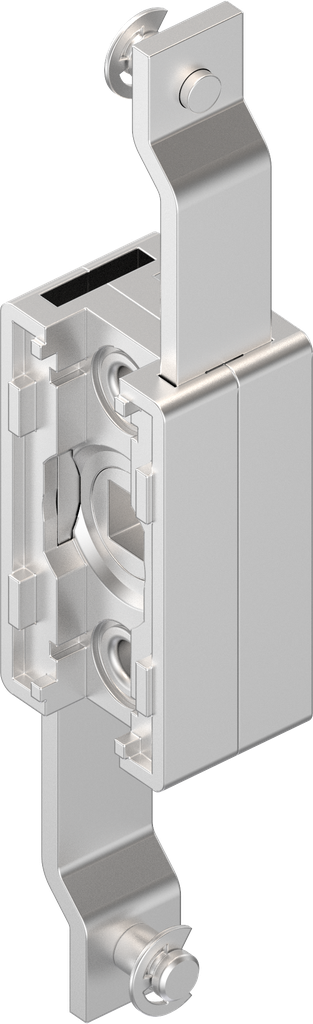

Rod control for flat rods or round rods, Stainless steel AISI 316; 1121-U138

https://www.emka.com/products/1121-u138 https://www.emka.com/web/image/product.template/64532/image_1920?unique=f86255a

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us

    Function:

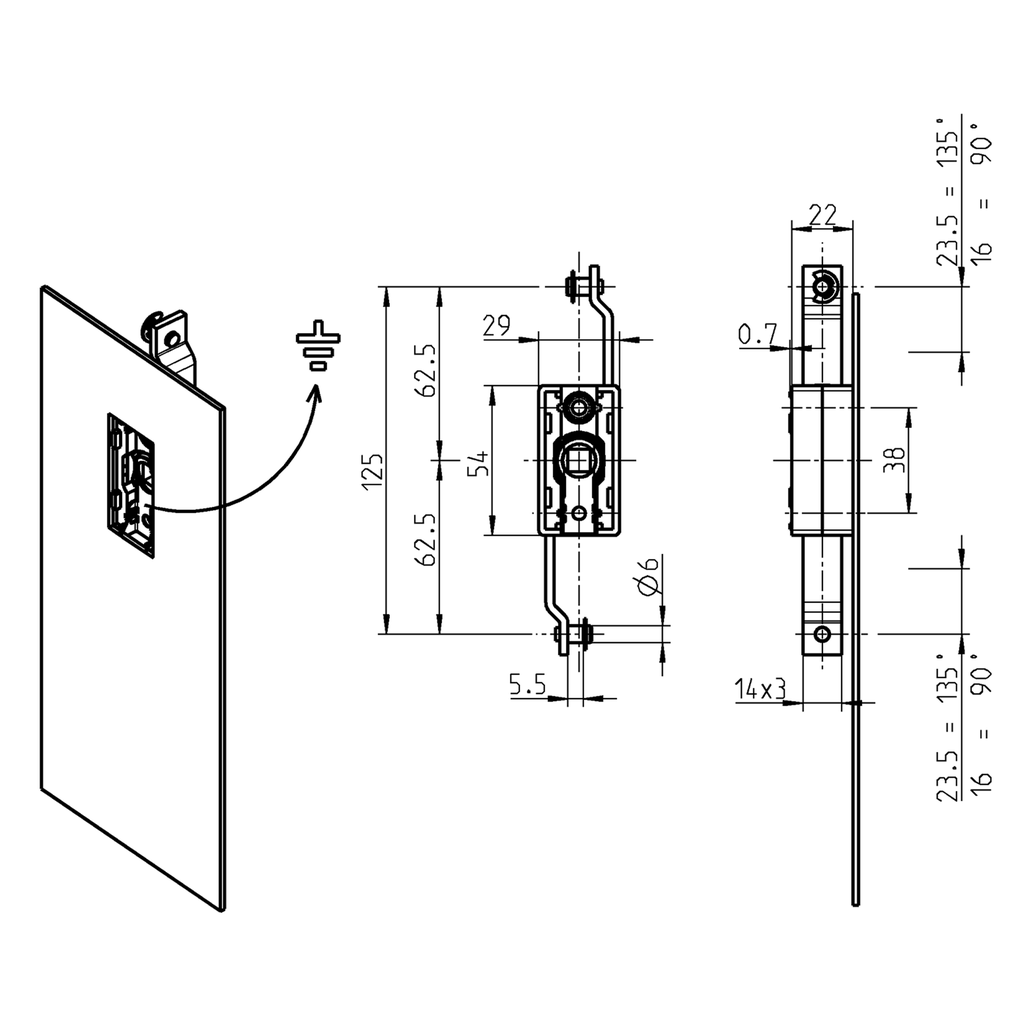

    Turn 135° = Stroke 23.5 mm
    Turn 90° = Stroke 16 mm
    Internal Reference: 1121-U138
    Product Type: Rod control
    Program: 1121
    Catalog sheet: 3YA-160
    Material of the module : Stainless steel AISI 316
    Rod: Flat rod,Round rod
    Connection rod mount: Rivet Ø 6 with circlip
    Mounting Positions : Inside the sealing
    Grounding device possible: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Cam
    Rod

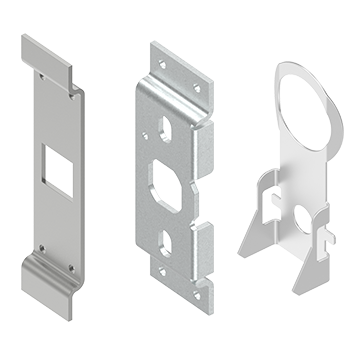

    Rod control accessories
    Escutcheon
    Adapter
    Here you can find the product data sheets and CAD files of this product
