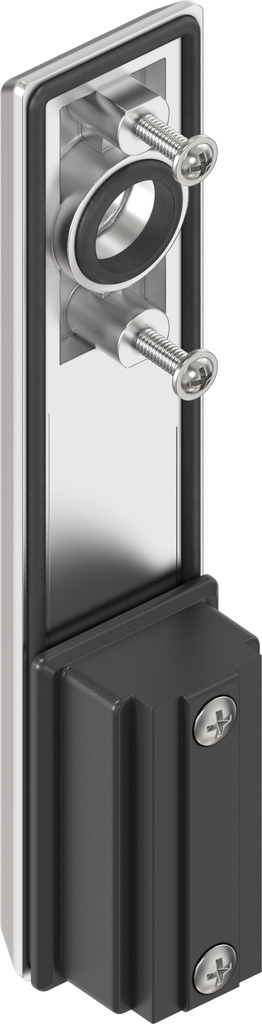

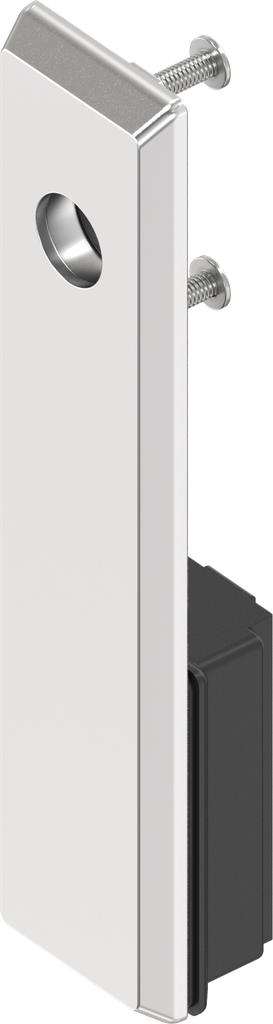

Escutcheon long for square, triangular, Daimler Benz and slot, Stainless steel AISI 316; 1121-U133-06PH

https://www.emka.com/products/1121-u133-06ph https://www.emka.com/web/image/product.template/224455/image_1920?unique=0705b63

    This combination does not exist.

    Inside the sealing Outside the sealing Grounding possible Foamed seal Protection class IP 65
    Contact Us
    Internal Reference: 1121-U133-06PH
    Product Type: Escutcheon
    Program: 1121
    Catalog sheet: 3B-120
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, More than 4 points available on request
    Mounting Positions : Inside the sealing,Outside the sealing
    Grounding possible: Yes
    Foamed gasket: Yes
    Locking means key tag: Insert square, triangular, Daimler Benz, slot, etc.
    Key Tag Size: long
    Door thickness: 2 mm
    Locking components: Rod control,Bearing bush with cam
    No Specifications
    View All Products
    Insert
    Rod control
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 3B-120
    CAD file | 1121-U133-06PH_igs
    CAD file | 1121-U133-06PH_stp
