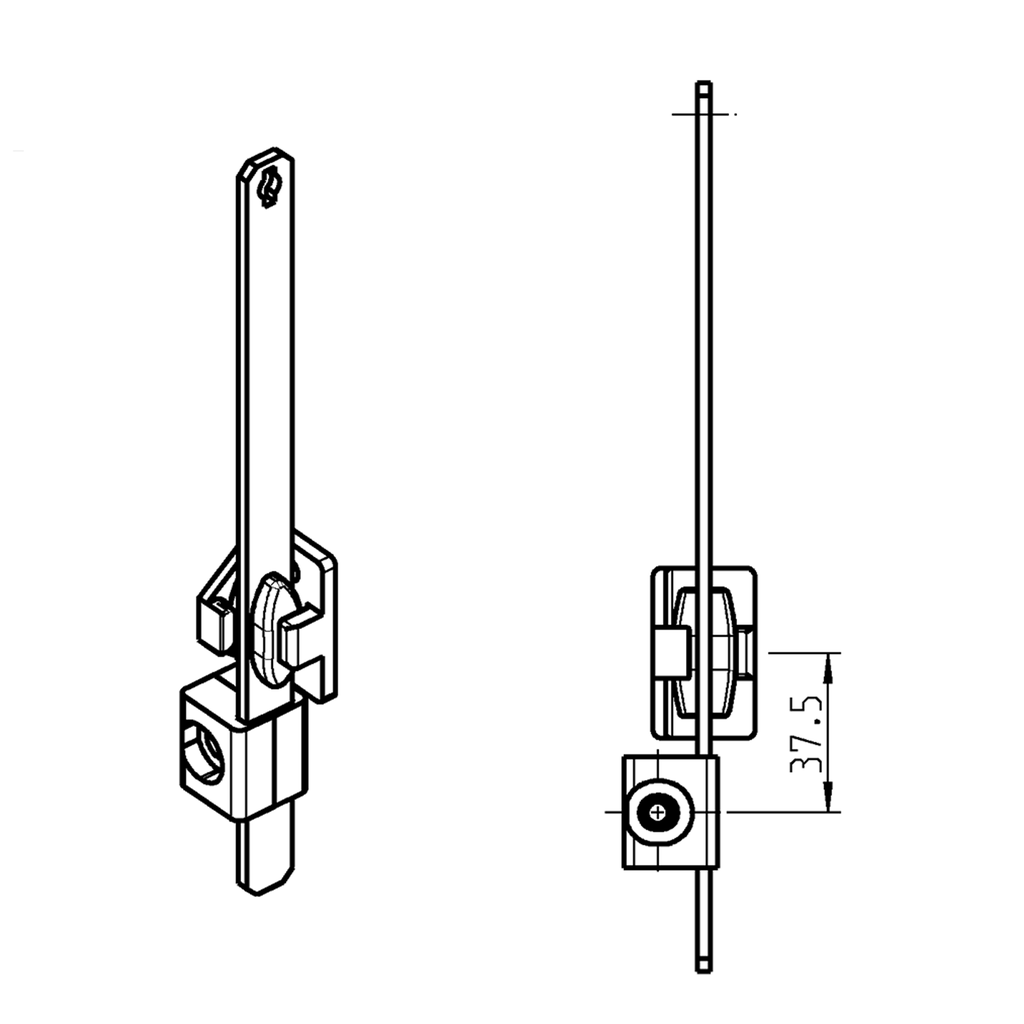

Flat rod with locking slider , Steel zinc-plated; 1121-U111
Internal Reference:
1121-U111
Product Type:
Rod
Program:
1121
Catalog sheet:
3ZA-220
Material of the module :
Steel
Surface of the module:
zinc-plated
Connecting rod position:
Outside the sealing, top or bottom
Number of Possible Locking Points:
2 points
Article with property rights:
Yes

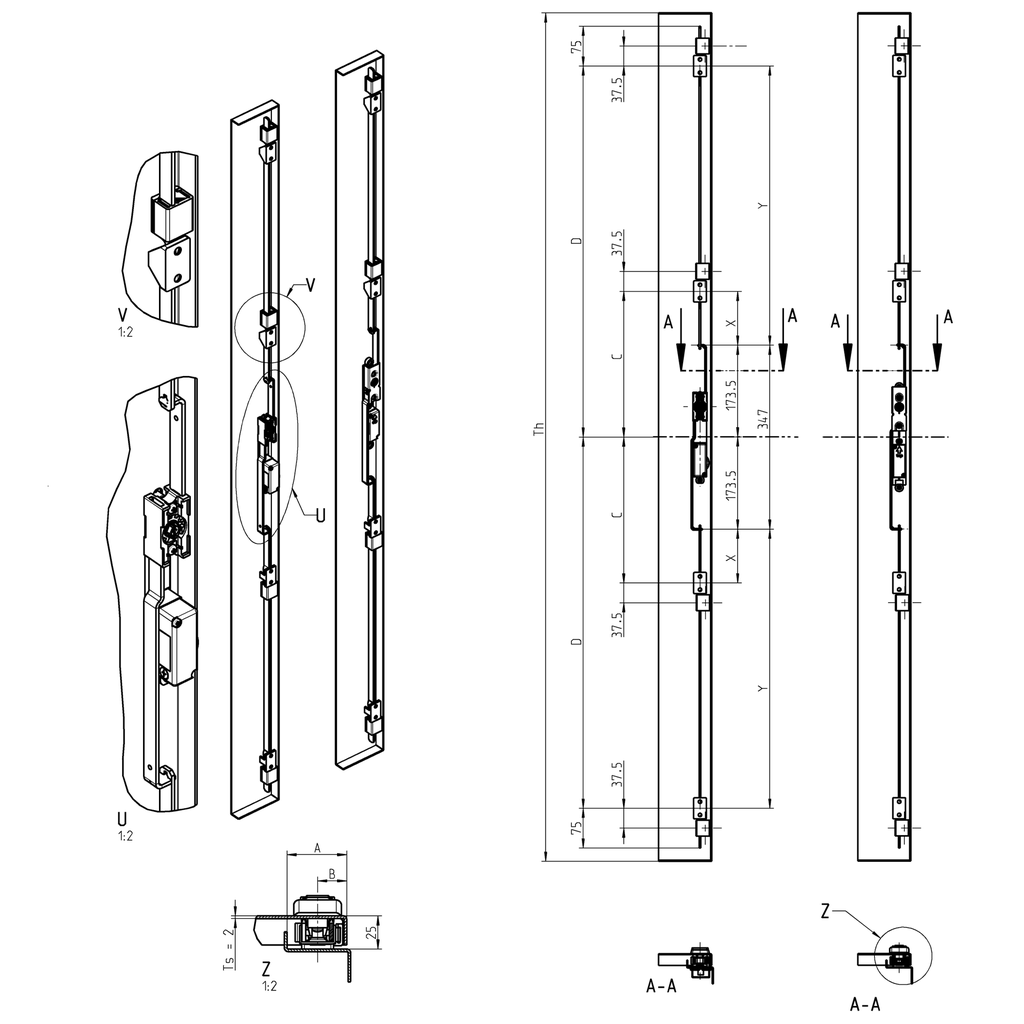

C Dimension:
275
D Dimension:
700
Mounting Positions :
Outside the sealing
Flat Bar Outside:
Flat rod with locking slider
For Door Height:
1600-1900
X-Dimension:
101.5
Y-Dimension:
526.5
No Specifications
